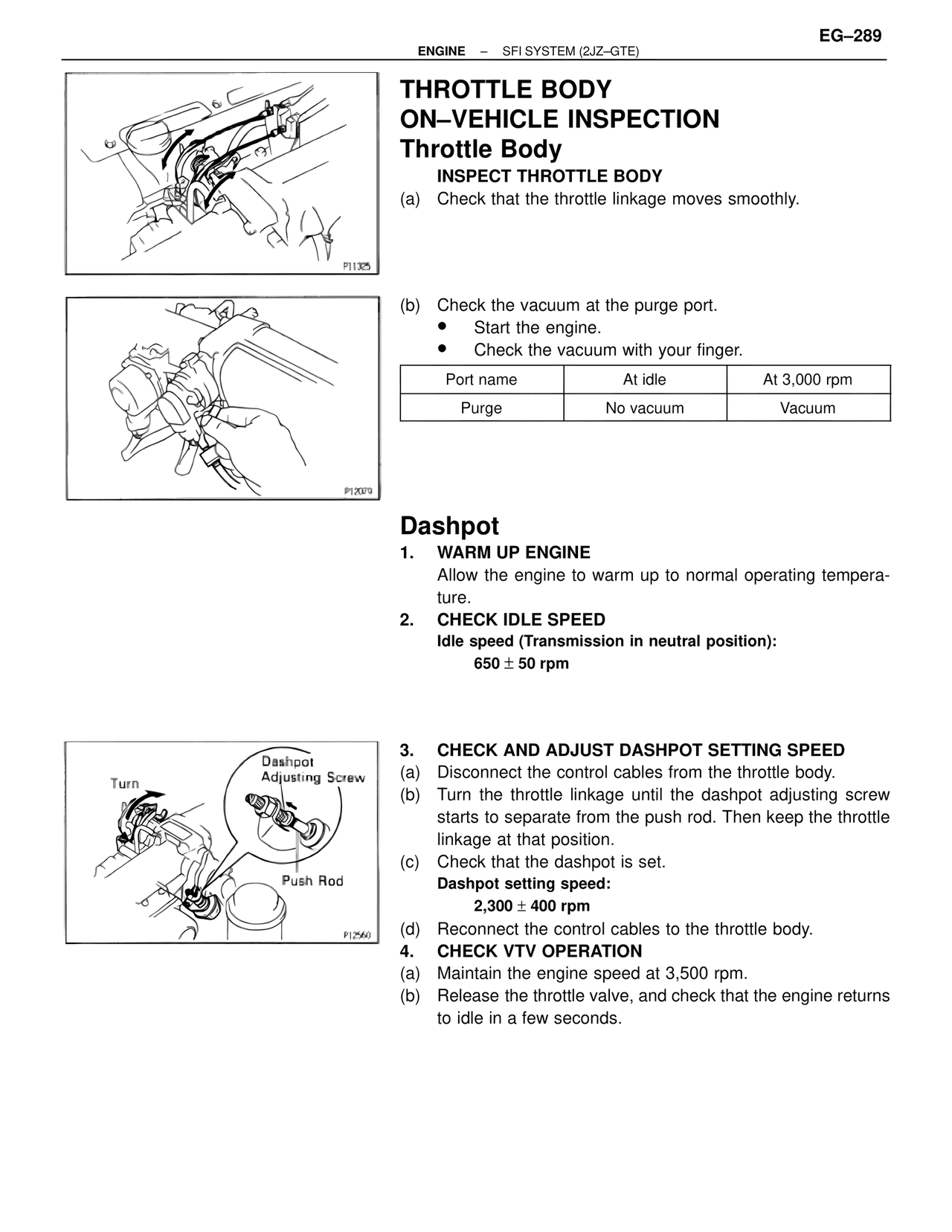

EG–289
ENGINE – SFI SYSTEM (2JZ–GTE)
THROTTLE BODY
ON–VEHICLE INSPECTION
Throttle Body
INSPECT THROTTLE BODY
(a) Check that the throttle linkage moves smoothly.
P11325
(b) Check the vacuum at the purge port.
• Start the engine.
• Check the vacuum with your finger.
Port name | At idle | At 3,000 rpm
Purge | No vacuum | Vacuum
P12079
Dashpot
1. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
2. CHECK IDLE SPEED
Idle speed (Transmission in neutral position):
650 ± 50 rpm
Turn
Dashpot
Adjusting Screw
Push Rod
P12560
3. CHECK AND ADJUST DASHPOT SETTING SPEED
(a) Disconnect the control cables from the throttle body.
(b) Turn the throttle linkage until the dashpot adjusting screw starts to separate from the push rod. Then keep the throttle linkage at that position.
(c) Check that the dashpot is set.
Dashpot setting speed:
2,300 ± 400 rpm
(d) Reconnect the control cables to the throttle body.
4. CHECK VTV OPERATION
(a) Maintain the engine speed at 3,500 rpm.
(b) Release the throttle valve, and check that the engine returns to idle in a few seconds.
