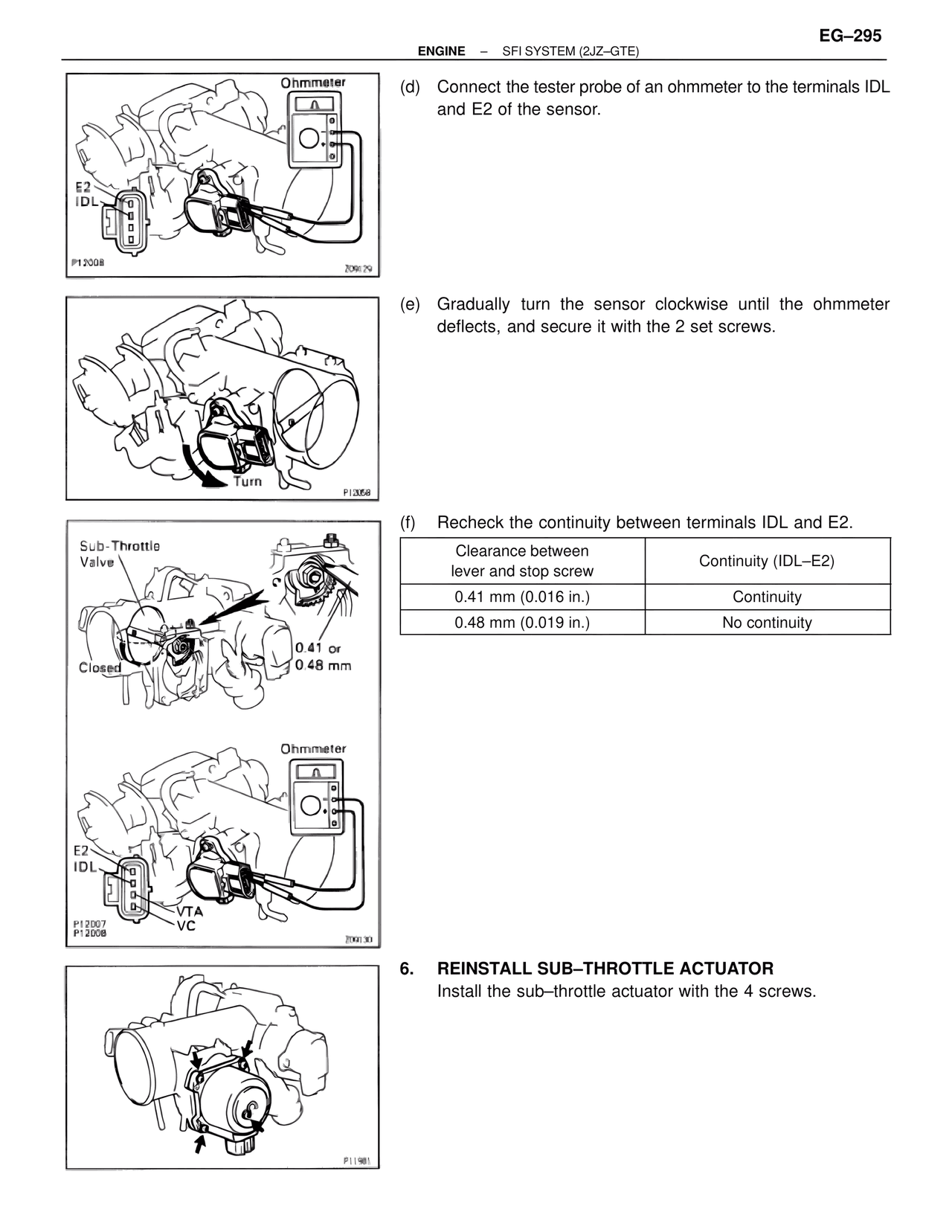

EG–295
ENGINE – SFI SYSTEM (2JZ–GTE)
E2
IDL
P12008
209129
(d) Connect the tester probe of an ohmmeter to the terminals IDL
and E2 of the sensor.
Turn
P12058
(e) Gradually turn the sensor clockwise until the ohmmeter
deflects, and secure it with the 2 set screws.
Sub-Throttle
Valve
Closed
0.41 or
0.48 mm
Ohmmeter
E2
IDL
P12007
P12008
VTA
VC
209130
(f) Recheck the continuity between terminals IDL and E2.
Clearance between
lever and stop screw | Continuity (IDL–E2)
0.41 mm (0.016 in.) | Continuity
0.48 mm (0.019 in.) | No continuity
P11981
6. REINSTALL SUB–THROTTLE ACTUATOR
Install the sub–throttle actuator with the 4 screws.
