ENGINE – SFI SYSTEM (2JZ-GTE)

EFI No.2
Relay

P11277

Ohmmeter
No
Continuity
Continuity
1
5
Ohmmeter
3
2
P0F170

Ohmmeter
Continuity
1
5
3
2
Battery
P0F171

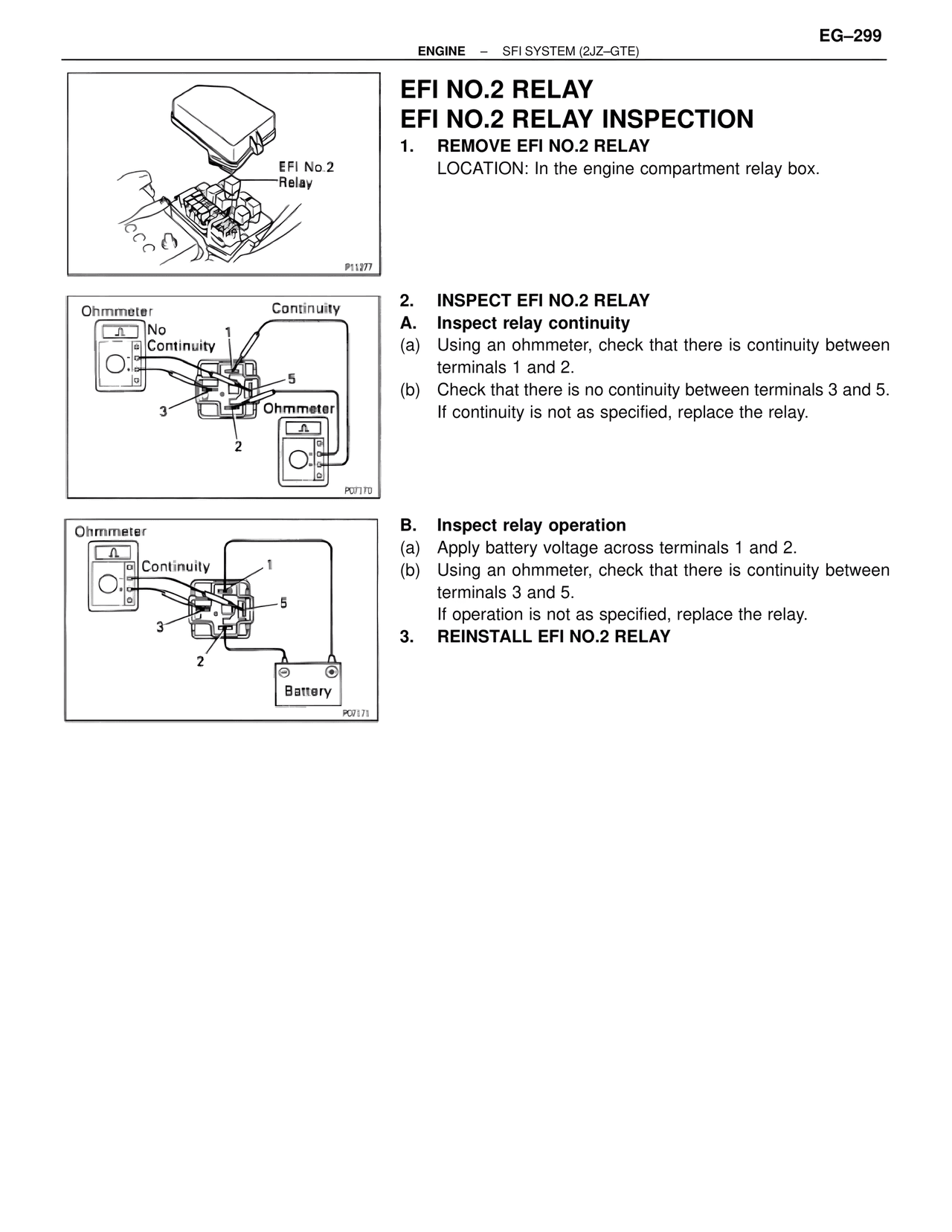

EFI NO.2 RELAY
EFI NO.2 RELAY INSPECTION

1. REMOVE EFI NO.2 RELAY
LOCATION: In the engine compartment relay box.

2. INSPECT EFI NO.2 RELAY
A. Inspect relay continuity
(a) Using an ohmmeter, check that there is continuity between
terminals 1 and 2.
(b) Check that there is no continuity between terminals 3 and 5.
If continuity is not as specified, replace the relay.

B. Inspect relay operation
(a) Apply battery voltage across terminals 1 and 2.
(b) Using an ohmmeter, check that there is continuity between
terminals 3 and 5.
If operation is not as specified, replace the relay.

3. REINSTALL EFI NO.2 RELAY
