SFTE/SFI System 2JZ-GTE — VSV for Intake Air Control Valve Components for Removal and Installation, page 45

EG–302
ENGINE – SFI SYSTEM (2JZ–GTE)

Air
E
G
P11342

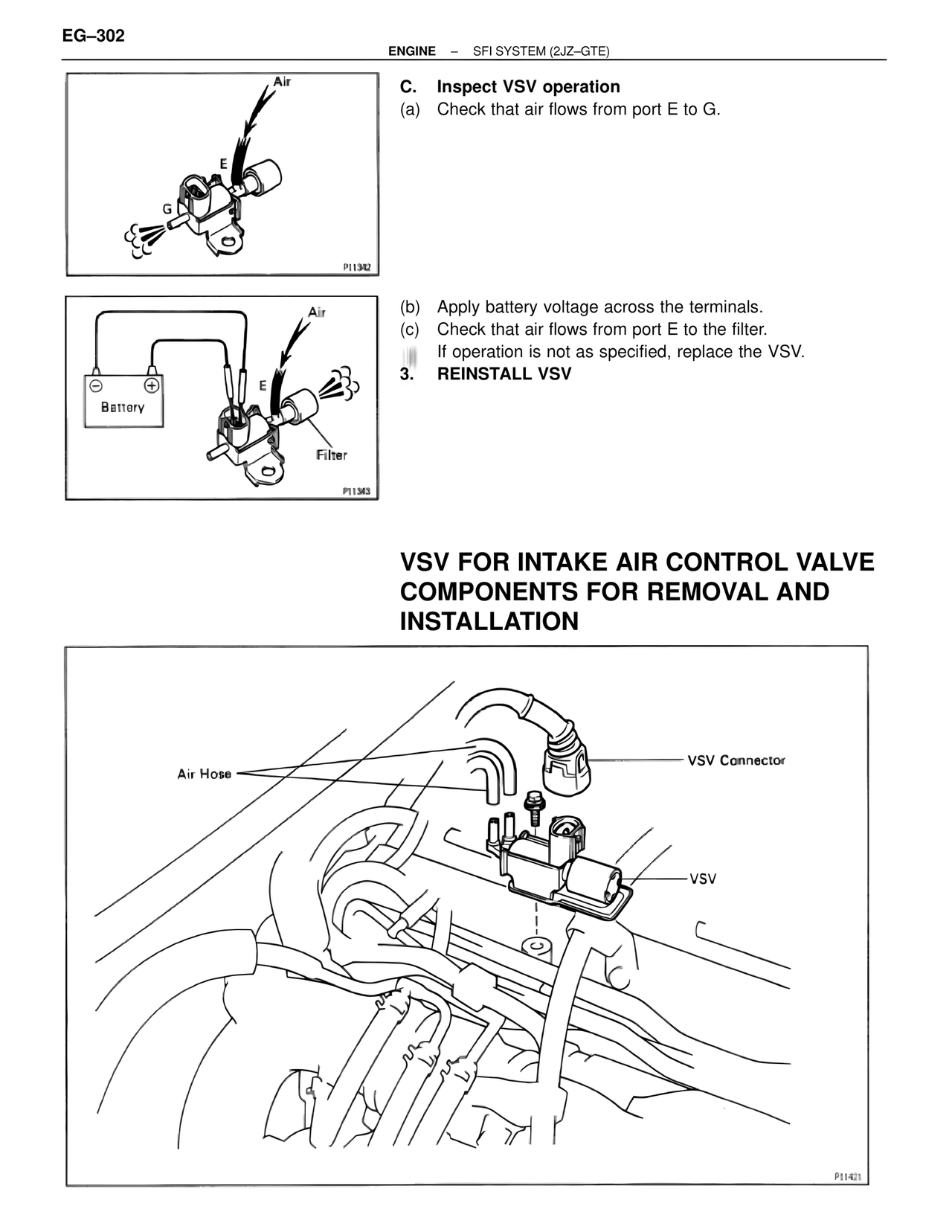

C. Inspect VSV operation
(a) Check that air flows from port E to G.

Air
E
Battery
Filter
P11343

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to the filter.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

VSV FOR INTAKE AIR CONTROL VALVE
COMPONENTS FOR REMOVAL AND
INSTALLATION

Air Hose
VSV Connector
VSV
P11421
