EG–321
ENGINE – SFI SYSTEM (2JZ–GTE)

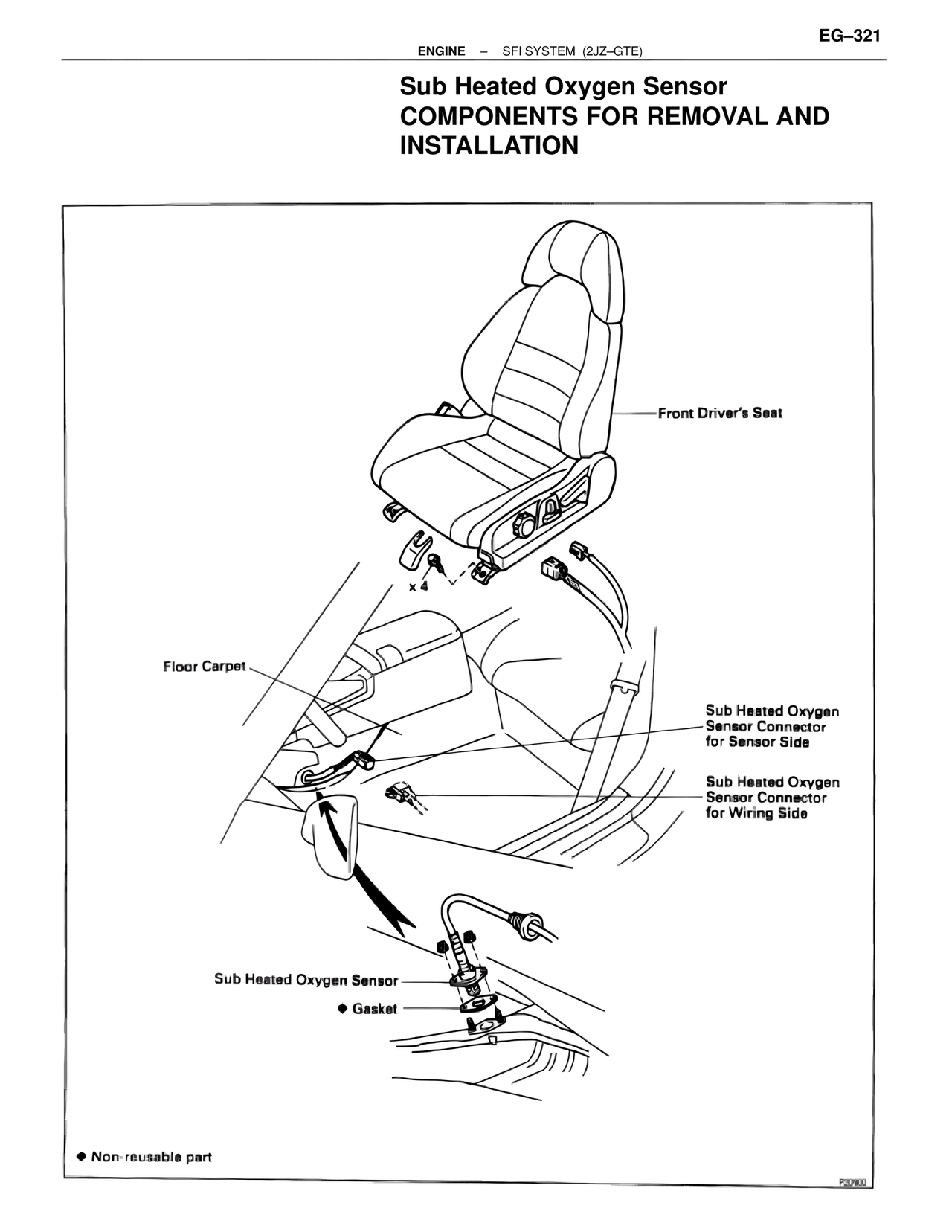

Sub Heated Oxygen Sensor
COMPONENTS FOR REMOVAL AND
INSTALLATION

Front Driver's Seat

x 4

Floor Carpet

Sub Heated Oxygen
Sensor Connector
for Sensor Side

Sub Heated Oxygen
Sensor Connector
for Wiring Side

Sub Heated Oxygen Sensor
● Gasket

● Non-reusable part

P30900
