ENGINE – SFI SYSTEM (2JZ-GTE)

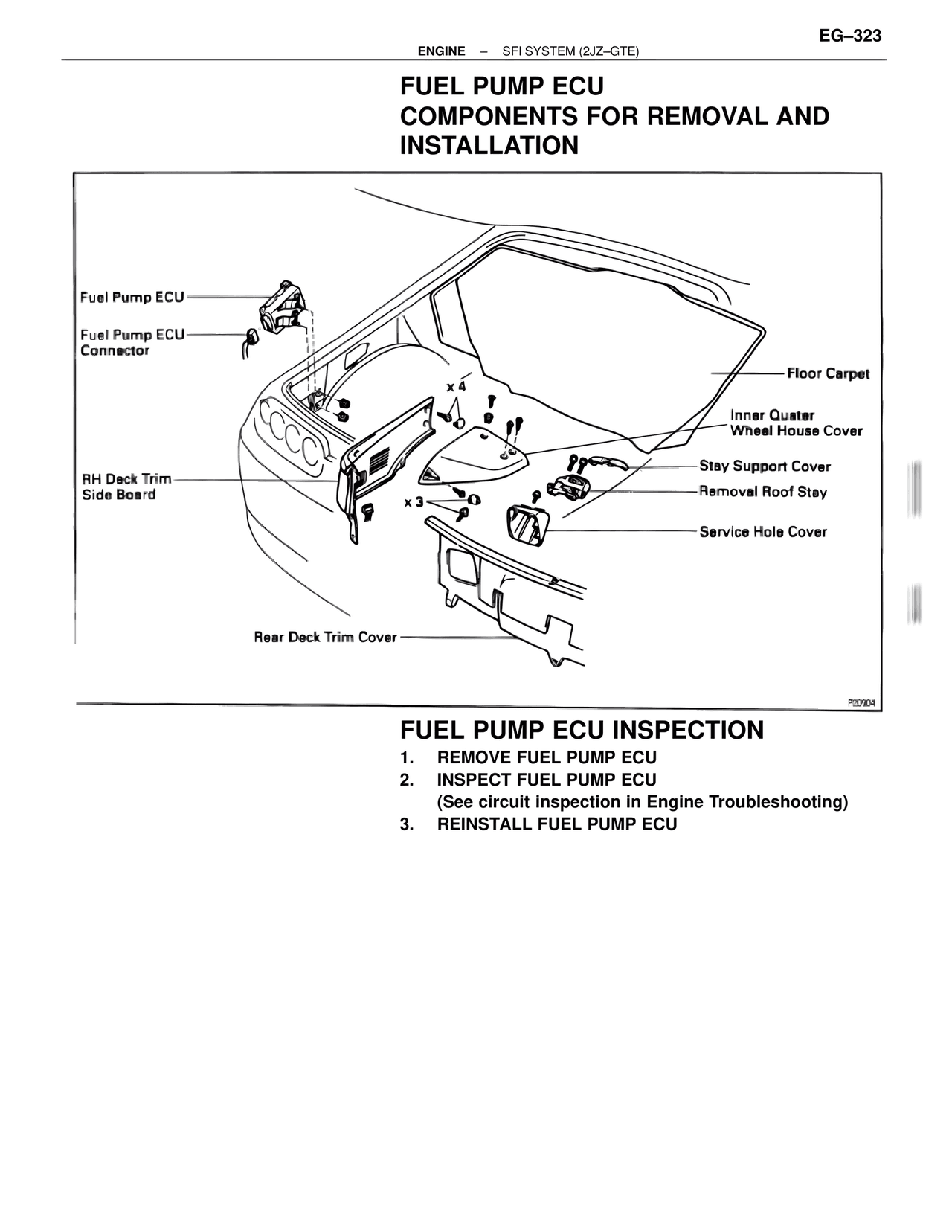

FUEL PUMP ECU
COMPONENTS FOR REMOVAL AND
INSTALLATION

Fuel Pump ECU
Fuel Pump ECU
Connector

x 4

RH Deck Trim
Side Board

x 3

Rear Deck Trim Cover

Floor Carpet

Inner Quater
Wheel House Cover

Stay Support Cover
Removal Roof Stay

Service Hole Cover

P20904

FUEL PUMP ECU INSPECTION

1. REMOVE FUEL PUMP ECU
2. INSPECT FUEL PUMP ECU
(See circuit inspection in Engine Troubleshooting)
3. REINSTALL FUEL PUMP ECU
