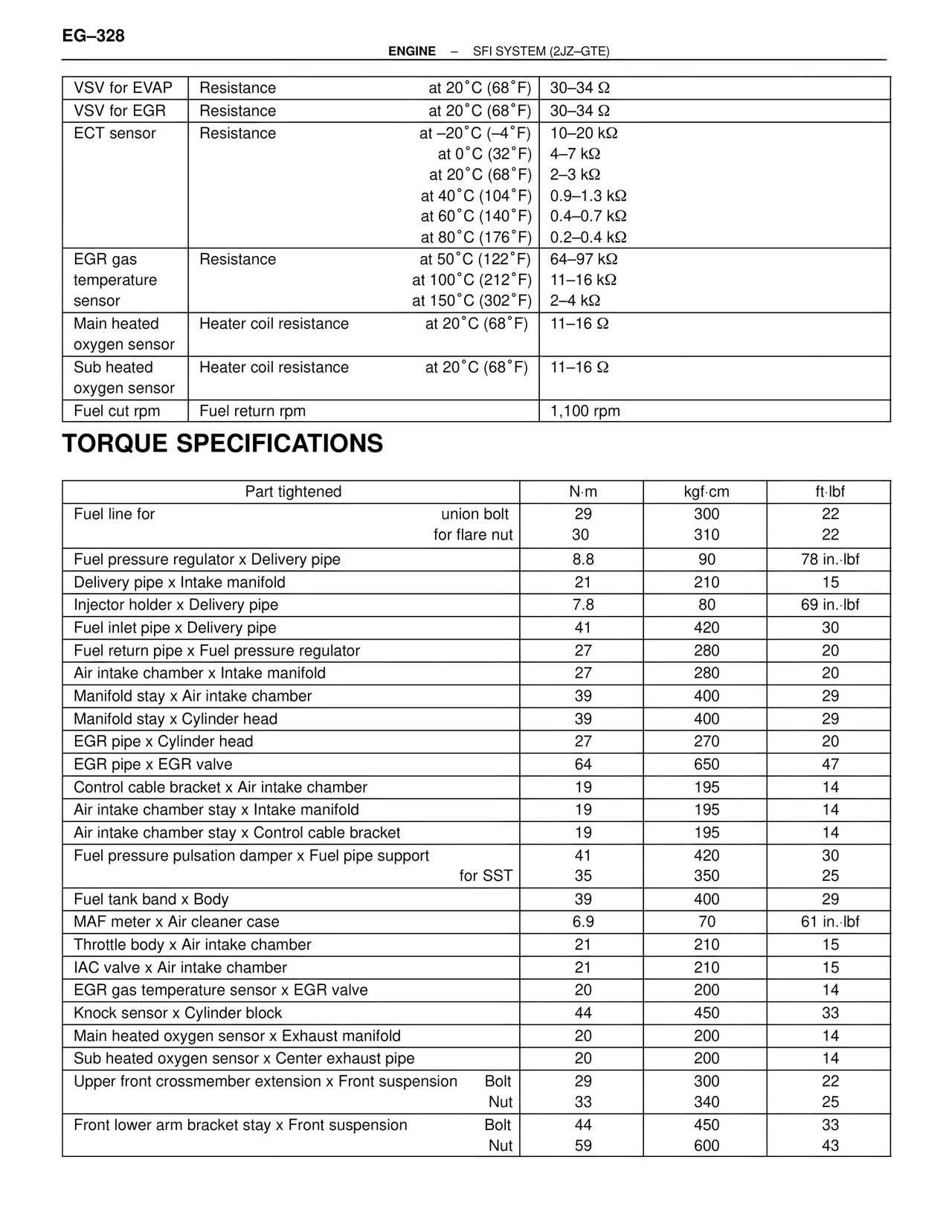

EG–328 ENGINE – SFI SYSTEM (2JZ–GTE) VSV for EVAP | Resistance | at 20°C (68°F) | 30–34 Ω VSV for EGR | Resistance | at 20°C (68°F) | 30–34 Ω ECT sensor | Resistance | at –20°C (–4°F) | 10–20 kΩ at 0°C (32°F) | 4–7 kΩ at 20°C (68°F) | 2–3 kΩ at 40°C (104°F) | 0.9–1.3 kΩ at 60°C (140°F) | 0.4–0.7 kΩ at 80°C (176°F) | 0.2–0.4 kΩ EGR gas temperature sensor | Resistance | at 50°C (122°F) | 64–97 kΩ at 100°C (212°F) | 11–16 kΩ at 150°C (302°F) | 2–4 kΩ Main heated oxygen sensor | Heater coil resistance | at 20°C (68°F) | 11–16 Ω Sub heated oxygen sensor | Heater coil resistance | at 20°C (68°F) | 11–16 Ω Fuel cut rpm | Fuel return rpm | | 1,100 rpm TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf Fuel line for | union bolt | 29 | 300 | 22 | for flare nut | 30 | 310 | 22 Fuel pressure regulator x Delivery pipe | 8.8 | 90 | 78 in.·lbf Delivery pipe x Intake manifold | 21 | 210 | 15 Injector holder x Delivery pipe | 7.8 | 80 | 69 in.·lbf Fuel inlet pipe x Delivery pipe | 41 | 420 | 30 Fuel return pipe x Fuel pressure regulator | 27 | 280 | 20 Air intake chamber x Intake manifold | 27 | 280 | 20 Manifold stay x Air intake chamber | 39 | 400 | 29 Manifold stay x Cylinder head | 39 | 400 | 29 EGR pipe x Cylinder head | 27 | 270 | 20 EGR pipe x EGR valve | 64 | 650 | 47 Control cable bracket x Air intake chamber | 19 | 195 | 14 Air intake chamber stay x Intake manifold | 19 | 195 | 14 Air intake chamber stay x Control cable bracket | 19 | 195 | 14 Fuel pressure pulsation damper x Fuel pipe support | 41 | 420 | 30 for SST | 35 | 350 | 25 Fuel tank band x Body | 39 | 400 | 29 MAF meter x Air cleaner case | 6.9 | 70 | 61 in.·lbf Throttle body x Air intake chamber | 21 | 210 | 15 IAC valve x Air intake chamber | 21 | 210 | 15 EGR gas temperature sensor x EGR valve | 20 | 200 | 14 Knock sensor x Cylinder block | 44 | 450 | 33 Main heated oxygen sensor x Exhaust manifold | 20 | 200 | 14 Sub heated oxygen sensor x Center exhaust pipe | 20 | 200 | 14 Upper front crossmember extension x Front suspension | Bolt | 29 | 300 | 22 | Nut | 33 | 340 | 25 Front lower arm bracket stay x Front suspension | Bolt | 44 | 450 | 33 | Nut | 59 | 600 | 43
