ENGINE – SFI SYSTEM (2JZ–GTE)

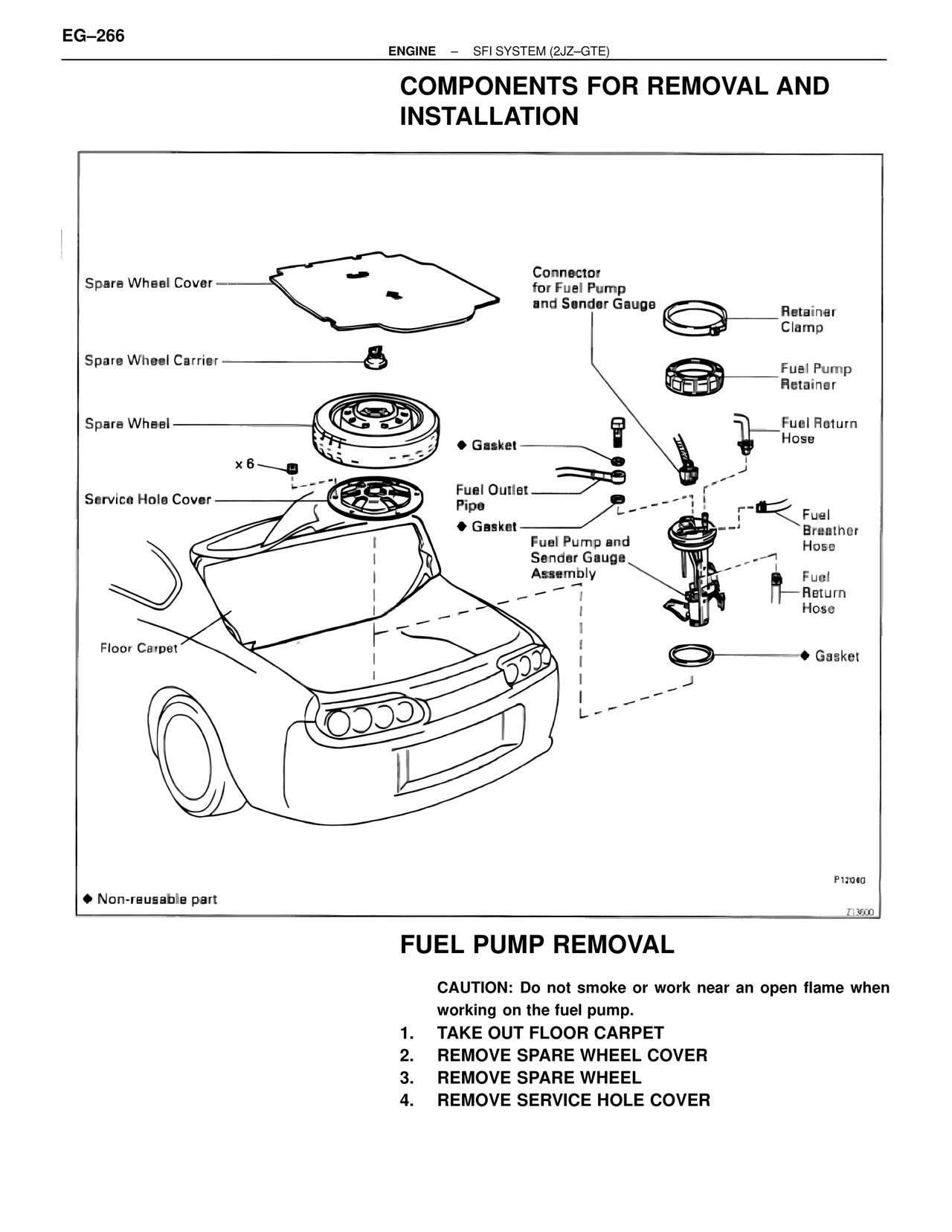

COMPONENTS FOR REMOVAL AND
INSTALLATION
Spare Wheel Cover
Spare Wheel Carrier
Spare Wheel
x 6
Service Hole Cover
Floor Carpet
Connector
for Fuel Pump
and Sender Gauge
Retainer
Clamp
Fuel Pump
Retainer
Fuel Return
Hose
♦ Gasket
Fuel Outlet
Pipe
Fuel
Breather
Hose
♦ Gasket
Fuel Pump and
Sender Gauge
Assembly
Fuel
Return
Hose
♦ Gasket
P12040
Z13600
♦ Non-reusable part
FUEL PUMP REMOVAL
CAUTION: Do not smoke or work near an open flame when
working on the fuel pump.
1. TAKE OUT FLOOR CARPET
2. REMOVE SPARE WHEEL COVER
3. REMOVE SPARE WHEEL
4. REMOVE SERVICE HOLE COVER
