RS–22
SUPPLEMENTAL RESTRAINT SYSTEM – FRONT PASSENGER AIRBAG ASSEMBLY

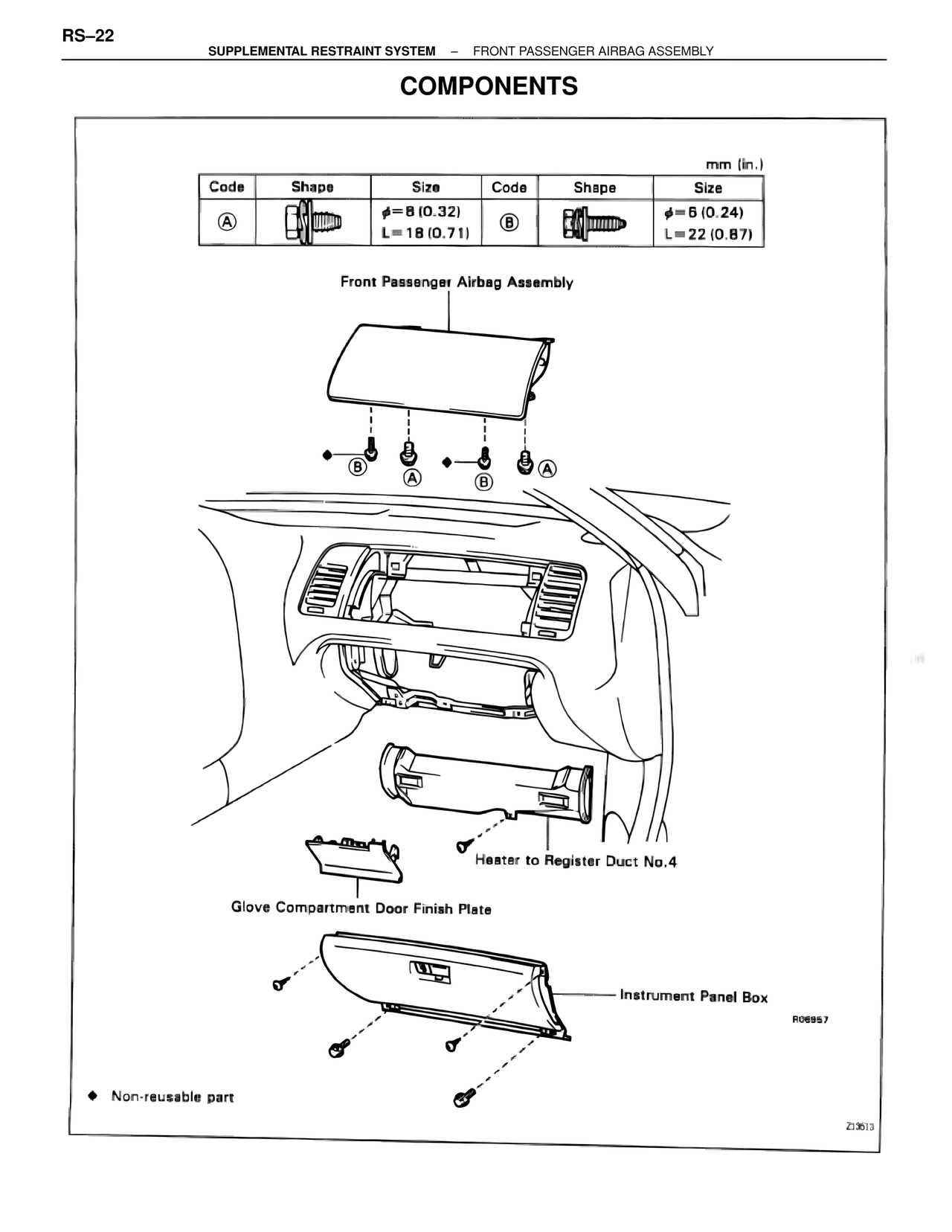

COMPONENTS
mm (in.)
Code | Shape | Size | Code | Shape | Size
A | [shape] | φ=8 (0.32) L=18 (0.71) | B | [shape] | φ=6 (0.24) L=22 (0.87)
Front Passenger Airbag Assembly
B
A
B
A
Heater to Register Duct No.4
Glove Compartment Door Finish Plate
Instrument Panel Box
R06957
♦ Non-reusable part
213613
