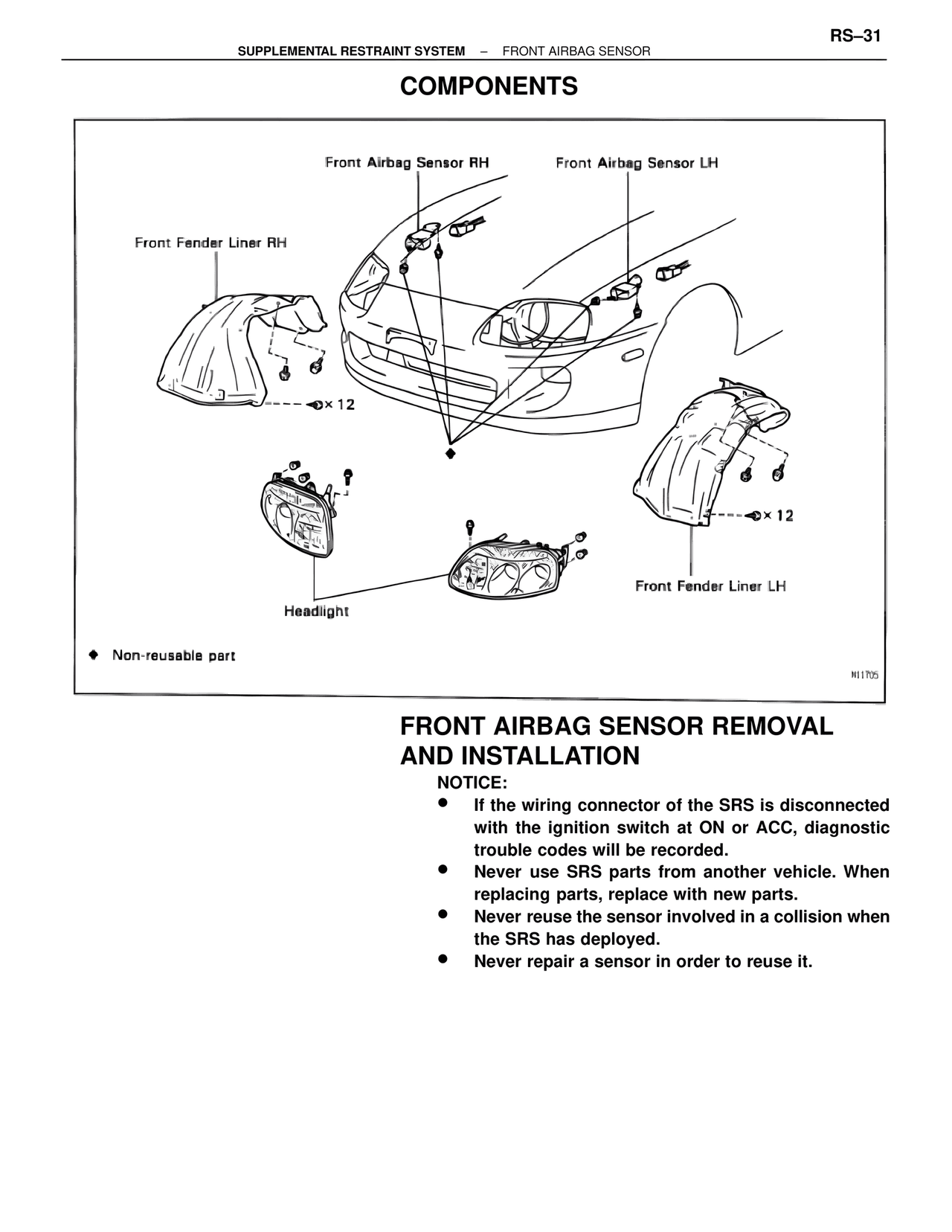

RS–31
SUPPLEMENTAL RESTRAINT SYSTEM – FRONT AIRBAG SENSOR
COMPONENTS
Front Airbag Sensor RH
Front Airbag Sensor LH
Front Fender Liner RH
⊕x 12
Headlight
⊕x 12
Front Fender Liner LH
♦ Non-reusable part
N1705
FRONT AIRBAG SENSOR REMOVAL AND INSTALLATION
NOTICE:
• If the wiring connector of the SRS is disconnected with the ignition switch at ON or ACC, diagnostic trouble codes will be recorded.
• Never use SRS parts from another vehicle. When replacing parts, replace with new parts.
• Never reuse the sensor involved in a collision when the SRS has deployed.
• Never repair a sensor in order to reuse it.
