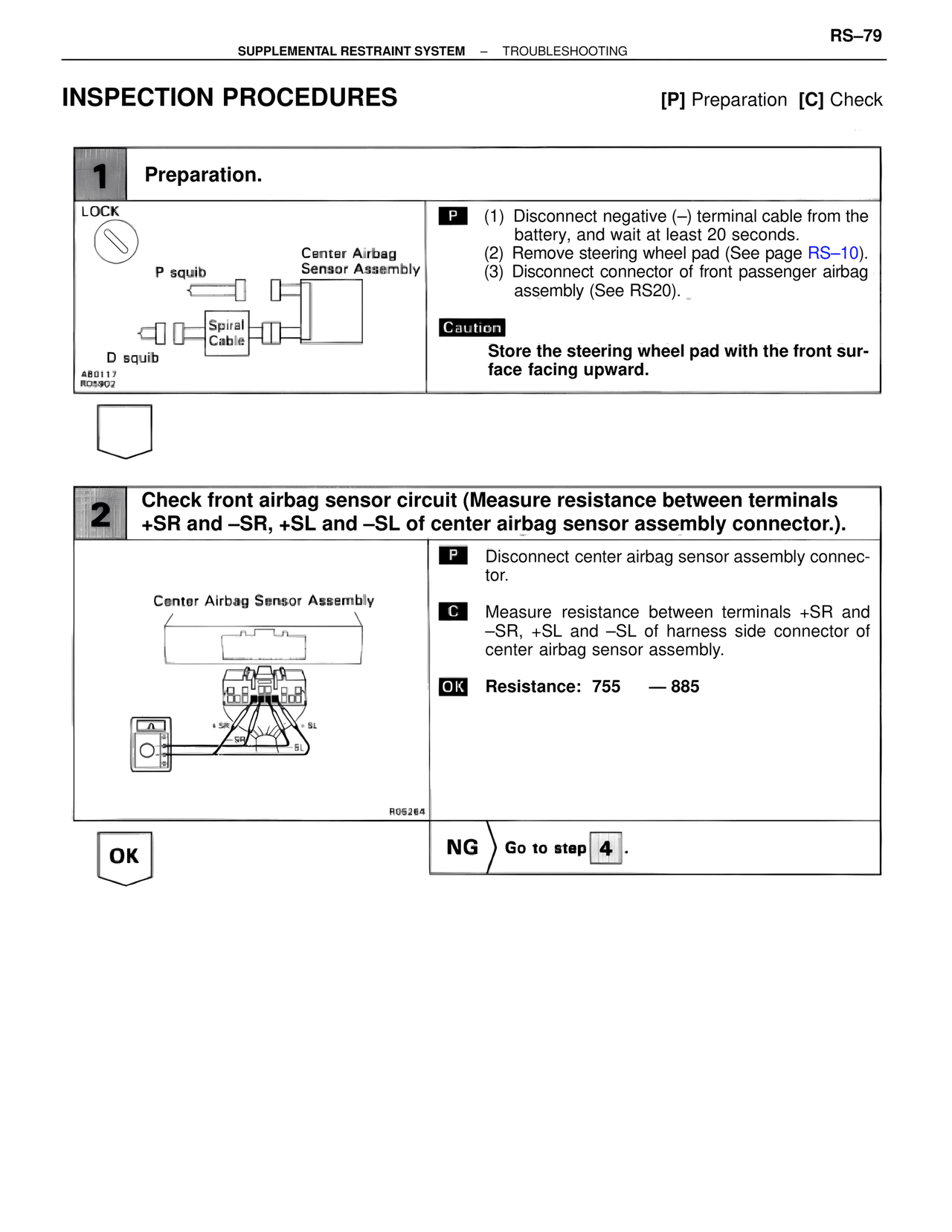

RS–79
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
INSPECTION PROCEDURES
[P] Preparation [C] Check
1 Preparation.
LOCK
P squib
Center Airbag
Sensor Assembly
Spiral
Cable
D squib
AB0117
RO5902
P (1) Disconnect negative (–) terminal cable from the
battery, and wait at least 20 seconds.
(2) Remove steering wheel pad (See page RS–10).
(3) Disconnect connector of front passenger airbag
assembly (See RS20).
Caution
Store the steering wheel pad with the front sur-
face facing upward.
2 Check front airbag sensor circuit (Measure resistance between terminals
+SR and –SR, +SL and –SL of center airbag sensor assembly connector.).
Center Airbag Sensor Assembly
+SR
SR
+SL
SL
R05264
P Disconnect center airbag sensor assembly connec-
tor.
C Measure resistance between terminals +SR and
–SR, +SL and –SL of harness side connector of
center airbag sensor assembly.
OK Resistance: 755 — 885
OK
NG Go to step 4 .
