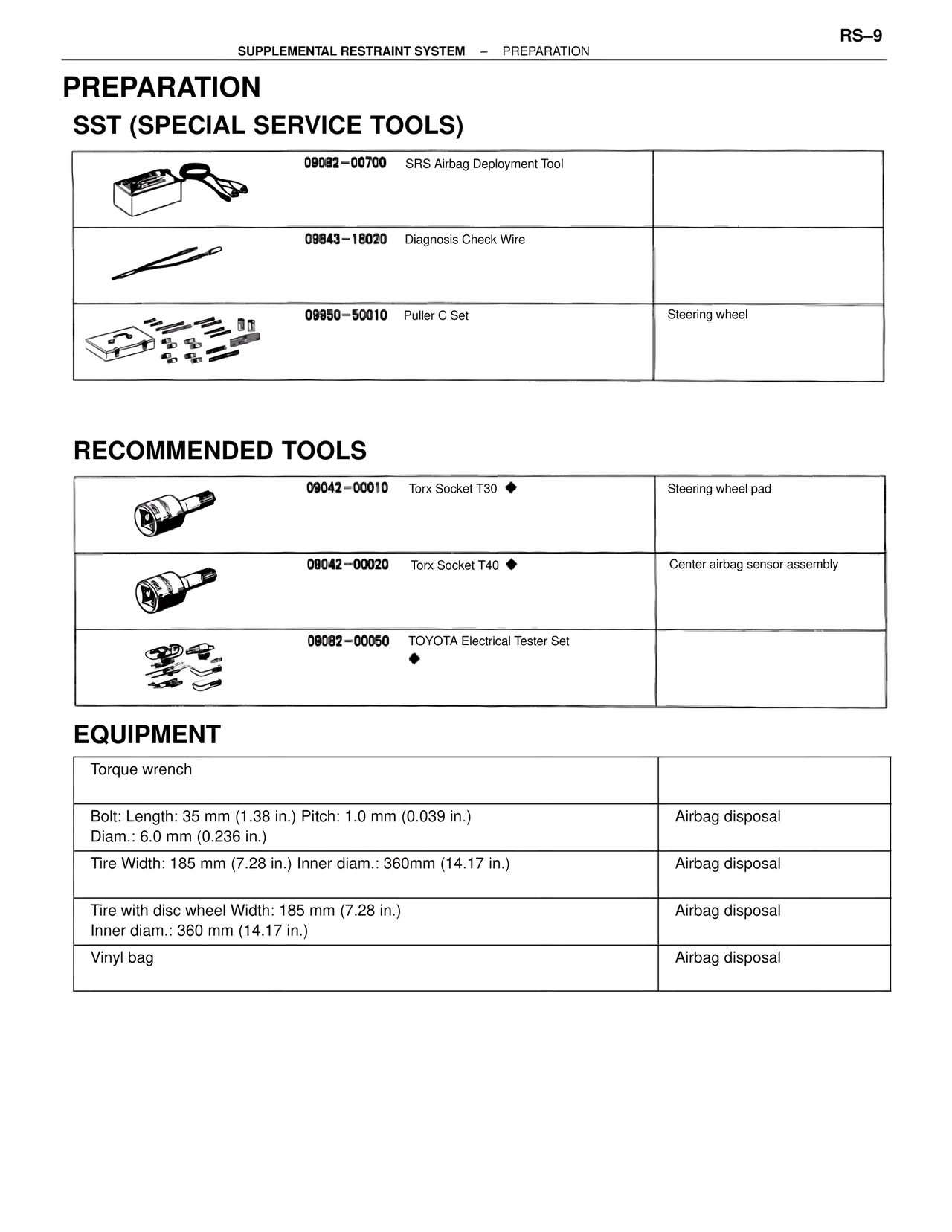

PREPARATION
SST (SPECIAL SERVICE TOOLS)
09082-00700 SRS Airbag Deployment Tool
09843-18020 Diagnosis Check Wire
09950-50010 Puller C Set Steering wheel
RECOMMENDED TOOLS
09042-00010 Torx Socket T30 ◆ Steering wheel pad
09042-00020 Torx Socket T40 ◆ Center airbag sensor assembly
09082-00050 TOYOTA Electrical Tester Set
◆
EQUIPMENT
Torque wrench
Bolt: Length: 35 mm (1.38 in.) Pitch: 1.0 mm (0.039 in.)
Diam.: 6.0 mm (0.236 in.) Airbag disposal
Tire Width: 185 mm (7.28 in.) Inner diam.: 360mm (14.17 in.) Airbag disposal
Tire with disc wheel Width: 185 mm (7.28 in.)
Inner diam.: 360 mm (14.17 in.) Airbag disposal
Vinyl bag Airbag disposal
