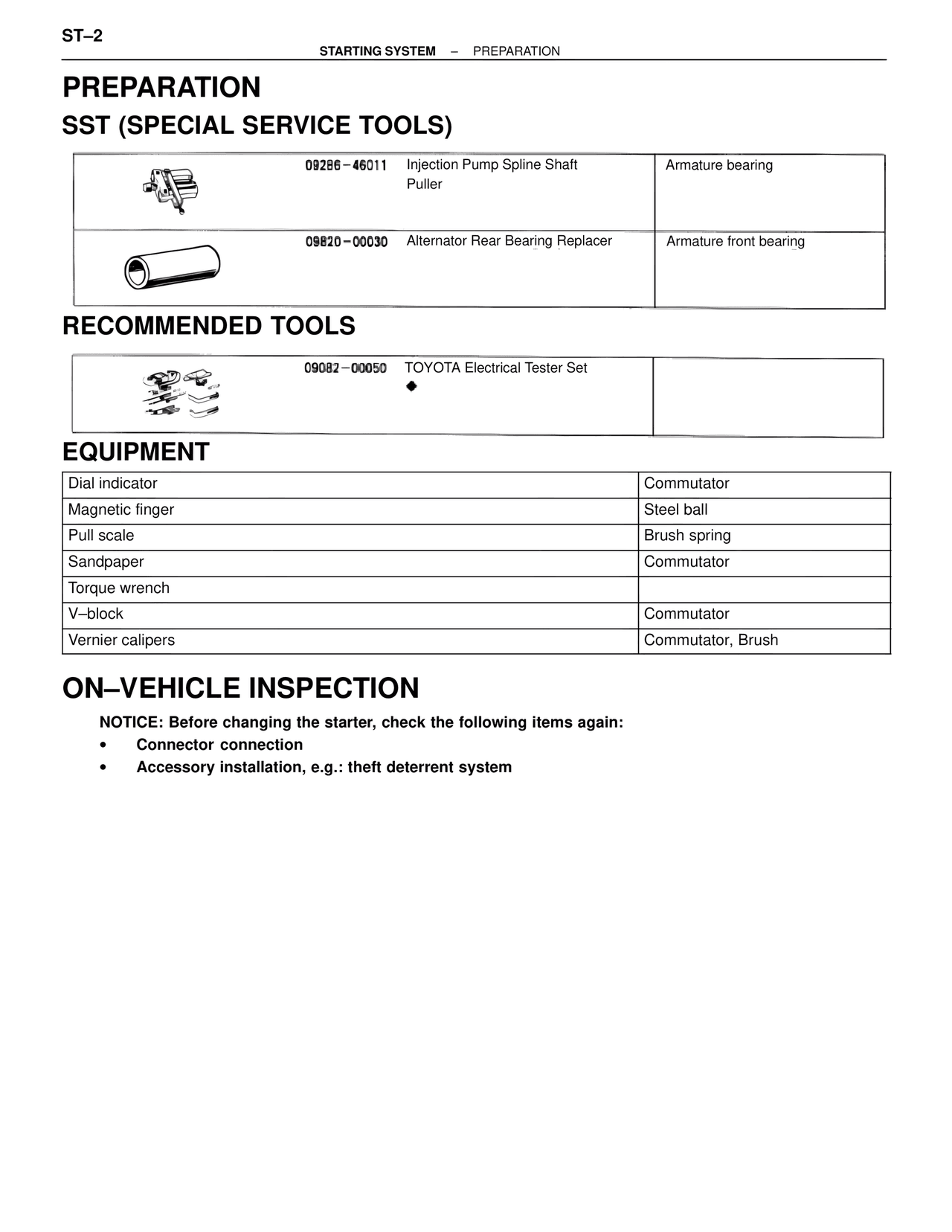

ST–2
STARTING SYSTEM – PREPARATION
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09286–46011 Injection Pump Spline Shaft Puller Armature bearing
09820–00030 Alternator Rear Bearing Replacer Armature front bearing
RECOMMENDED TOOLS
09082–00050 TOYOTA Electrical Tester Set
♦
EQUIPMENT
Dial indicator Commutator
Magnetic finger Steel ball
Pull scale Brush spring
Sandpaper Commutator
Torque wrench
V–block Commutator
Vernier calipers Commutator, Brush
ON–VEHICLE INSPECTION
NOTICE: Before changing the starter, check the following items again:
• Connector connection
• Accessory installation, e.g.: theft deterrent system
