Bearing Housing
Side Plate
No.2 Turbo
Water Pipe
Exhaust Manifold
Plate
P11396

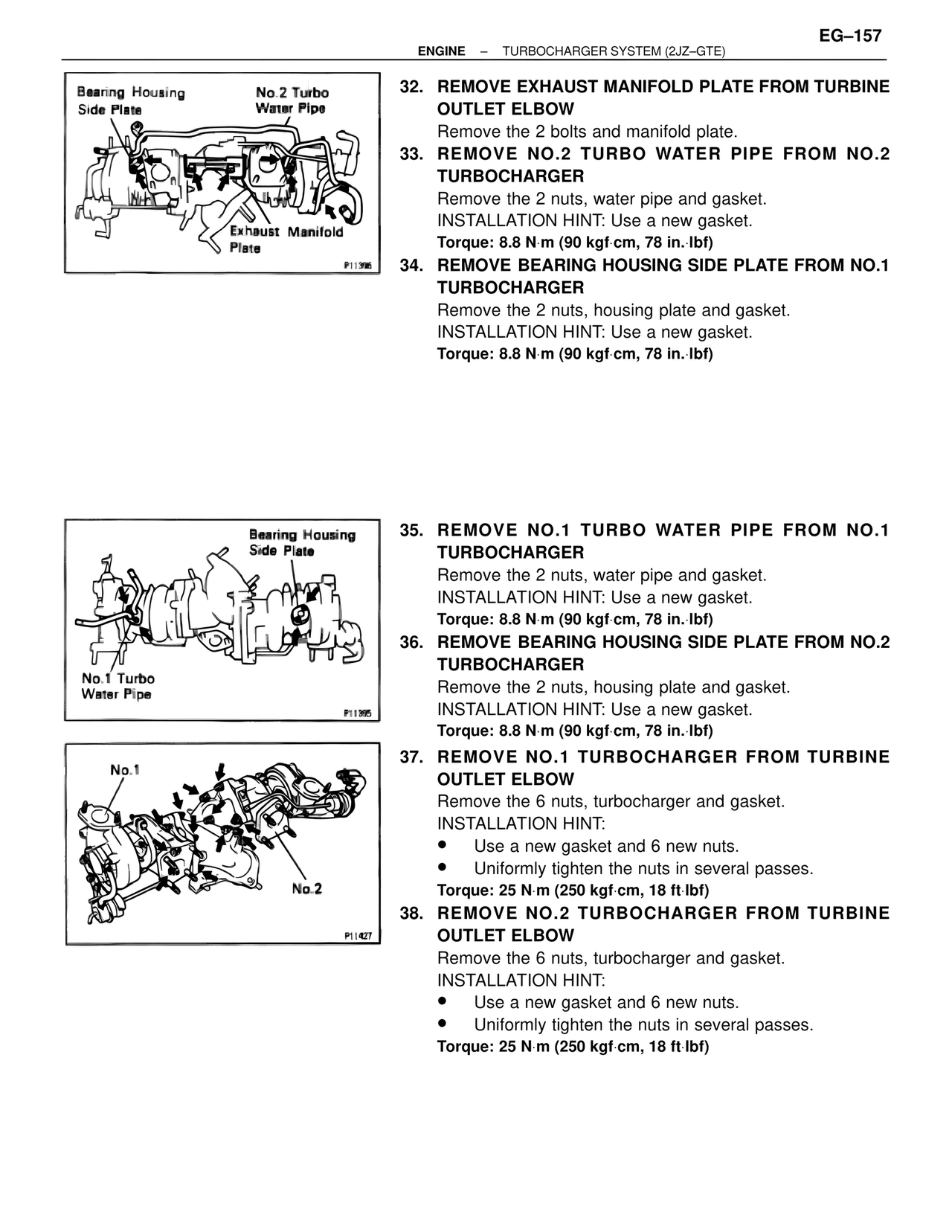

32. REMOVE EXHAUST MANIFOLD PLATE FROM TURBINE
OUTLET ELBOW
Remove the 2 bolts and manifold plate.
33. REMOVE NO.2 TURBO WATER PIPE FROM NO.2
TURBOCHARGER
Remove the 2 nuts, water pipe and gasket.
INSTALLATION HINT: Use a new gasket.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
34. REMOVE BEARING HOUSING SIDE PLATE FROM NO.1
TURBOCHARGER
Remove the 2 nuts, housing plate and gasket.
INSTALLATION HINT: Use a new gasket.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
Bearing Housing
Side Plate
No.1 Turbo
Water Pipe
P11395
35. REMOVE NO.1 TURBO WATER PIPE FROM NO.1
TURBOCHARGER
Remove the 2 nuts, water pipe and gasket.
INSTALLATION HINT: Use a new gasket.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
36. REMOVE BEARING HOUSING SIDE PLATE FROM NO.2
TURBOCHARGER
Remove the 2 nuts, housing plate and gasket.
INSTALLATION HINT: Use a new gasket.
Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf)
No.1
No.2
P11427
37. REMOVE NO.1 TURBOCHARGER FROM TURBINE
OUTLET ELBOW
Remove the 6 nuts, turbocharger and gasket.
INSTALLATION HINT:
• Use a new gasket and 6 new nuts.
• Uniformly tighten the nuts in several passes.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
38. REMOVE NO.2 TURBOCHARGER FROM TURBINE
OUTLET ELBOW
Remove the 6 nuts, turbocharger and gasket.
INSTALLATION HINT:
• Use a new gasket and 6 new nuts.
• Uniformly tighten the nuts in several passes.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
