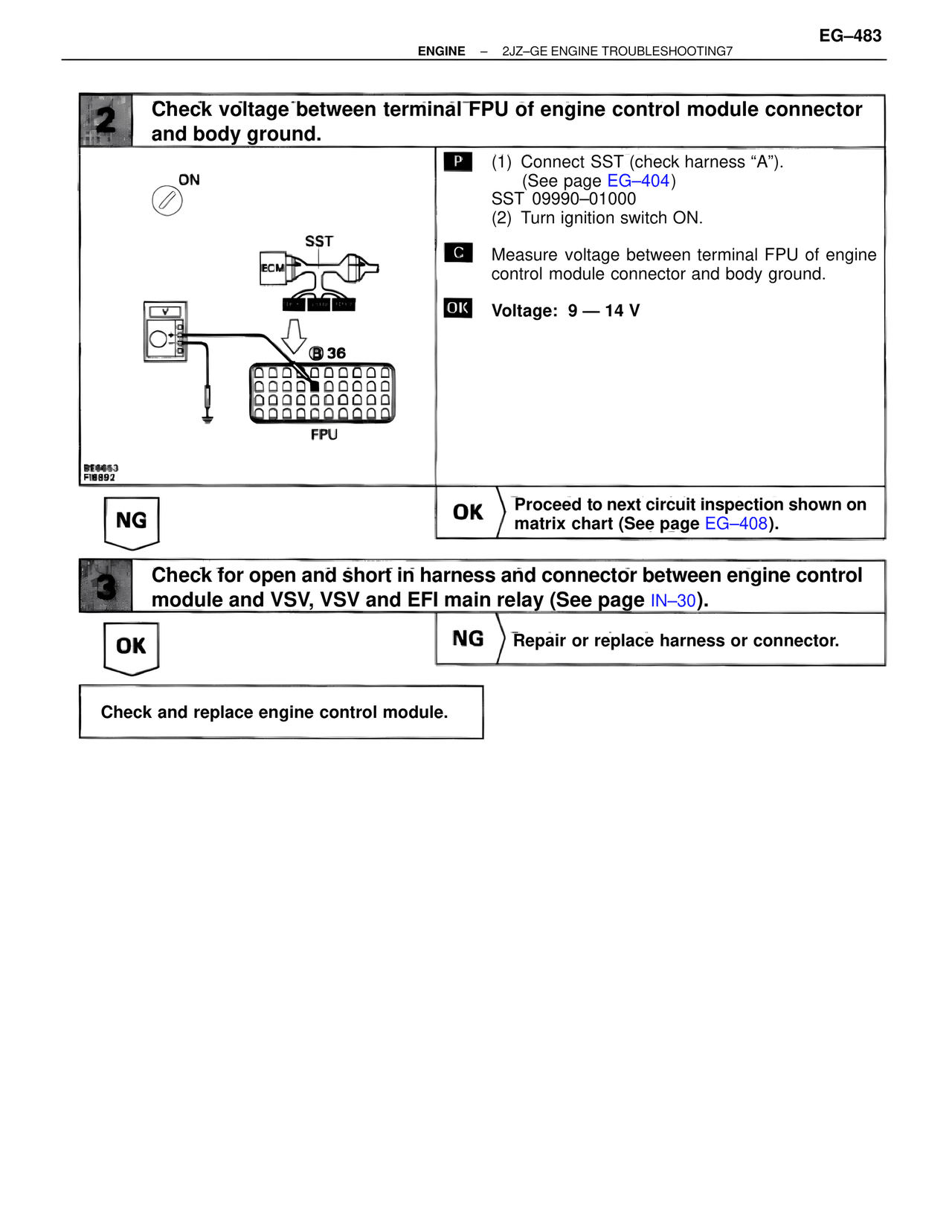

2  Check voltage between terminal FPU of engine control module connector and body ground.

ON

SST
ECM

B 36

FPU

BE6653
FI8892

P  (1)  Connect SST (check harness "A").
        (See page EG-404)
        SST 09990-01000
   (2)  Turn ignition switch ON.

C  Measure voltage between terminal FPU of engine control module connector and body ground.

OK  Voltage: 9 — 14 V

NG

OK  Proceed to next circuit inspection shown on matrix chart (See page EG-408).

3  Check for open and short in harness and connector between engine control module and VSV, VSV and EFI main relay (See page IN-30).

OK

NG  Repair or replace harness or connector.

Check and replace engine control module.
