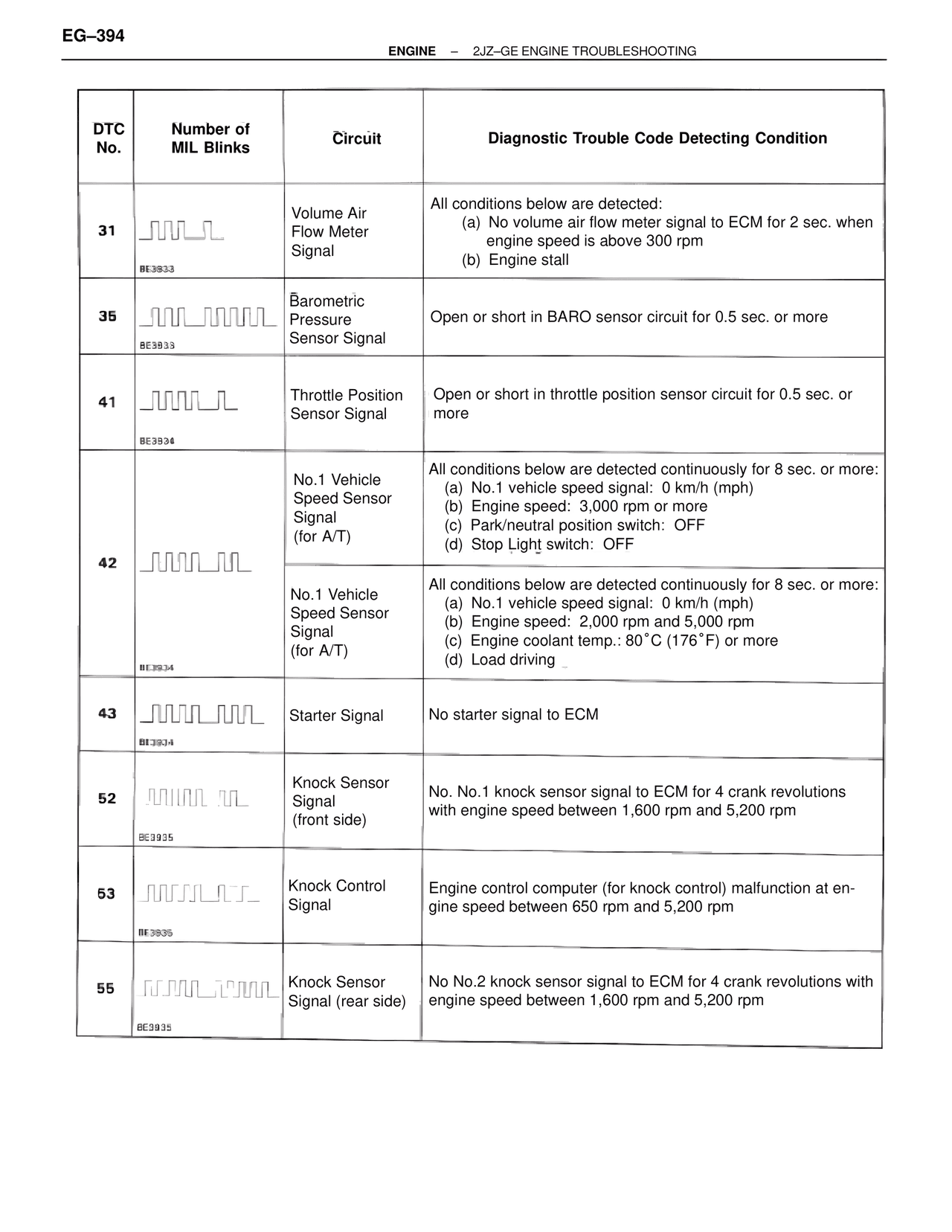

EG–394
ENGINE – 2JZ–GE ENGINE TROUBLESHOOTING
DTC No. | Number of MIL Blinks | Circuit | Diagnostic Trouble Code Detecting Condition
31
BE3833
Volume Air Flow Meter Signal
All conditions below are detected:
(a) No volume air flow meter signal to ECM for 2 sec. when engine speed is above 300 rpm
(b) Engine stall
35
BE3833
Barometric Pressure Sensor Signal
Open or short in BARO sensor circuit for 0.5 sec. or more
41
BE3834
Throttle Position Sensor Signal
Open or short in throttle position sensor circuit for 0.5 sec. or more
42
No.1 Vehicle Speed Sensor Signal (for A/T)
All conditions below are detected continuously for 8 sec. or more:
(a) No.1 vehicle speed signal: 0 km/h (mph)
(b) Engine speed: 3,000 rpm or more
(c) Park/neutral position switch: OFF
(d) Stop Light switch: OFF
No.1 Vehicle Speed Sensor Signal (for A/T)
All conditions below are detected continuously for 8 sec. or more:
(a) No.1 vehicle speed signal: 0 km/h (mph)
(b) Engine speed: 2,000 rpm and 5,000 rpm
(c) Engine coolant temp.: 80°C (176°F) or more
(d) Load driving
BE3934
43
BE3934
Starter Signal
No starter signal to ECM
52
BE3935
Knock Sensor Signal (front side)
No. No.1 knock sensor signal to ECM for 4 crank revolutions with engine speed between 1,600 rpm and 5,200 rpm
53
BE3935
Knock Control Signal
Engine control computer (for knock control) malfunction at engine speed between 650 rpm and 5,200 rpm
55
BE3935
Knock Sensor Signal (rear side)
No No.2 knock sensor signal to ECM for 4 crank revolutions with engine speed between 1,600 rpm and 5,200 rpm
