EG-403
ENGINE — 2JZ-GE ENGINE TROUBLESHOOTING

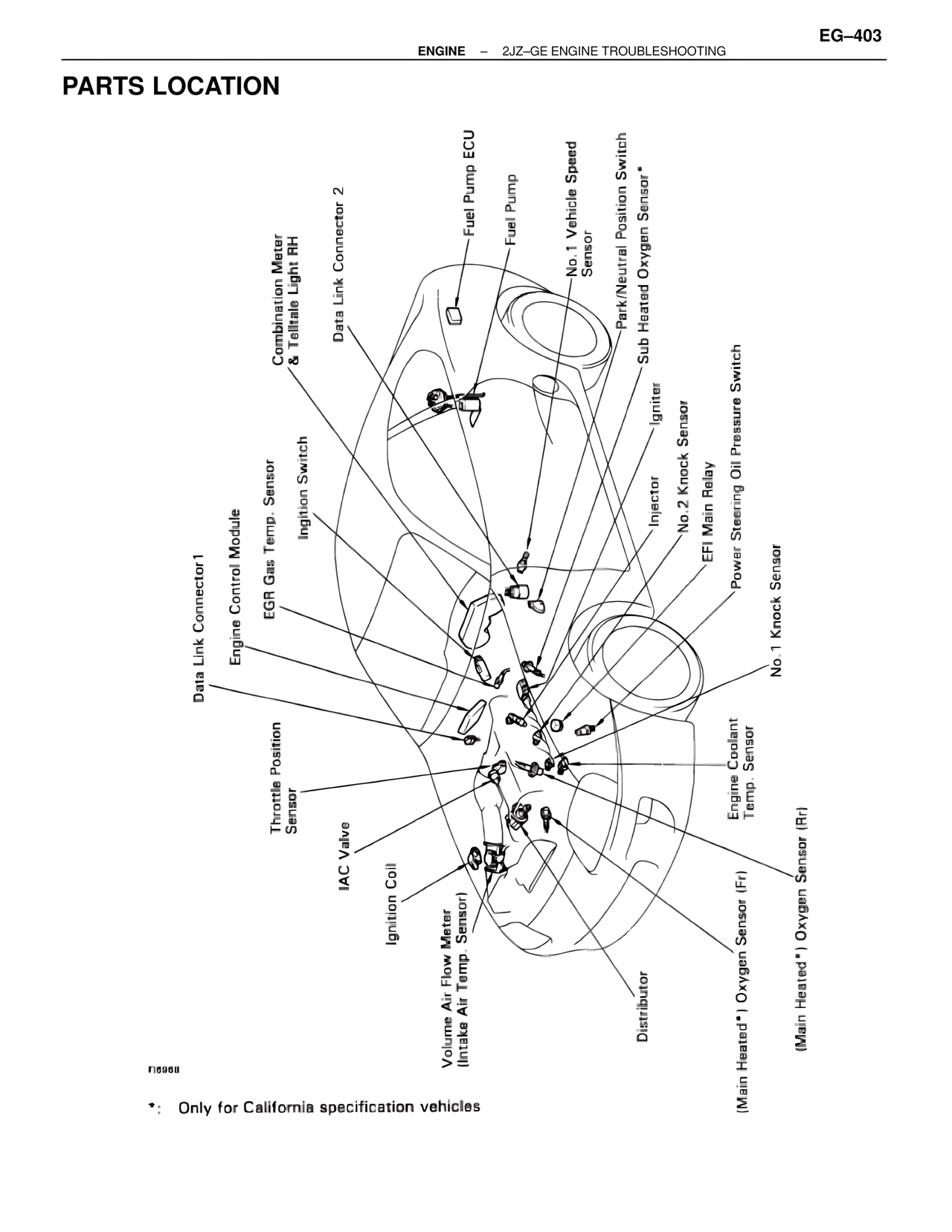

PARTS LOCATION
Data Link Connector1
Engine Control Module
Combination Meter & Telltale Light RH
Data Link Connector 2
EGR Gas Temp. Sensor
Ignition Switch
Throttle Position Sensor
IAC Valve
Ignition Coil
Volume Air Flow Meter (Intake Air Temp. Sensor)
Fuel Pump ECU
Fuel Pump
No. 1 Vehicle Speed Sensor
Park/Neutral Position Switch
Sub Heated Oxygen Sensor*
Igniter
No. 2 Knock Sensor
Injector
EFI Main Relay
Power Steering Oil Pressure Switch
No. 1 Knock Sensor
Engine Coolant Temp. Sensor
Distributor
(Main Heated*) Oxygen Sensor (Fr)
(Main Heated*) Oxygen Sensor (Rr)
FI6968
*: Only for California specification vehicles
