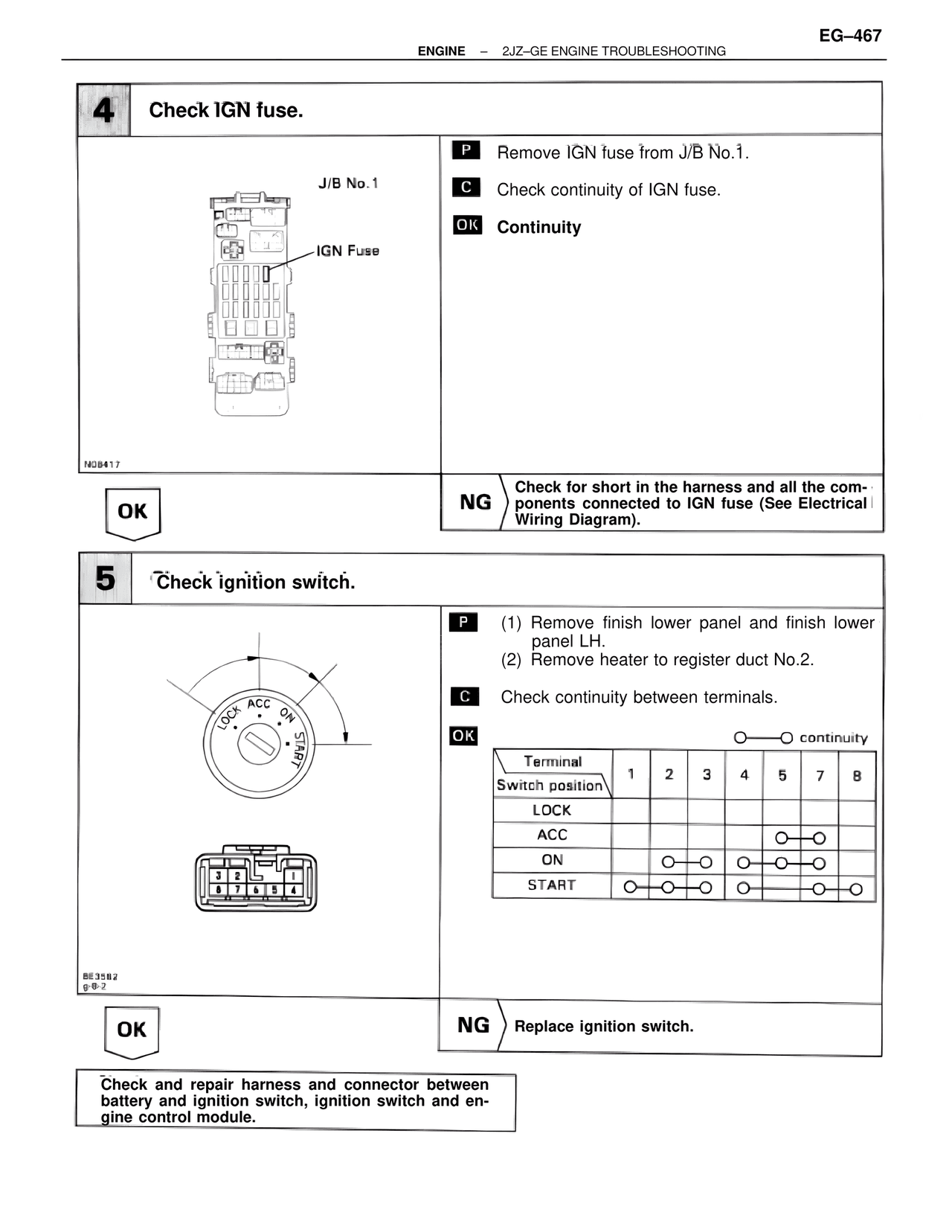

ENGINE — 2JZ-GE ENGINE TROUBLESHOOTING

4 Check IGN fuse.

J/B No.1

IGN Fuse

N08417

P Remove IGN fuse from J/B No.1.

C Check continuity of IGN fuse.

OK Continuity

OK

NG Check for short in the harness and all the components connected to IGN fuse (See Electrical Wiring Diagram).

5 Check ignition switch.

LOCK ACC ON START

3 2 1
8 7 6 5

BE35B2
g-B-2

P (1) Remove finish lower panel and finish lower panel LH.
(2) Remove heater to register duct No.2.

C Check continuity between terminals.

OK                                           O——O continuity

Terminal          1    2    3    4    5    7    8
Switch position
LOCK
ACC                                    O——O
ON               O——O    O——O——O
START      O——O——O    O         O——O

OK

NG Replace ignition switch.

Check and repair harness and connector between battery and ignition switch, ignition switch and engine control module.
