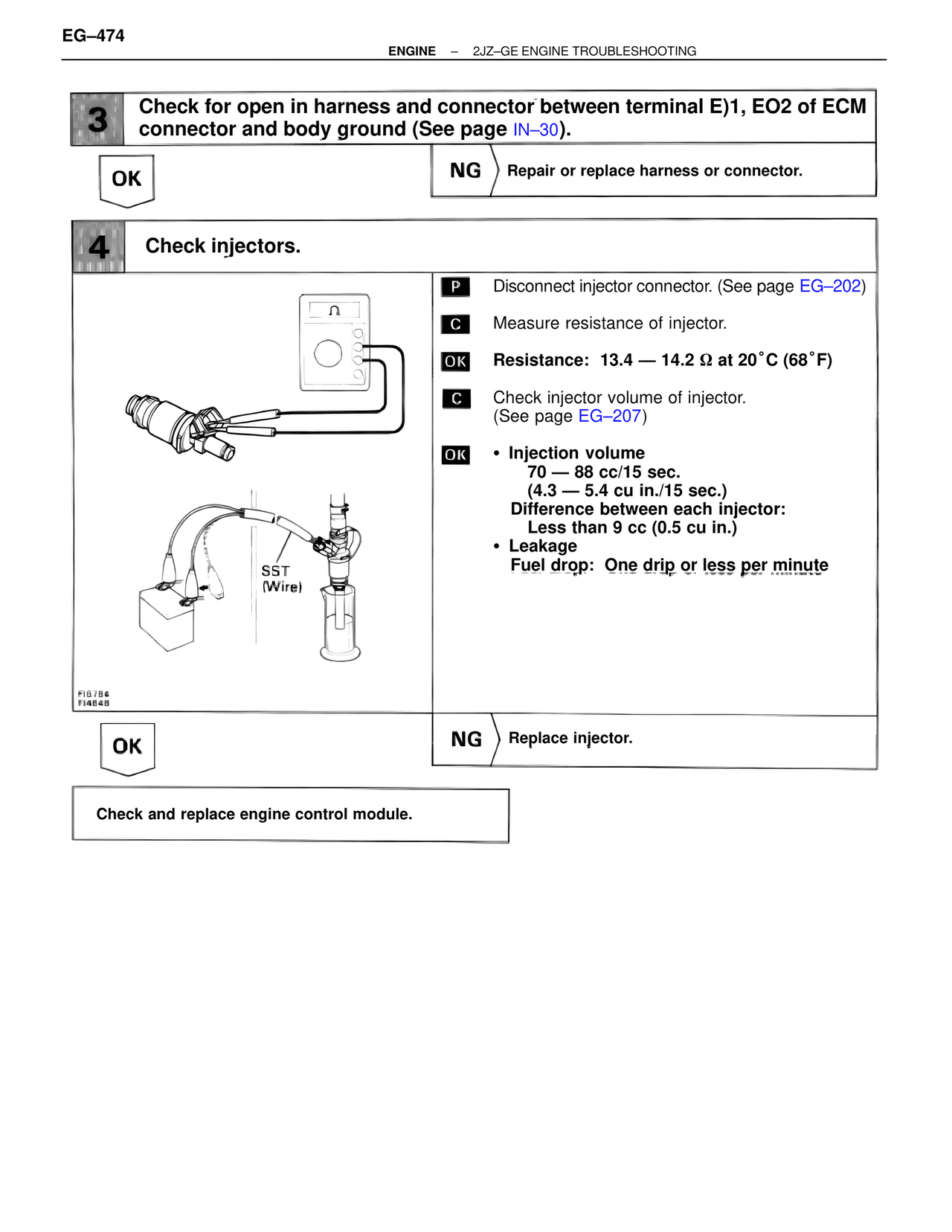

EG–474
ENGINE – 2JZ-GE ENGINE TROUBLESHOOTING
3 Check for open in harness and connector between terminal E)1, EO2 of ECM connector and body ground (See page IN–30).
OK
NG Repair or replace harness or connector.
4 Check injectors.
P Disconnect injector connector. (See page EG–202)
C Measure resistance of injector.
OK Resistance: 13.4 — 14.2 Ω at 20˚C (68˚F)
C Check injector volume of injector.
(See page EG–207)
OK • Injection volume
70 — 88 cc/15 sec.
(4.3 — 5.4 cu in./15 sec.)
Difference between each injector:
Less than 9 cc (0.5 cu in.)
• Leakage
Fuel drop: One drip or less per minute
SST
(Wire)
FI8784
FI4848
OK
NG Replace injector.
Check and replace engine control module.
