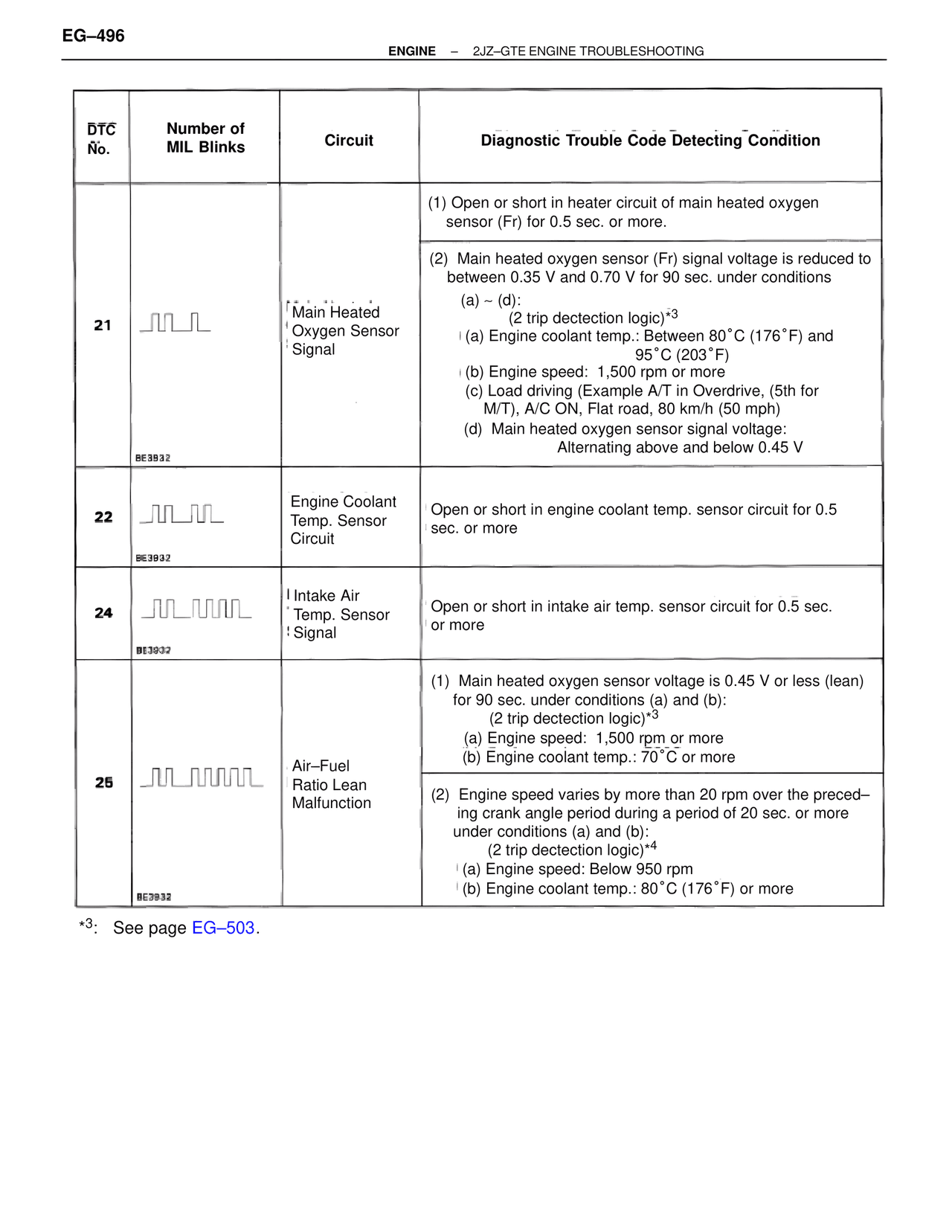

EG–496
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
DTC No. | Number of MIL Blinks | Circuit | Diagnostic Trouble Code Detecting Condition
21
BE3832
Main Heated Oxygen Sensor Signal
(1) Open or short in heater circuit of main heated oxygen sensor (Fr) for 0.5 sec. or more.
(2) Main heated oxygen sensor (Fr) signal voltage is reduced to between 0.35 V and 0.70 V for 90 sec. under conditions
(a) ~ (d):
(2 trip dectection logic)*3
(a) Engine coolant temp.: Between 80°C (176°F) and 95°C (203°F)
(b) Engine speed: 1,500 rpm or more
(c) Load driving (Example A/T in Overdrive, (5th for M/T), A/C ON, Flat road, 80 km/h (50 mph)
(d) Main heated oxygen sensor signal voltage: Alternating above and below 0.45 V
22
BE3932
Engine Coolant Temp. Sensor Circuit
Open or short in engine coolant temp. sensor circuit for 0.5 sec. or more
24
BE3932
Intake Air Temp. Sensor Signal
Open or short in intake air temp. sensor circuit for 0.5 sec. or more
25
BE3932
Air–Fuel Ratio Lean Malfunction
(1) Main heated oxygen sensor voltage is 0.45 V or less (lean) for 90 sec. under conditions (a) and (b):
(2 trip dectection logic)*3
(a) Engine speed: 1,500 rpm or more
(b) Engine coolant temp.: 70°C or more
(2) Engine speed varies by more than 20 rpm over the preceding crank angle period during a period of 20 sec. or more under conditions (a) and (b):
(2 trip dectection logic)*4
(a) Engine speed: Below 950 rpm
(b) Engine coolant temp.: 80°C (176°F) or more
*3: See page EG–503.
