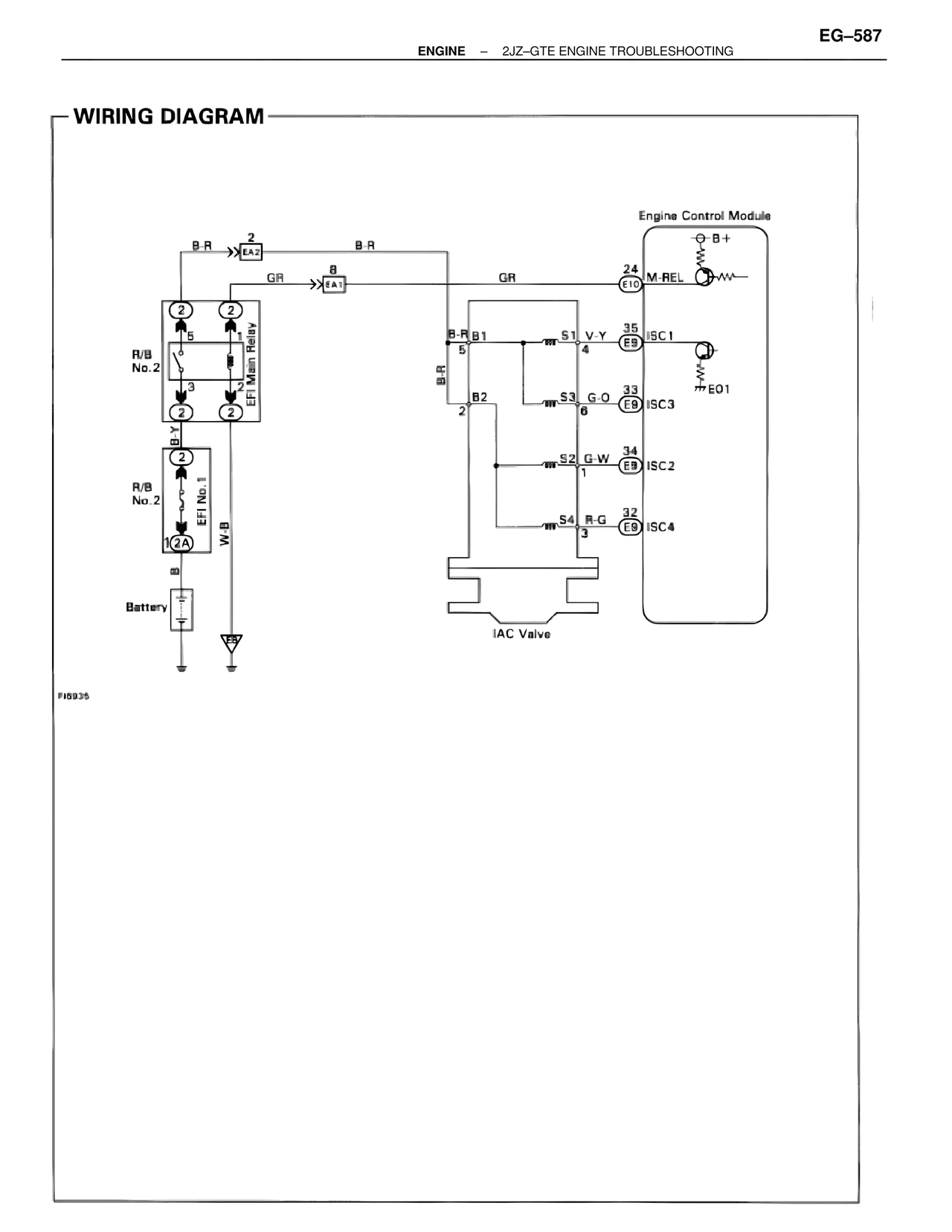

EG–587 ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING WIRING DIAGRAM Engine Control Module B+ B-R >>EA2 B-R GR >>EA1 GR 24 E10 M-REL 2 5 R/B No.2 3 2 2 EFI Main Relay B-R B1 S1 V-Y 35 5 4 E9 ISC1 B-R B2 S3 G-O 33 2 6 E9 ISC3 EO1 B-Y 2 R/B No.2 EFI No.1 S2 G-W 34 1 E9 ISC2 W-B S4 R-G 32 3 E9 ISC4 1 2A Battery IAC Valve FI5935
