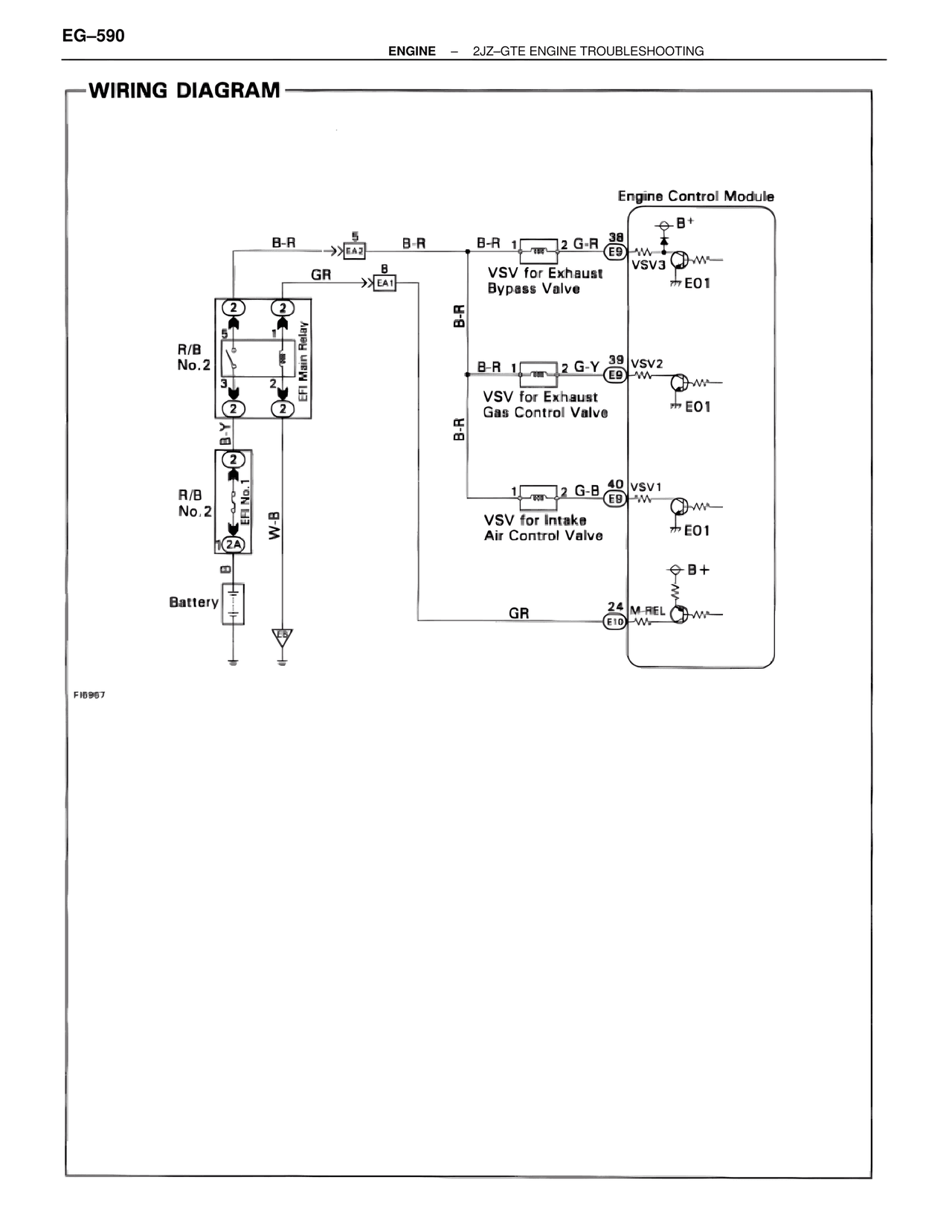

EG–590 ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING WIRING DIAGRAM Engine Control Module B+ VSV3 E01 B-R EA2 5 B-R B-R 1 2 G-R 38 E9 VSV for Exhaust Bypass Valve GR EA1 8 B-R R/B No.2 EFI Main Relay B-R 1 2 G-Y 39 VSV2 E9 VSV for Exhaust Gas Control Valve E01 B-Y R/B No.2 EFI No.1 W-B 1 2 G-B 40 VSV1 E9 VSV for Intake Air Control Valve E01 B+ M-REL GR 24 E10 2A Battery FI6967
