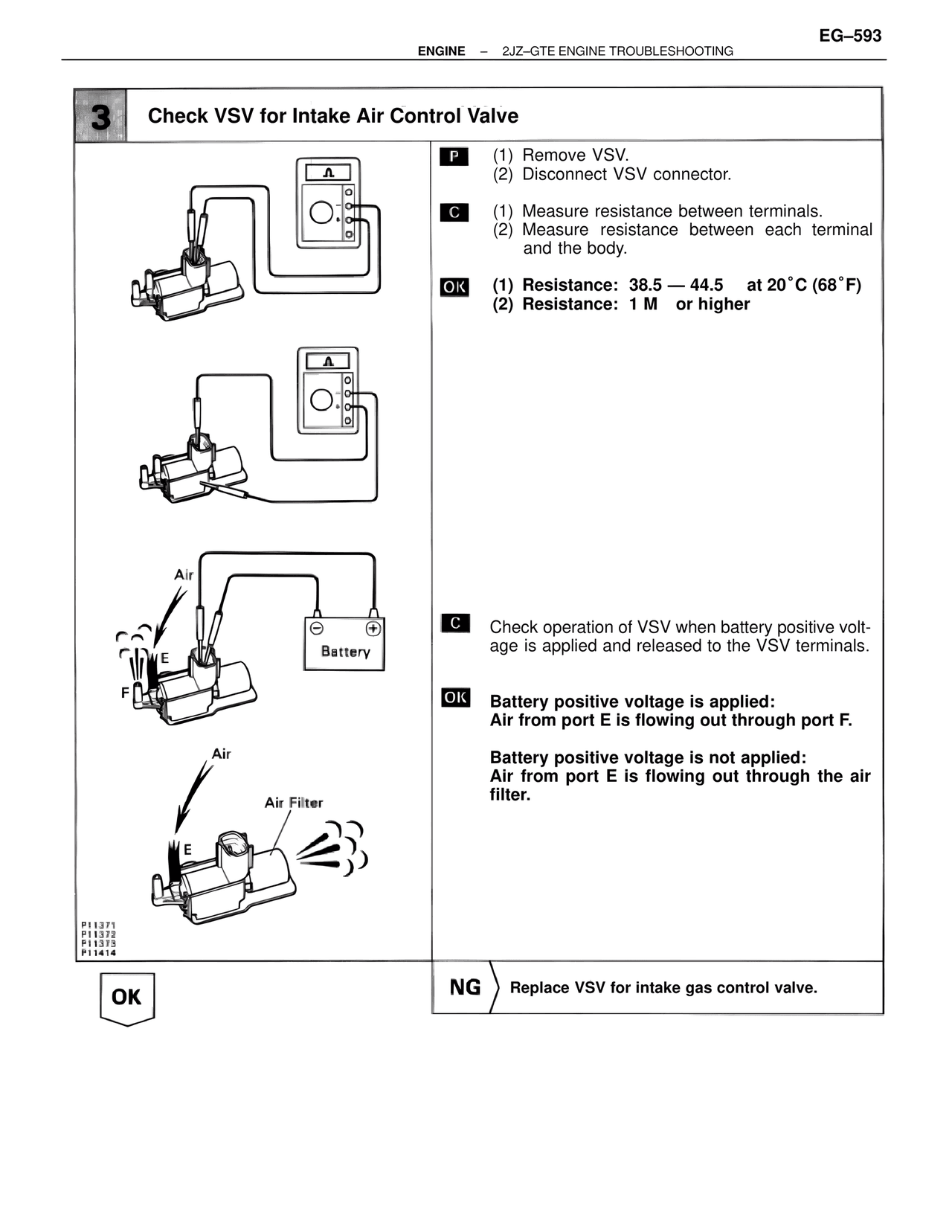

ENGINE — 2JZ-GTE ENGINE TROUBLESHOOTING

3   Check VSV for Intake Air Control Valve

P   (1) Remove VSV.
    (2) Disconnect VSV connector.

C   (1) Measure resistance between terminals.
    (2) Measure resistance between each terminal
        and the body.

OK  (1) Resistance: 38.5 — 44.5   at 20°C (68°F)
    (2) Resistance: 1 M   or higher

C   Check operation of VSV when battery positive volt-
    age is applied and released to the VSV terminals.

OK  Battery positive voltage is applied:
    Air from port E is flowing out through port F.

    Battery positive voltage is not applied:
    Air from port E is flowing out through the air
    filter.

Air

E
F

Battery

Air

Air Filter

E

P11371
P11372
P11373
P11414

OK                  NG   Replace VSV for intake gas control valve.
