EG–596
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
INSPECTION PROCEDURE

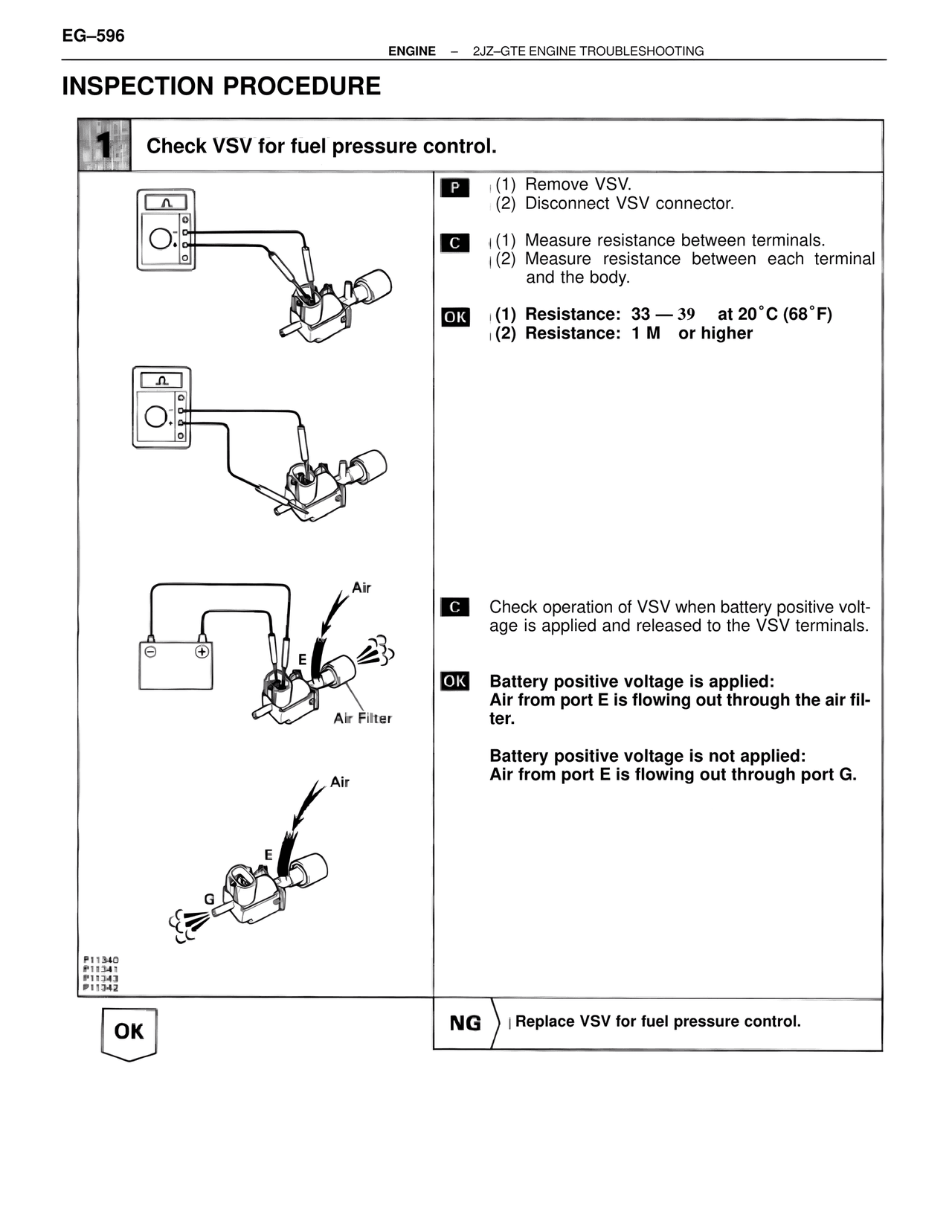

1 Check VSV for fuel pressure control.
P (1) Remove VSV.
(2) Disconnect VSV connector.
C (1) Measure resistance between terminals.
(2) Measure resistance between each terminal
and the body.
OK (1) Resistance: 33 — 39 at 20˚C (68˚F)
(2) Resistance: 1 M or higher
C Check operation of VSV when battery positive volt-
age is applied and released to the VSV terminals.
OK Battery positive voltage is applied:
Air from port E is flowing out through the air fil-
ter.
Battery positive voltage is not applied:
Air from port E is flowing out through port G.
Air
E
Air Filter
Air
E
G
P11340
P11341
P11343
P11342
OK
NG Replace VSV for fuel pressure control.
