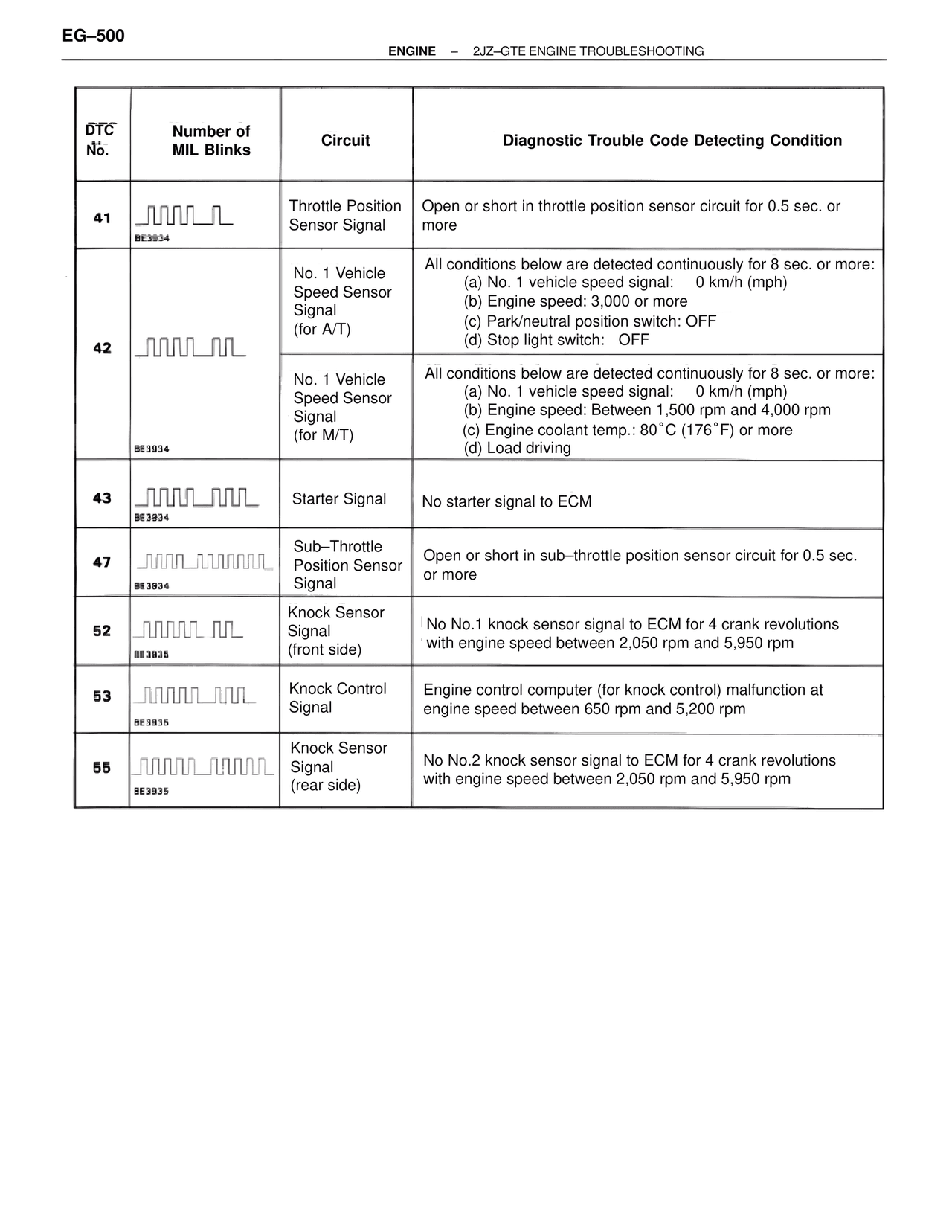

EG–500
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING
DTC No. | Number of MIL Blinks | Circuit | Diagnostic Trouble Code Detecting Condition
41 | BE3934 | Throttle Position Sensor Signal | Open or short in throttle position sensor circuit for 0.5 sec. or more
42 | BE3934 | No. 1 Vehicle Speed Sensor Signal (for A/T) | All conditions below are detected continuously for 8 sec. or more:
(a) No. 1 vehicle speed signal: 0 km/h (mph)
(b) Engine speed: 3,000 or more
(c) Park/neutral position switch: OFF
(d) Stop light switch: OFF
42 | BE3934 | No. 1 Vehicle Speed Sensor Signal (for M/T) | All conditions below are detected continuously for 8 sec. or more:
(a) No. 1 vehicle speed signal: 0 km/h (mph)
(b) Engine speed: Between 1,500 rpm and 4,000 rpm
(c) Engine coolant temp.: 80°C (176°F) or more
(d) Load driving
43 | BE3934 | Starter Signal | No starter signal to ECM
47 | BE3934 | Sub–Throttle Position Sensor Signal | Open or short in sub–throttle position sensor circuit for 0.5 sec. or more
52 | BE3935 | Knock Sensor Signal (front side) | No No.1 knock sensor signal to ECM for 4 crank revolutions with engine speed between 2,050 rpm and 5,950 rpm
53 | BE3935 | Knock Control Signal | Engine control computer (for knock control) malfunction at engine speed between 650 rpm and 5,200 rpm
55 | BE3935 | Knock Sensor Signal (rear side) | No No.2 knock sensor signal to ECM for 4 crank revolutions with engine speed between 2,050 rpm and 5,950 rpm
