EG–557
ENGINE – 2JZ–GTE ENGINE TROUBLESHOOTING

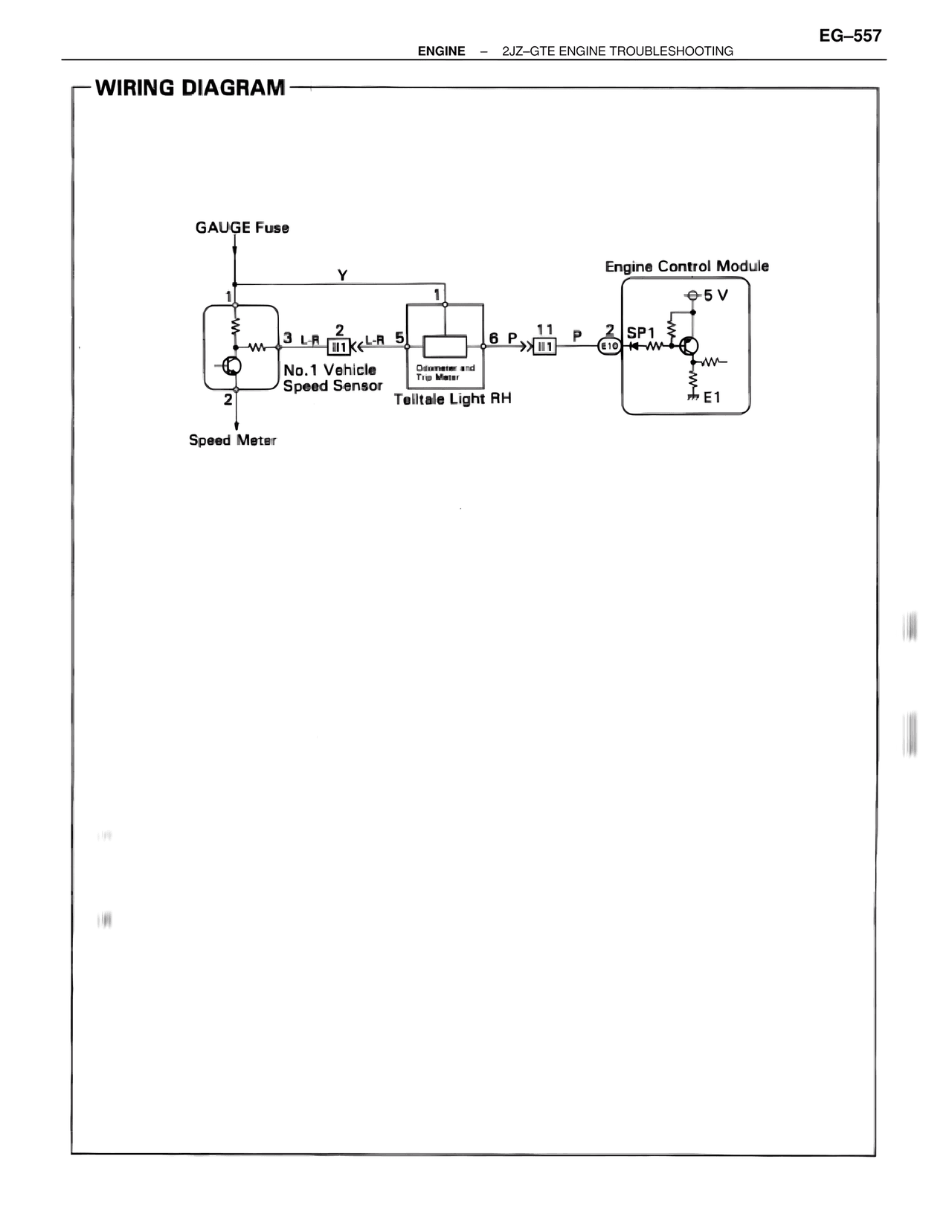

WIRING DIAGRAM
GAUGE Fuse
Y
Engine Control Module
1 ⊕5 V
3 L-R 2 L-R 5 6 P 11 P 2 SP1
II1 ← →II1 E10 ←
No.1 Vehicle Odometer and
Speed Sensor Trip Meter
Telltale Light RH E1
2
Speed Meter
