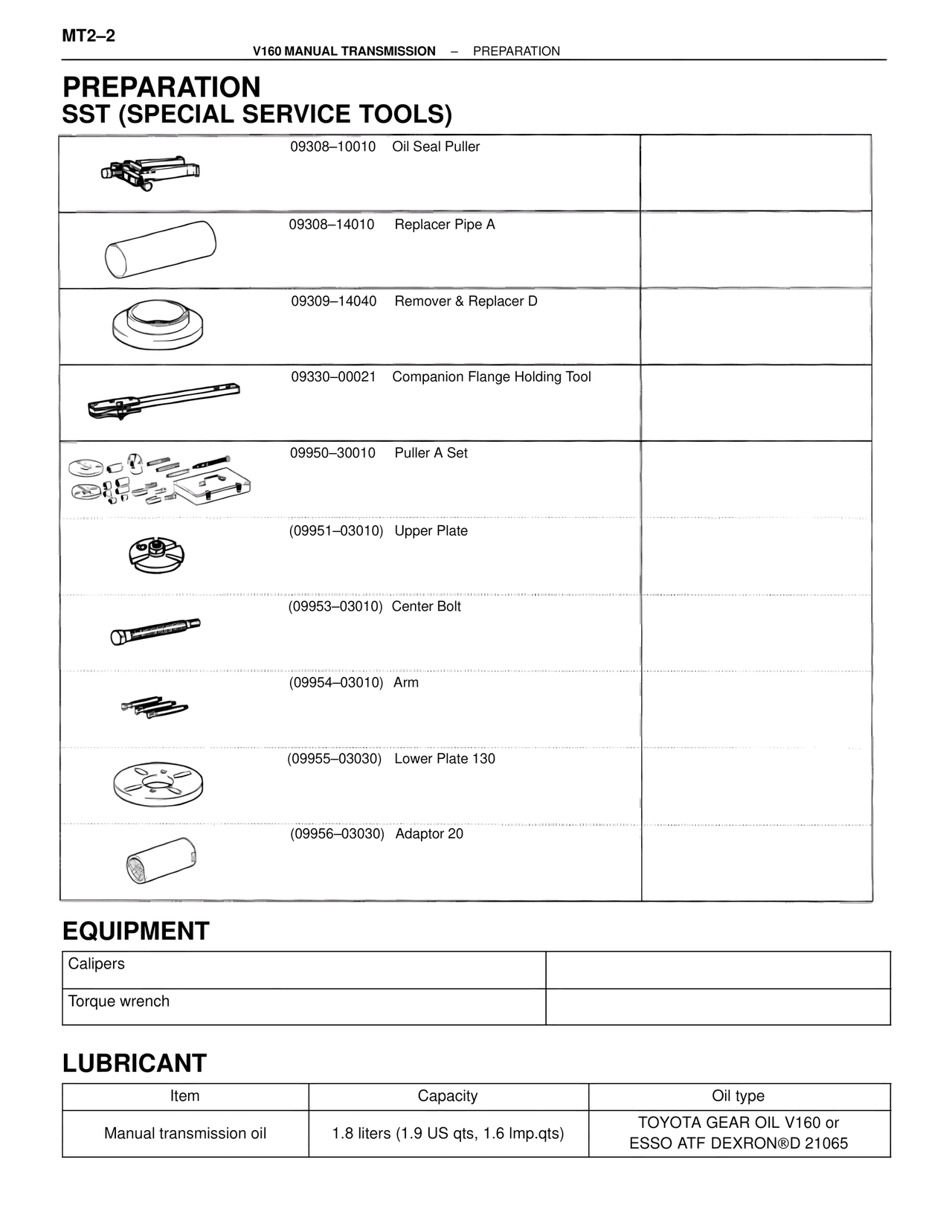

V160/V160/V161 Manual Transmission — Preparation SST (Special Service Tools), page 2

MT2–2
V160 MANUAL TRANSMISSION – PREPARATION

PREPARATION
SST (SPECIAL SERVICE TOOLS)

09308–10010    Oil Seal Puller

09308–14010    Replacer Pipe A

09309–14040    Remover & Replacer D

09330–00021    Companion Flange Holding Tool

09950–30010    Puller A Set

(09951–03010)  Upper Plate

(09953–03010)  Center Bolt

(09954–03010)  Arm

(09955–03030)  Lower Plate 130

(09956–03030)  Adaptor 20

EQUIPMENT

Calipers

Torque wrench

LUBRICANT

Item                          Capacity                              Oil type

Manual transmission oil    1.8 liters (1.9 US qts, 1.6 Imp.qts)    TOYOTA GEAR OIL V160 or
                                                                      ESSO ATF DEXRON®D 21065
