MT1–17

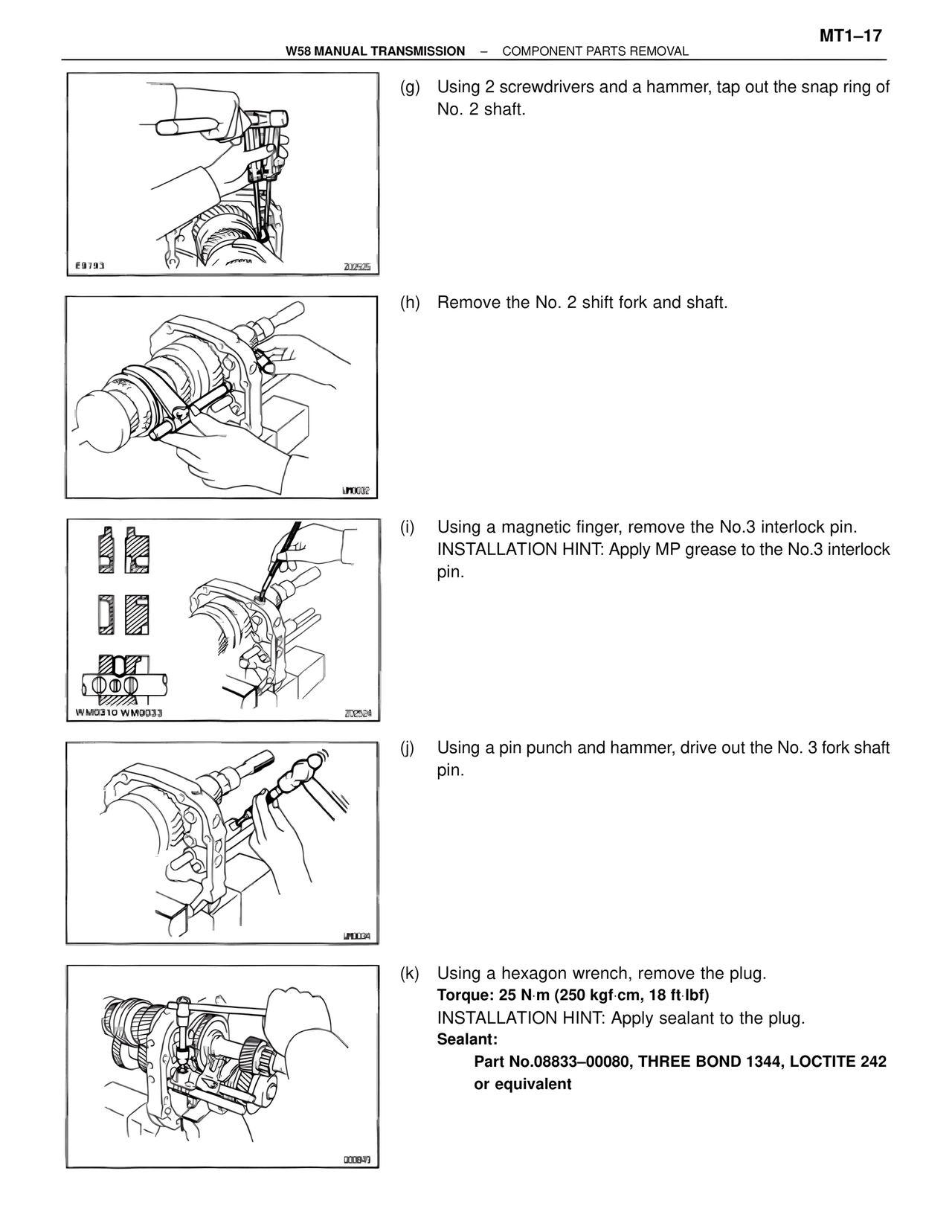

W58 MANUAL TRANSMISSION – COMPONENT PARTS REMOVAL
(g) Using 2 screwdrivers and a hammer, tap out the snap ring of
No. 2 shaft.
E9793 202525
(h) Remove the No. 2 shift fork and shaft.
UP0032
(i) Using a magnetic finger, remove the No.3 interlock pin.
INSTALLATION HINT: Apply MP grease to the No.3 interlock
pin.
WM0310 WM0033 202524
(j) Using a pin punch and hammer, drive out the No. 3 fork shaft
pin.
UP0034
(k) Using a hexagon wrench, remove the plug.
Torque: 25 N·m (250 kgf·cm, 18 ft·lbf)
INSTALLATION HINT: Apply sealant to the plug.
Sealant:
Part No.08833–00080, THREE BOND 1344, LOCTITE 242
or equivalent
000849
