MT1–26

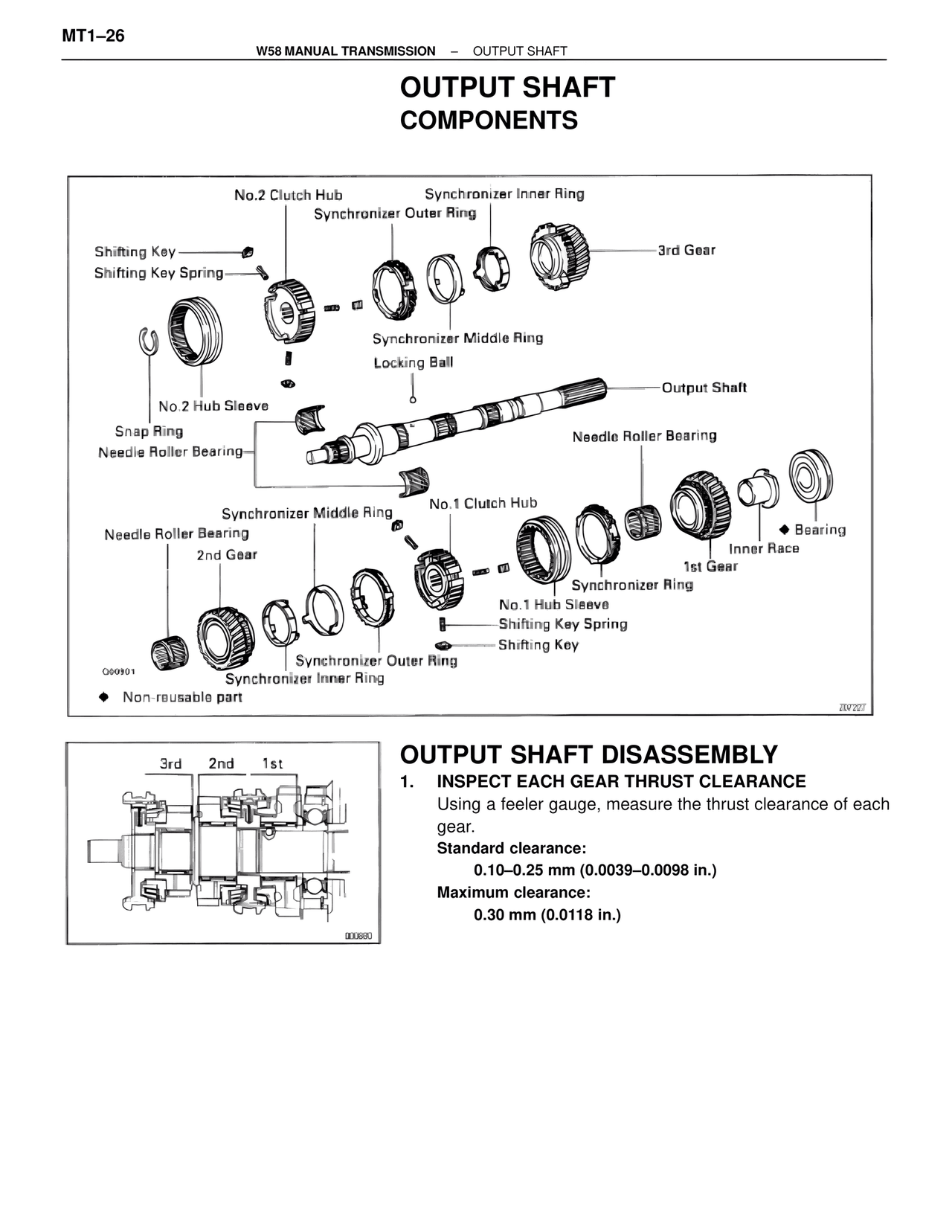

W58 MANUAL TRANSMISSION – OUTPUT SHAFT

OUTPUT SHAFT
COMPONENTS

No.2 Clutch Hub
Synchronizer Inner Ring
Synchronizer Outer Ring
Shifting Key
Shifting Key Spring
Synchronizer Middle Ring
Locking Ball
No.2 Hub Sleeve
Snap Ring
Needle Roller Bearing
No.1 Clutch Hub
Synchronizer Middle Ring
Needle Roller Bearing
2nd Gear
Synchronizer Outer Ring
Synchronizer Inner Ring
3rd Gear
Output Shaft
Needle Roller Bearing
◆ Bearing
Inner Race
1st Gear
Synchronizer Ring
No.1 Hub Sleeve
Shifting Key Spring
Shifting Key

G00301
◆ Non-reusable part
2BV227

3rd  2nd  1st

000880

OUTPUT SHAFT DISASSEMBLY

1.    INSPECT EACH GEAR THRUST CLEARANCE
Using a feeler gauge, measure the thrust clearance of each
gear.
Standard clearance:
0.10–0.25 mm (0.0039–0.0098 in.)
Maximum clearance:
0.30 mm (0.0118 in.)
