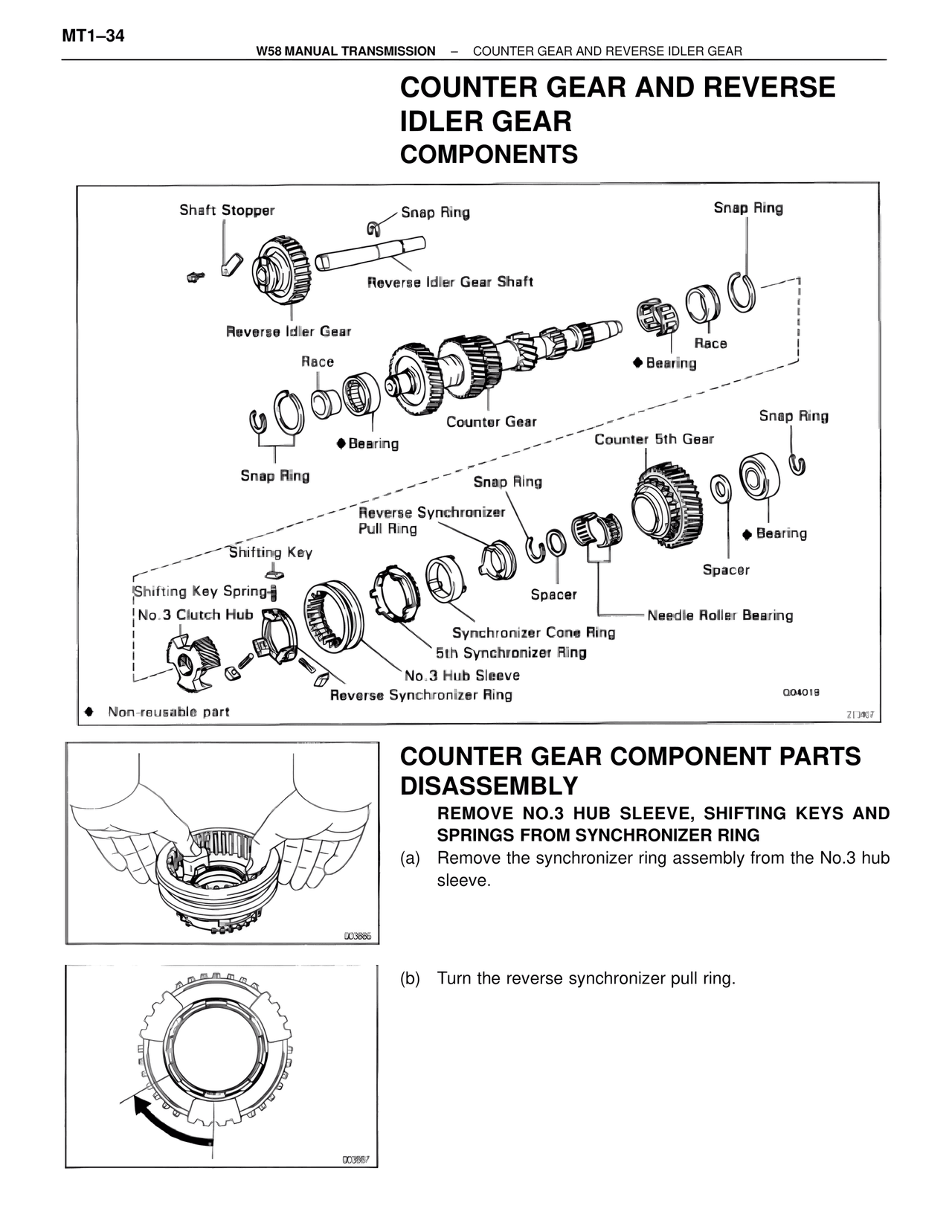

W58/W58 Manual Transmission — Counter Gear and Reverse Idler Gear Components, page 35

MT1–34
W58 MANUAL TRANSMISSION – COUNTER GEAR AND REVERSE IDLER GEAR

COUNTER GEAR AND REVERSE
IDLER GEAR
COMPONENTS

Shaft Stopper
Snap Ring
Snap Ring
Reverse Idler Gear Shaft
Reverse Idler Gear
Race
Race
♦ Bearing
♦ Bearing
Counter Gear
Snap Ring
Counter 5th Gear
Snap Ring
Snap Ring
Reverse Synchronizer
Pull Ring
♦ Bearing
Shifting Key
Spacer
Spacer
Shifting Key Spring
Needle Roller Bearing
No.3 Clutch Hub
Synchronizer Cone Ring
5th Synchronizer Ring
No.3 Hub Sleeve
Reverse Synchronizer Ring

G04019
ZI3407

♦ Non-reusable part

COUNTER GEAR COMPONENT PARTS
DISASSEMBLY

REMOVE NO.3 HUB SLEEVE, SHIFTING KEYS AND
SPRINGS FROM SYNCHRONIZER RING
(a) Remove the synchronizer ring assembly from the No.3 hub
sleeve.

G03886

(b) Turn the reverse synchronizer pull ring.

G03887
