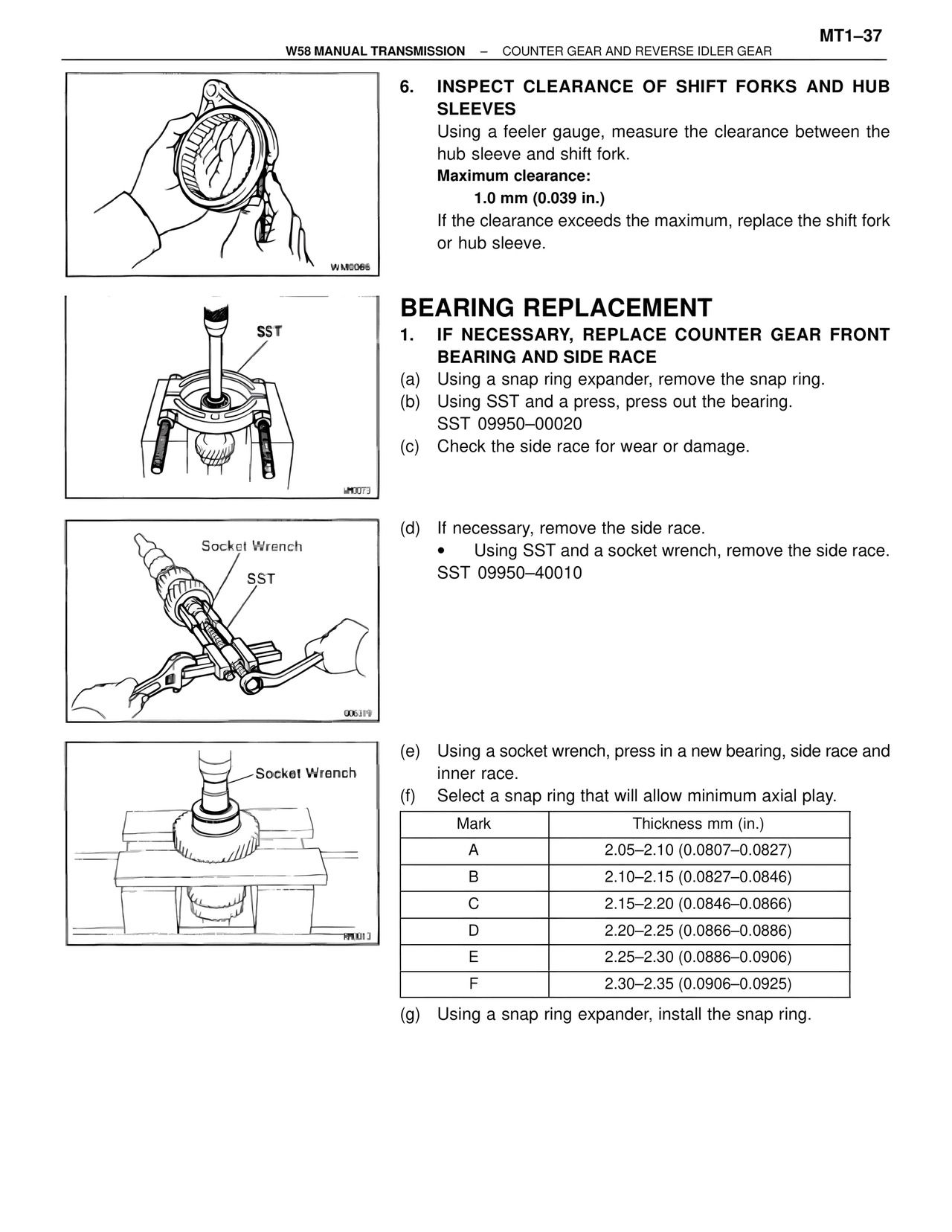

MT1–37
W58 MANUAL TRANSMISSION – COUNTER GEAR AND REVERSE IDLER GEAR
WM0066
6. INSPECT CLEARANCE OF SHIFT FORKS AND HUB SLEEVES
Using a feeler gauge, measure the clearance between the hub sleeve and shift fork.
Maximum clearance:
1.0 mm (0.039 in.)
If the clearance exceeds the maximum, replace the shift fork or hub sleeve.
SST
WM0073
BEARING REPLACEMENT
1. IF NECESSARY, REPLACE COUNTER GEAR FRONT BEARING AND SIDE RACE
(a) Using a snap ring expander, remove the snap ring.
(b) Using SST and a press, press out the bearing.
SST 09950–00020
(c) Check the side race for wear or damage.
Socket Wrench
SST
006319
(d) If necessary, remove the side race.
• Using SST and a socket wrench, remove the side race.
SST 09950–40010
Socket Wrench
RP0013
(e) Using a socket wrench, press in a new bearing, side race and inner race.
(f) Select a snap ring that will allow minimum axial play.
Mark | Thickness mm (in.)
A | 2.05–2.10 (0.0807–0.0827)
B | 2.10–2.15 (0.0827–0.0846)
C | 2.15–2.20 (0.0846–0.0866)
D | 2.20–2.25 (0.0866–0.0886)
E | 2.25–2.30 (0.0886–0.0906)
F | 2.30–2.35 (0.0906–0.0925)
(g) Using a snap ring expander, install the snap ring.
