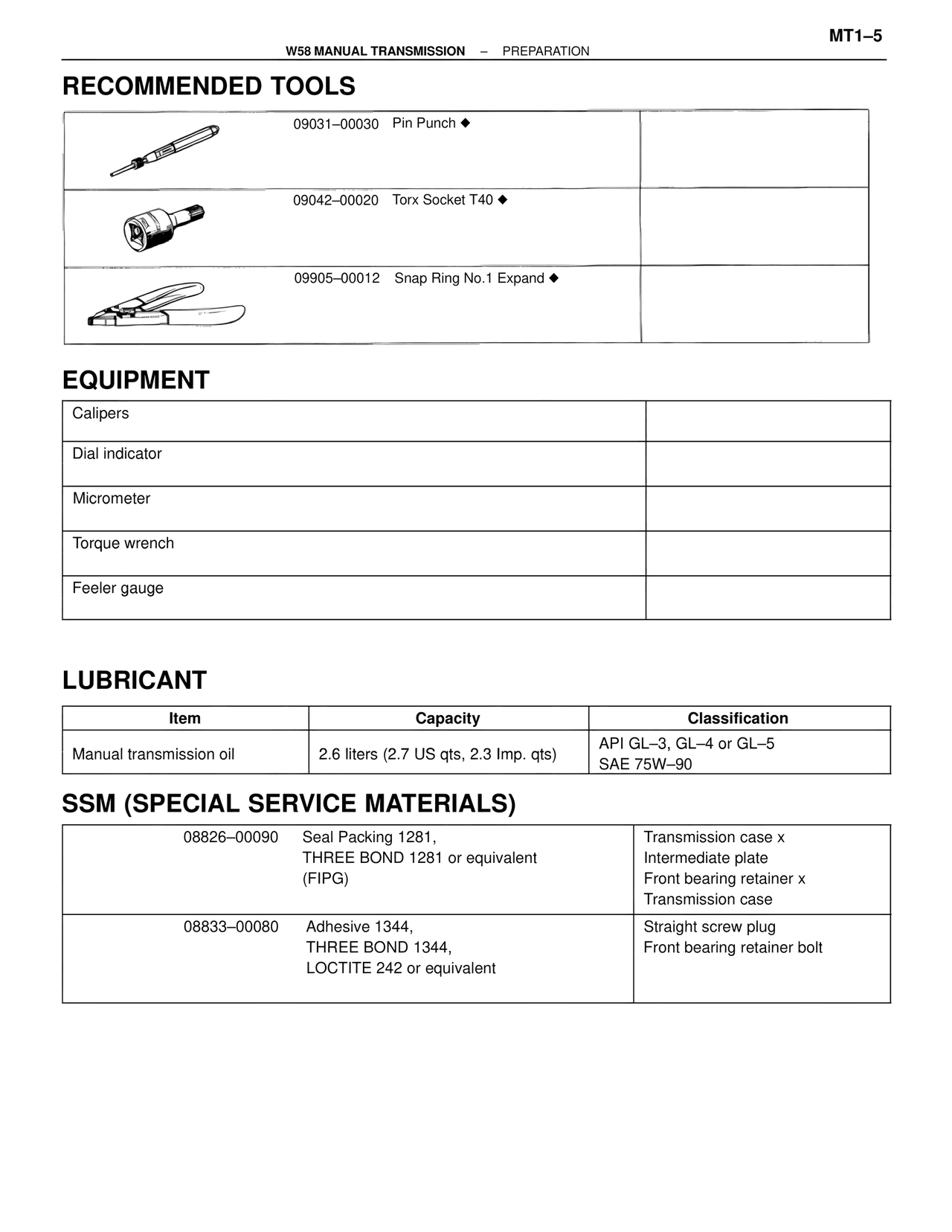

RECOMMENDED TOOLS
09031–00030 Pin Punch ◆
09042–00020 Torx Socket T40 ◆
09905–00012 Snap Ring No.1 Expand ◆
EQUIPMENT
Calipers
Dial indicator
Micrometer
Torque wrench
Feeler gauge
LUBRICANT
Item Capacity Classification
Manual transmission oil 2.6 liters (2.7 US qts, 2.3 Imp. qts) API GL–3, GL–4 or GL–5
SAE 75W–90
SSM (SPECIAL SERVICE MATERIALS)
08826–00090 Seal Packing 1281,
THREE BOND 1281 or equivalent
(FIPG) Transmission case x
Intermediate plate
Front bearing retainer x
Transmission case
08833–00080 Adhesive 1344,
THREE BOND 1344,
LOCTITE 242 or equivalent Straight screw plug
Front bearing retainer bolt
