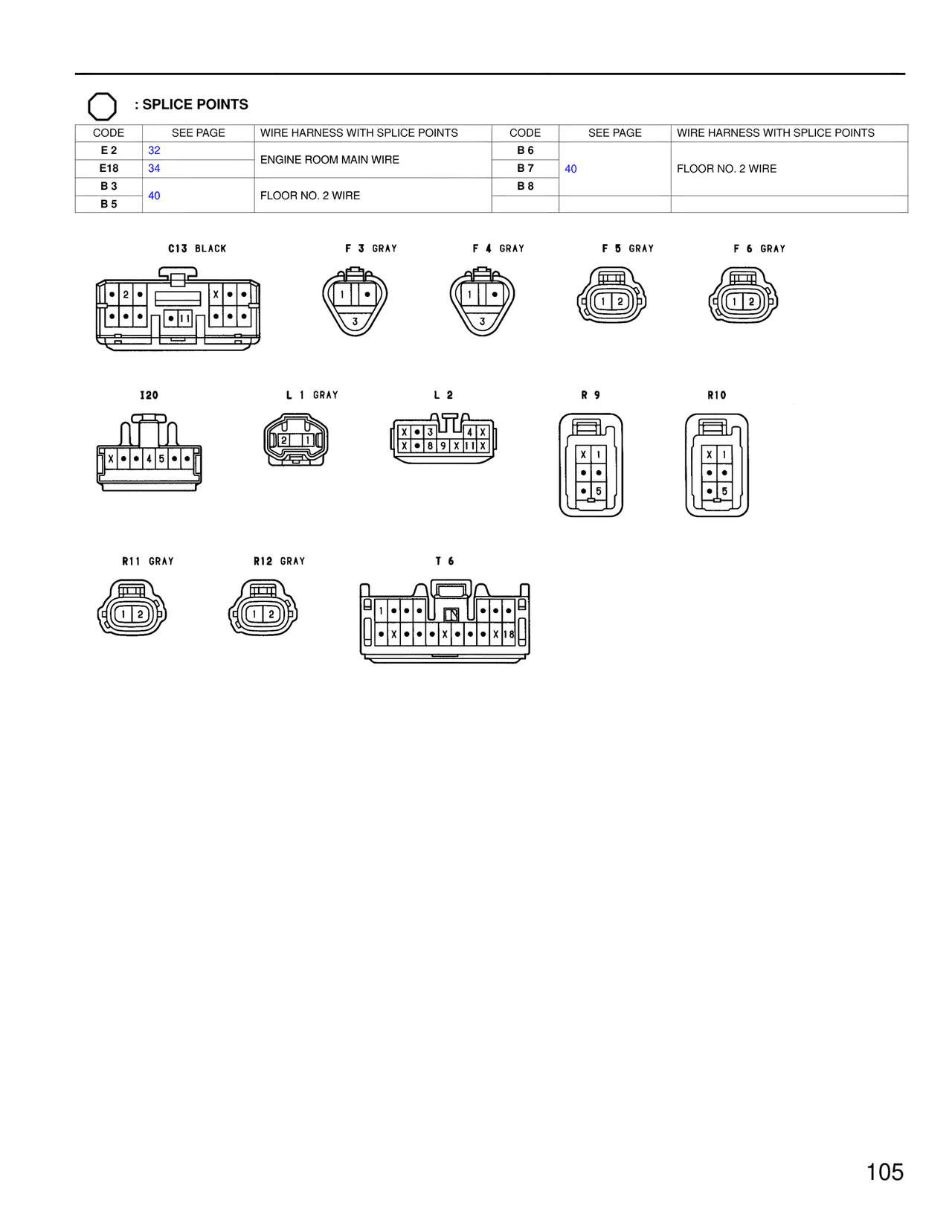

: SPLICE POINTS CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS E 2 | 32 | ENGINE ROOM MAIN WIRE | B 6 | | E18 | 34 | ENGINE ROOM MAIN WIRE | B 7 | 40 | FLOOR NO. 2 WIRE B 3 | 40 | FLOOR NO. 2 WIRE | B 8 | | B 5 | 40 | FLOOR NO. 2 WIRE | | | C13 BLACK F 3 GRAY F 4 GRAY F 5 GRAY F 6 GRAY I20 L 1 GRAY L 2 R 9 R10 R11 GRAY R12 GRAY T 6 105
