WD/Wiring Diagrams, page 126

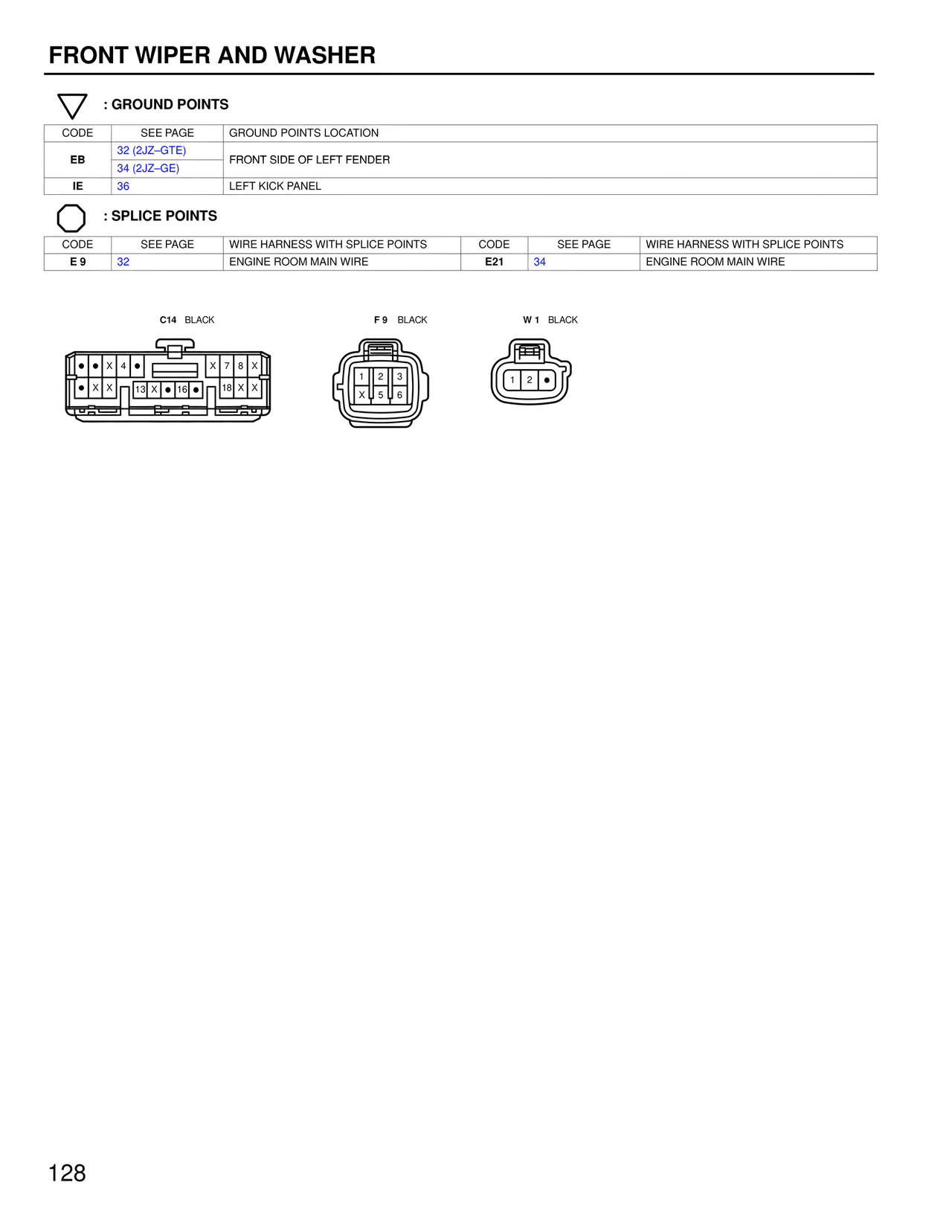

FRONT WIPER AND WASHER

: GROUND POINTS

CODE	SEE PAGE	GROUND POINTS LOCATION
EB	32 (2JZ–GTE)	 FRONT SIDE OF LEFT FENDER
	34 (2JZ–GE)
IE	36	LEFT KICK PANEL

: SPLICE POINTS

CODE	SEE PAGE	WIRE HARNESS WITH SPLICE POINTS	CODE	SEE PAGE	WIRE HARNESS WITH SPLICE POINTS
E 9	32	ENGINE ROOM MAIN WIRE	E21	34	ENGINE ROOM MAIN WIRE

C14  BLACK

F 9  BLACK

W 1  BLACK

128
