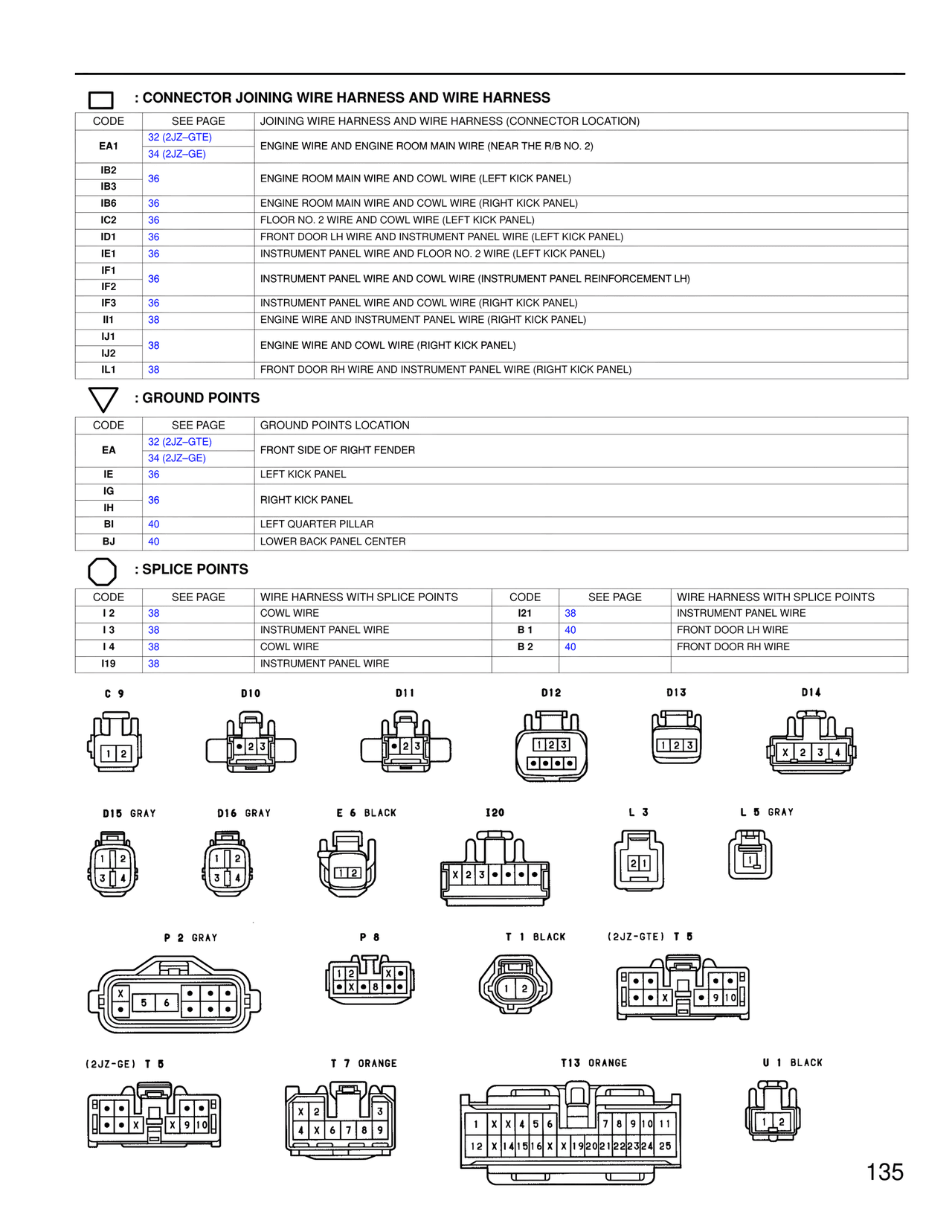

: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
EA1 32 (2JZ–GTE) ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2)
34 (2JZ–GE)
IB2 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL)
IB3 36
IB6 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL)
IC2 36 FLOOR NO. 2 WIRE AND COWL WIRE (LEFT KICK PANEL)
ID1 36 FRONT DOOR LH WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL)
IE1 36 INSTRUMENT PANEL WIRE AND FLOOR NO. 2 WIRE (LEFT KICK PANEL)
IF1 36 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH)
IF2 36
IF3 36 INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL)
II1 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
IJ1 38 ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)
IJ2 38
IL1 38 FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
: GROUND POINTS
CODE SEE PAGE GROUND POINTS LOCATION
EA 32 (2JZ–GTE) FRONT SIDE OF RIGHT FENDER
34 (2JZ–GE)
IE 36 LEFT KICK PANEL
IG 36 RIGHT KICK PANEL
IH 36
BI 40 LEFT QUARTER PILLAR
BJ 40 LOWER BACK PANEL CENTER
: SPLICE POINTS
CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS
I 2 38 COWL WIRE I21 38 INSTRUMENT PANEL WIRE
I 3 38 INSTRUMENT PANEL WIRE B 1 40 FRONT DOOR LH WIRE
I 4 38 COWL WIRE B 2 40 FRONT DOOR RH WIRE
I19 38 INSTRUMENT PANEL WIRE
C 9
D10
D11
D12
D13
D14
D15 GRAY
D16 GRAY
E 6 BLACK
I20
L 3
L 5 GRAY
P 2 GRAY
P 8
T 1 BLACK
(2JZ-GTE) T 5
(2JZ-GE) T 5
T 7 ORANGE
T13 ORANGE
U 1 BLACK
135
