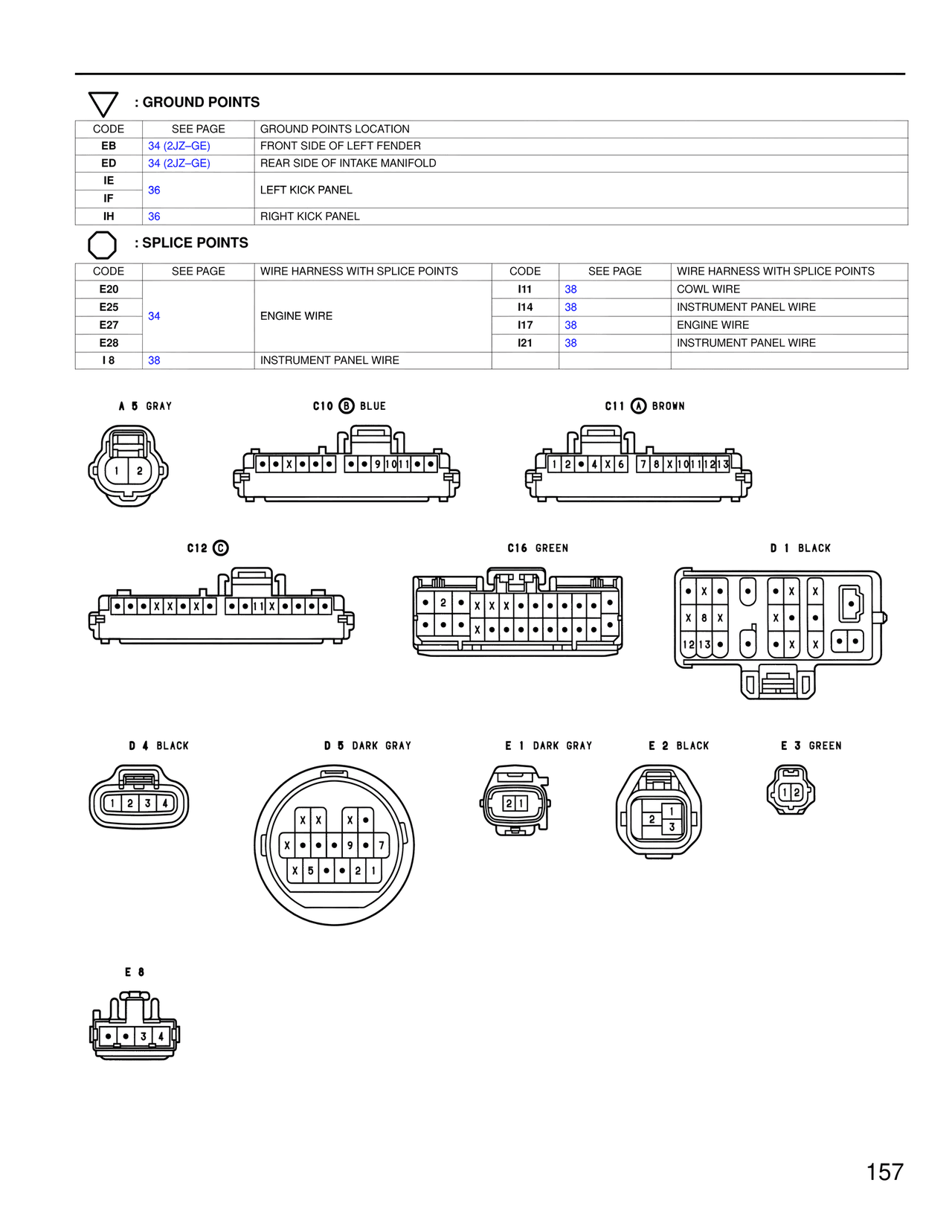

: GROUND POINTS

CODE | SEE PAGE | GROUND POINTS LOCATION
EB | 34 (2JZ–GE) | FRONT SIDE OF LEFT FENDER
ED | 34 (2JZ–GE) | REAR SIDE OF INTAKE MANIFOLD
IE |
 IF | 36 | LEFT KICK PANEL
IH | 36 | RIGHT KICK PANEL

: SPLICE POINTS

CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS | CODE | SEE PAGE | WIRE HARNESS WITH SPLICE POINTS
E20 |
E25 | 34 | ENGINE WIRE | I11 | 38 | COWL WIRE
E27 | | | I14 | 38 | INSTRUMENT PANEL WIRE
E28 | | | I17 | 38 | ENGINE WIRE
I 8 | 38 | INSTRUMENT PANEL WIRE | I21 | 38 | INSTRUMENT PANEL WIRE

A 5 GRAY
1 2

C10 B BLUE
X X 9 10 11

C11 A BROWN
1 2 4 X 6 7 8 X 10 11 12 13

C12 C
X X X X 1 X

C16 GREEN
2 X X X
X

D 1 BLACK
X X X
X 8 X X
12 13 X X

D 4 BLACK
1 2 3 4

D 5 DARK GRAY
X X X
X 9 7
X 5 2 1

E 1 DARK GRAY
2 1

E 2 BLACK
2
3

E 3 GREEN
1 2

E 8
3 4
