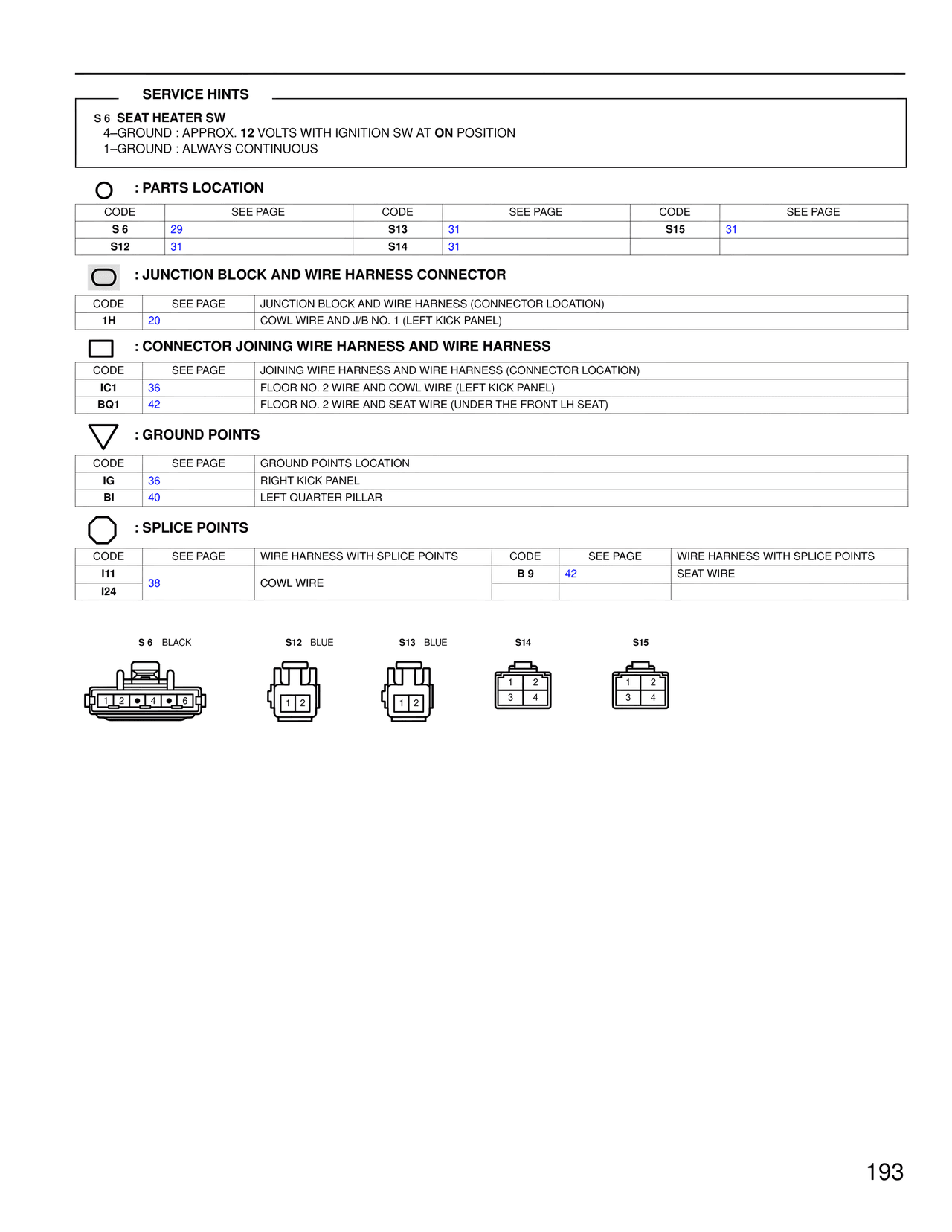

SERVICE HINTS
S 6 SEAT HEATER SW
4–GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
1–GROUND : ALWAYS CONTINUOUS
: PARTS LOCATION
CODE SEE PAGE CODE SEE PAGE CODE SEE PAGE
S 6 29 S13 31 S15 31
S12 31 S14 31
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1H 20 COWL WIRE AND J/B NO. 1 (LEFT KICK PANEL)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IC1 36 FLOOR NO. 2 WIRE AND COWL WIRE (LEFT KICK PANEL)
BQ1 42 FLOOR NO. 2 WIRE AND SEAT WIRE (UNDER THE FRONT LH SEAT)
: GROUND POINTS
CODE SEE PAGE GROUND POINTS LOCATION
IG 36 RIGHT KICK PANEL
BI 40 LEFT QUARTER PILLAR
: SPLICE POINTS
CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS
I11 38 COWL WIRE B 9 42 SEAT WIRE
I24
S 6 BLACK
S12 BLUE
S13 BLUE
S14
S15
193
