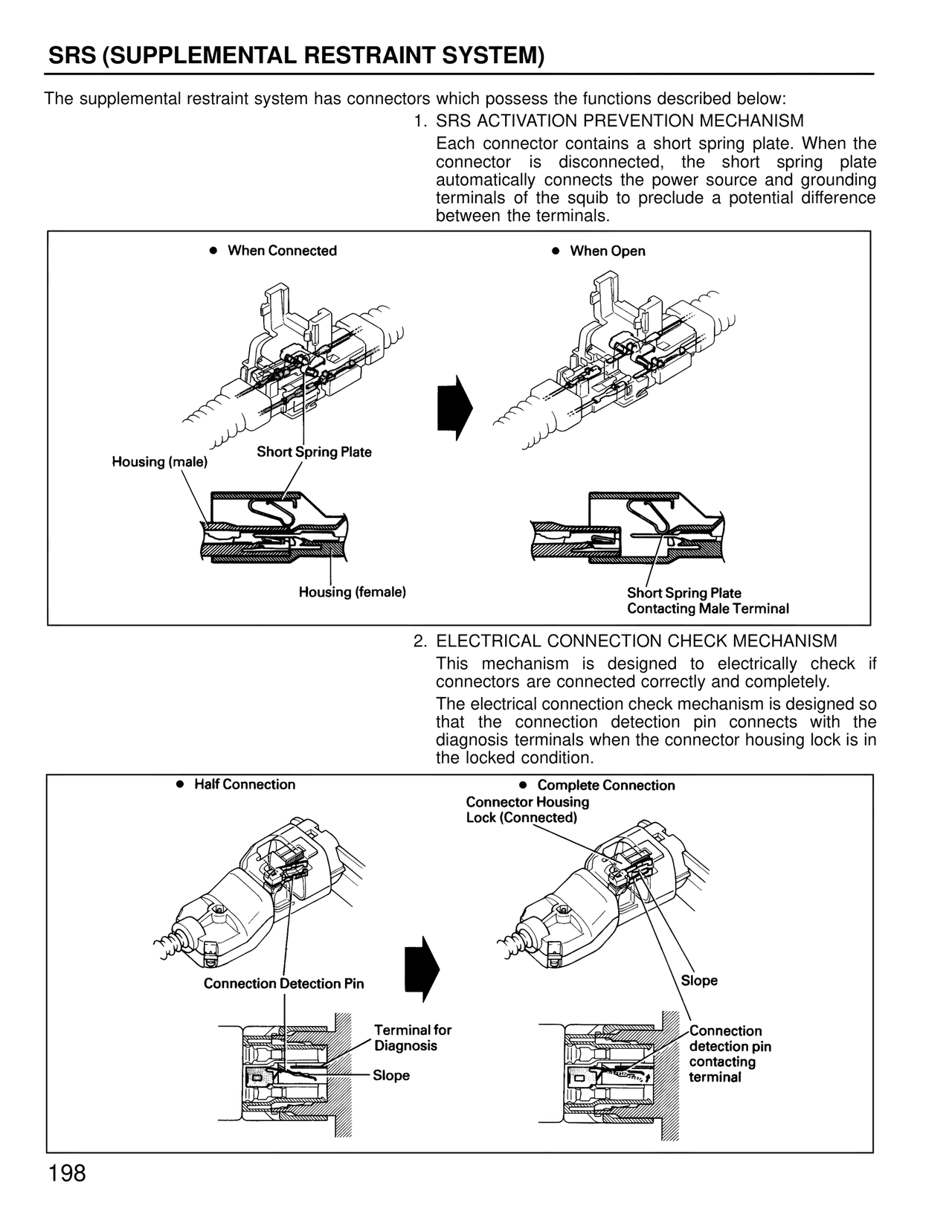

SRS (SUPPLEMENTAL RESTRAINT SYSTEM)

The supplemental restraint system has connectors which possess the functions described below:

1. SRS ACTIVATION PREVENTION MECHANISM

Each connector contains a short spring plate. When the connector is disconnected, the short spring plate automatically connects the power source and grounding terminals of the squib to preclude a potential difference between the terminals.

• When Connected

• When Open

Housing (male)

Short Spring Plate

Housing (female)

Short Spring Plate
Contacting Male Terminal

2. ELECTRICAL CONNECTION CHECK MECHANISM

This mechanism is designed to electrically check if connectors are connected correctly and completely.

The electrical connection check mechanism is designed so that the connection detection pin connects with the diagnosis terminals when the connector housing lock is in the locked condition.

• Half Connection

• Complete Connection
Connector Housing
Lock (Connected)

Connection Detection Pin

Terminal for
Diagnosis

Slope

Slope

Connection
detection pin
contacting
terminal
