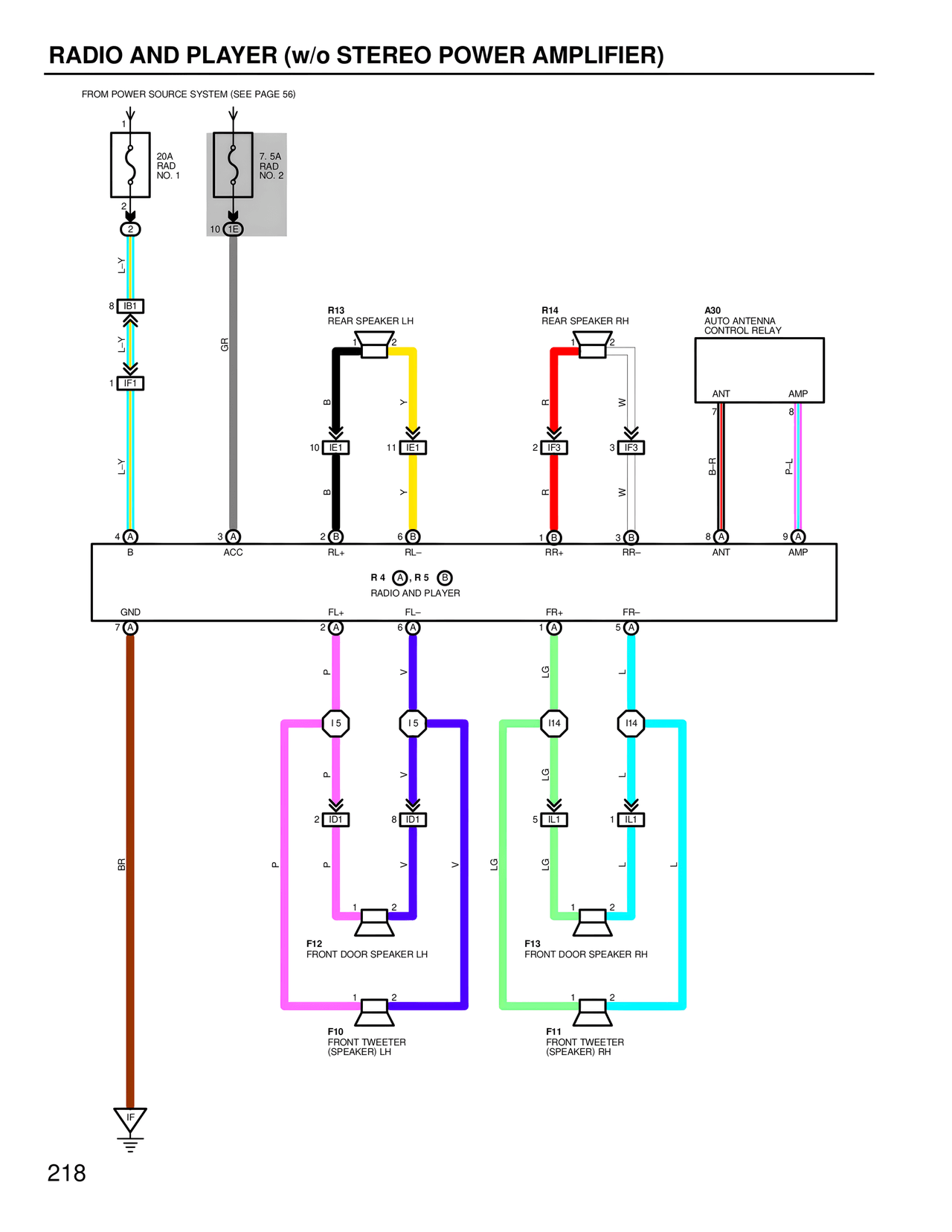

RADIO AND PLAYER (w/o STEREO POWER AMPLIFIER)
FROM POWER SOURCE SYSTEM (SEE PAGE 56)
1
20A
RAD
NO. 1
7. 5A
RAD
NO. 2
2
2
10 1E
L-Y
8 IB1
L-Y
1 IF1
GR
L-Y
R13
REAR SPEAKER LH
1 2
B Y
10 IE1 11 IE1
B Y
R14
REAR SPEAKER RH
1 2
R W
2 IF3 3 IF3
R W
A30
AUTO ANTENNA
CONTROL RELAY
ANT AMP
7 8
P-R P-L
4 A 3 A 2 B 6 B 1 B 3 B 8 A 9 A
B ACC RL+ RL- RR+ RR- ANT AMP
R 4 A , R 5 B
RADIO AND PLAYER
GND FL+ FL- FR+ FR-
7 A 2 A 6 A 1 A 5 A
P V LG L
I5 I5 I14 I14
P V LG L
2 ID1 8 ID1 5 IL1 1 IL1
P P V V LG LG L L
1 2 1 2
F12 F13
FRONT DOOR SPEAKER LH FRONT DOOR SPEAKER RH
1 2 1 2
F10 F11
FRONT TWEETER FRONT TWEETER
(SPEAKER) LH (SPEAKER) RH
