*1 : 2JZ-GTE
*2 : 2JZ-GE
H12 A , H13 B

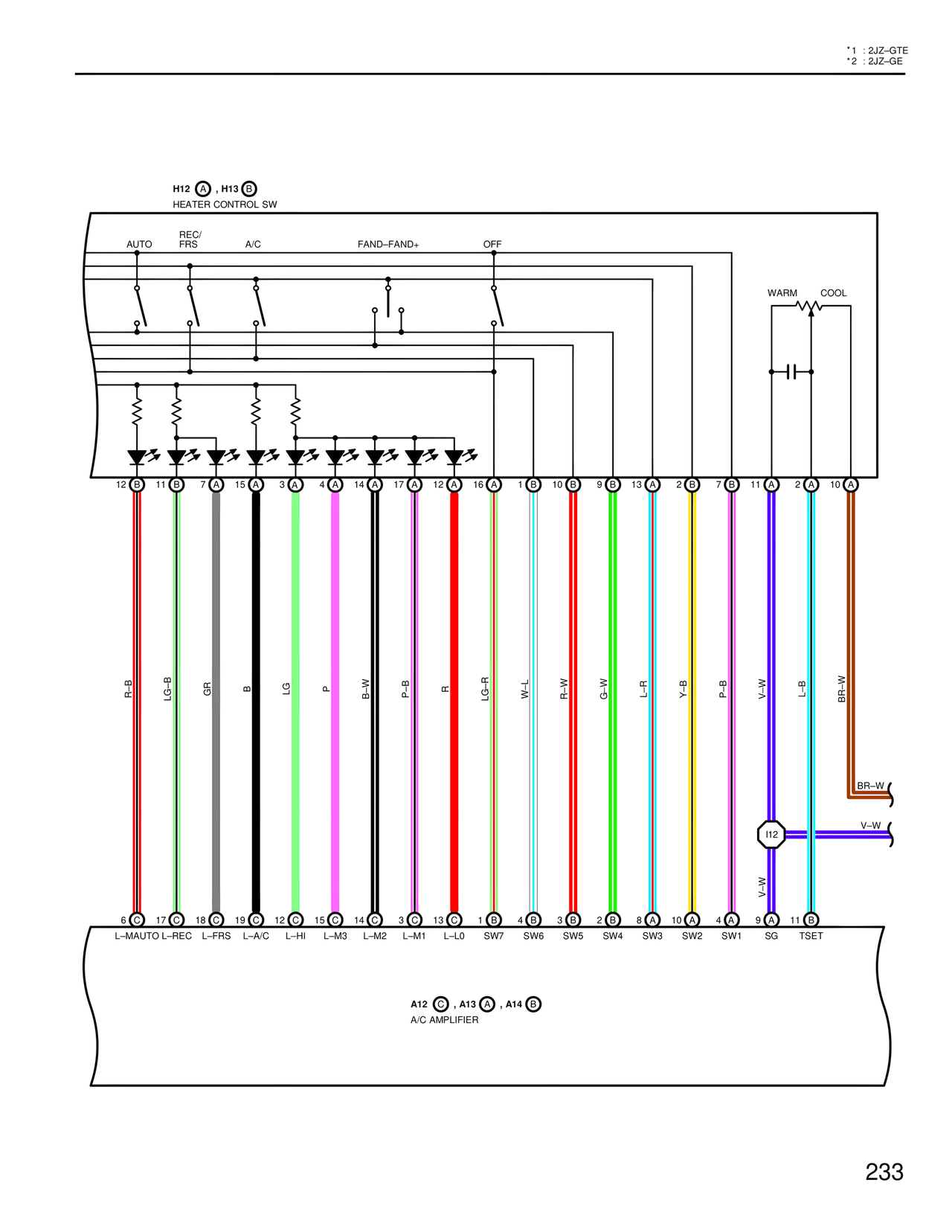

HEATER CONTROL SW
AUTO REC/FRS A/C FAND–FAND+ OFF
WARM COOL
12 B 11 B 7 B 15 A 3 A 4 B 14 A 17 A 12 A 16 A 1 B 10 B 9 B 13 A 2 B 7 B 11 A 2 A 10 A
R–B LG–B GR B LG P B–W P–B R LG–R W–L R–W G–W L–R Y–B P–B V–W L–B BR–W
I12
BR–W
V–W
V–W
6 C 17 C 18 C 19 C 12 C 15 C 14 C 3 C 13 C 1 B 4 B 3 B 2 B 8 A 10 A 4 A 9 A 11 B
L–MAUTO L–REC L–FRS L–A/C L–HI L–M3 L–M2 L–M1 L–L0 SW7 SW6 SW5 SW4 SW3 SW2 SW1 SG TSET
A12 C , A13 A , A14 B
A/C AMPLIFIER
