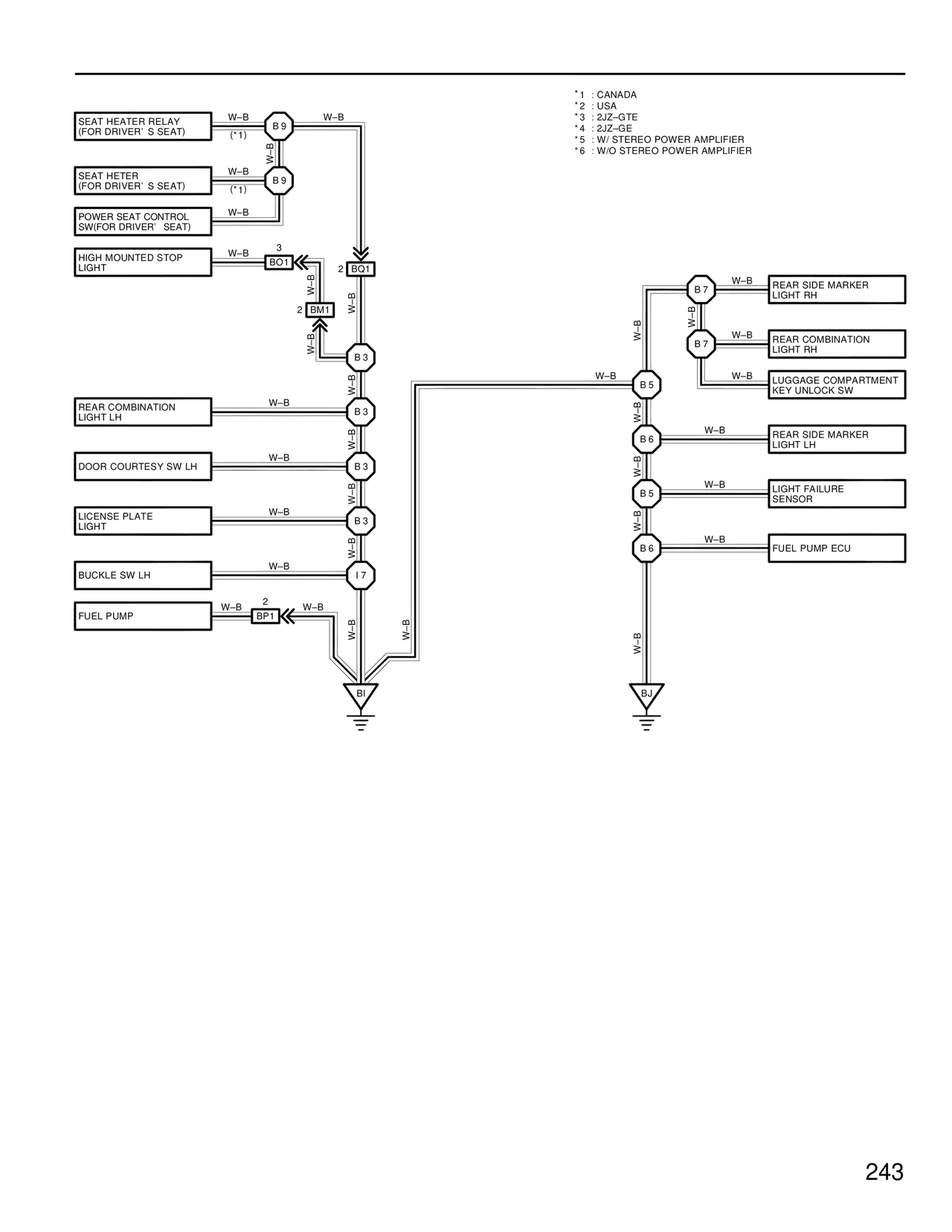

*1 : CANADA
*2 : USA
*3 : 2JZ-GTE
*4 : 2JZ-GE
*5 : W/ STEREO POWER AMPLIFIER
*6 : W/O STEREO POWER AMPLIFIER
SEAT HEATER RELAY
(FOR DRIVER'S SEAT)
W-B
(*1)
B9
W-B
SEAT HETER
(FOR DRIVER'S SEAT)
W-B
(*1)
B9
POWER SEAT CONTROL
SW(FOR DRIVER'S SEAT)
W-B
HIGH MOUNTED STOP
LIGHT
W-B
3
BO1
2
BQ1
2
BM1
B3
REAR COMBINATION
LIGHT LH
W-B
B3
DOOR COURTESY SW LH
W-B
B3
LICENSE PLATE
LIGHT
W-B
B3
BUCKLE SW LH
W-B
I7
FUEL PUMP
W-B
2
BP1
W-B
BI
W-B
B7
REAR SIDE MARKER
LIGHT RH
W-B
B7
REAR COMBINATION
LIGHT RH
W-B
B5
W-B
LUGGAGE COMPARTMENT
KEY UNLOCK SW
W-B
B6
W-B
REAR SIDE MARKER
LIGHT LH
W-B
B5
W-B
LIGHT FAILURE
SENSOR
W-B
B6
W-B
FUEL PUMP ECU
BJ
243
