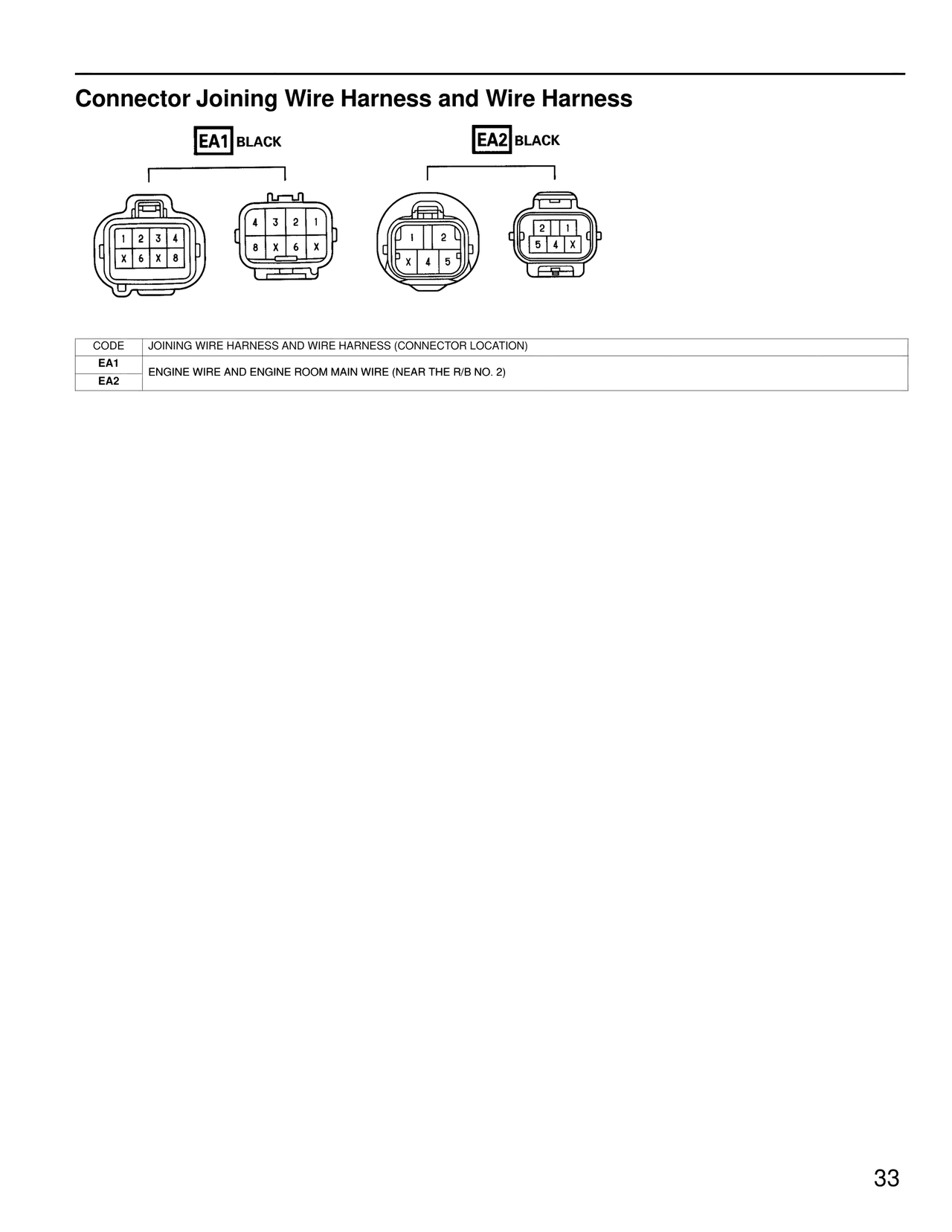

Connector Joining Wire Harness and Wire Harness

EA1 BLACK

EA2 BLACK

4  3  2  1
1  2  3  4
X  6  X  8
8  X  6  X

1  2
X  4  5
2  1
5  4  X

CODE  JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
EA1
EA2   ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2)

33
