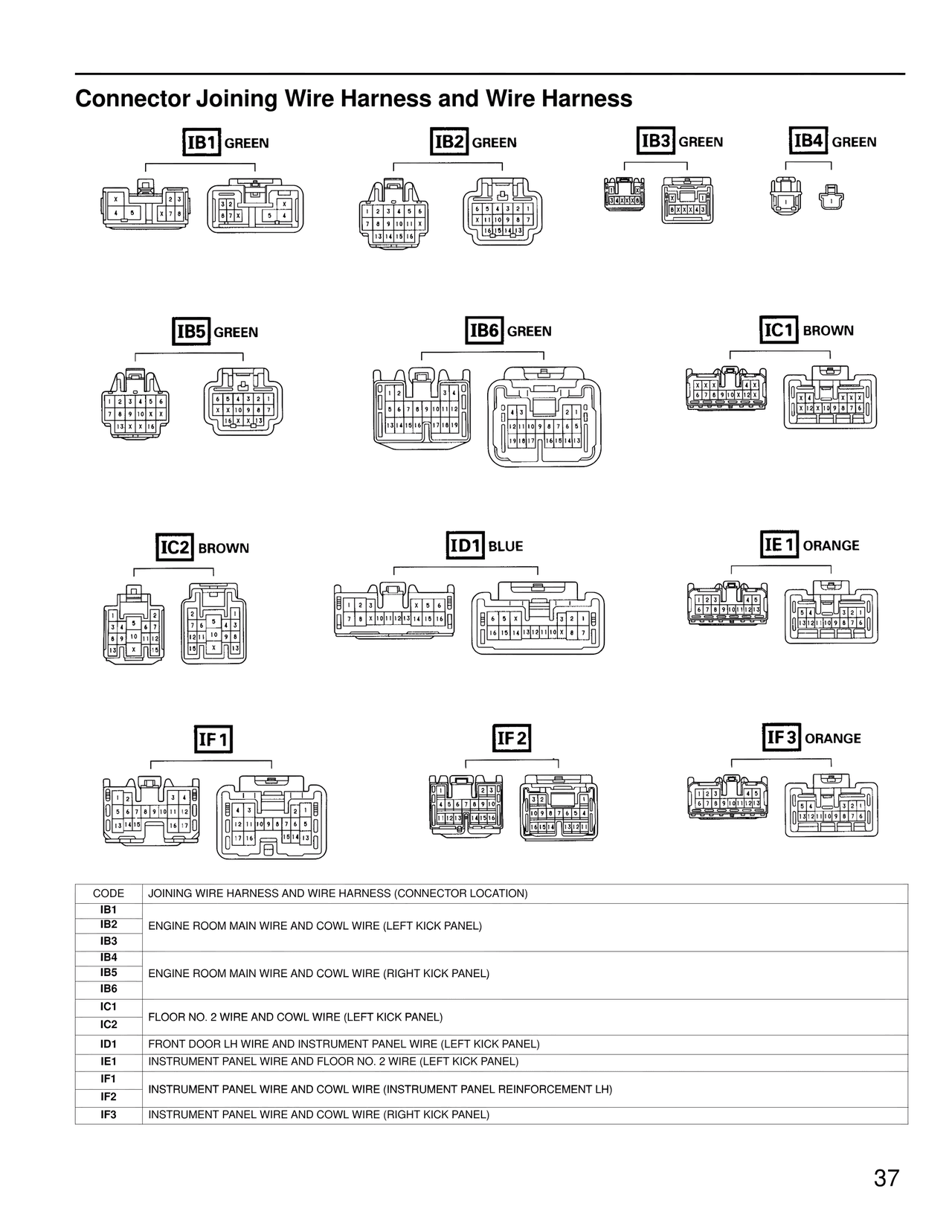

Connector Joining Wire Harness and Wire Harness
IB1 GREEN
IB2 GREEN
IB3 GREEN
IB4 GREEN
IB5 GREEN
IB6 GREEN
IC1 BROWN
IC2 BROWN
ID1 BLUE
IE1 ORANGE
IF1
IF2
IF3 ORANGE
CODE | JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
IB1
IB2 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL)
IB3
IB4
IB5 ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL)
IB6
IC1
IC2 FLOOR NO. 2 WIRE AND COWL WIRE (LEFT KICK PANEL)
ID1 FRONT DOOR LH WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL)
IE1 INSTRUMENT PANEL WIRE AND FLOOR NO. 2 WIRE (LEFT KICK PANEL)
IF1
IF2 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH)
IF3 INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT KICK PANEL)
