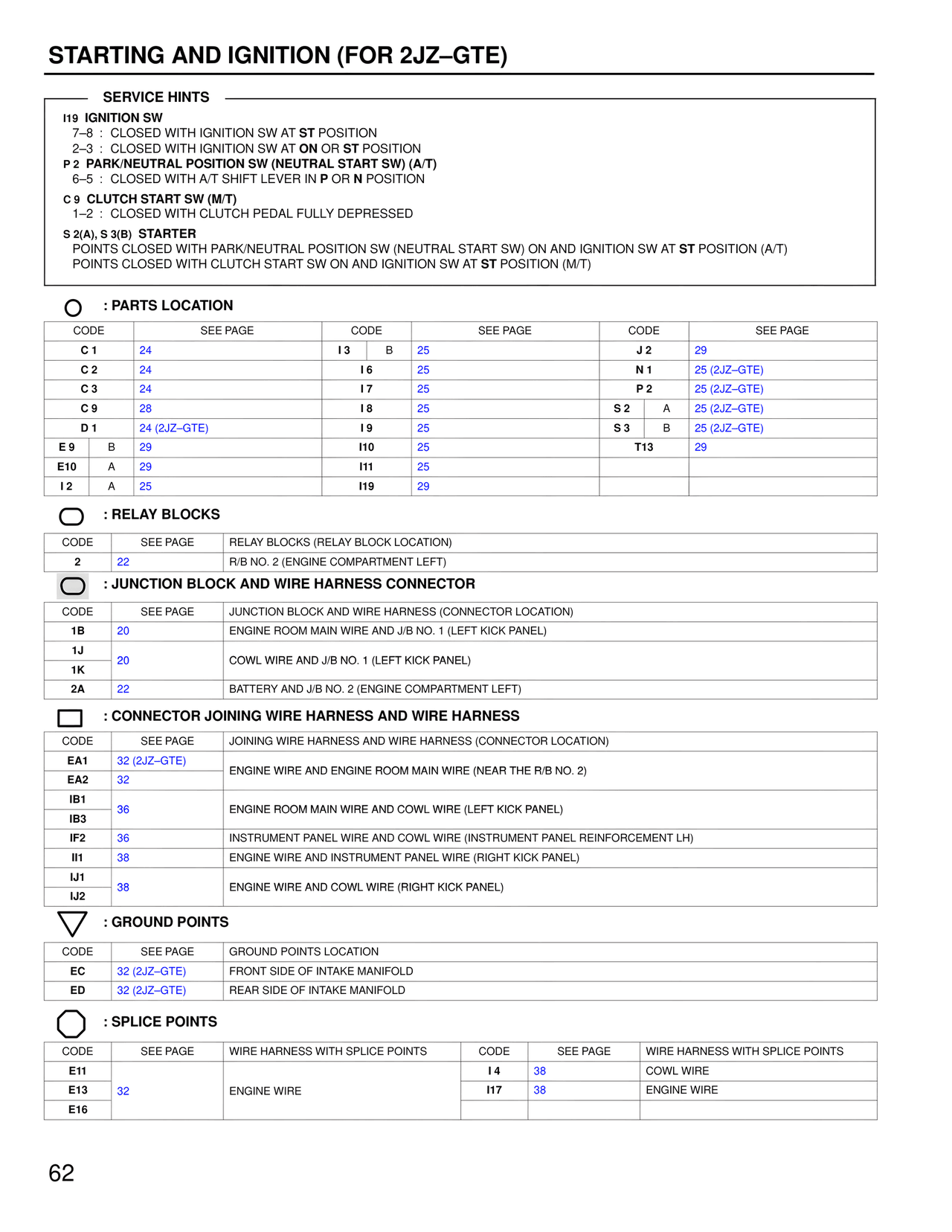

STARTING AND IGNITION (FOR 2JZ–GTE)
SERVICE HINTS
I19 IGNITION SW
7–8 : CLOSED WITH IGNITION SW AT ST POSITION
2–3 : CLOSED WITH IGNITION SW AT ON OR ST POSITION
P 2 PARK/NEUTRAL POSITION SW (NEUTRAL START SW) (A/T)
6–5 : CLOSED WITH A/T SHIFT LEVER IN P OR N POSITION
C 9 CLUTCH START SW (M/T)
1–2 : CLOSED WITH CLUTCH PEDAL FULLY DEPRESSED
S 2(A), S 3(B) STARTER
POINTS CLOSED WITH PARK/NEUTRAL POSITION SW (NEUTRAL START SW) ON AND IGNITION SW AT ST POSITION (A/T)
POINTS CLOSED WITH CLUTCH START SW ON AND IGNITION SW AT ST POSITION (M/T)
: PARTS LOCATION
CODE SEE PAGE
C 1 24
C 2 24
C 3 24
C 9 28
D 1 24 (2JZ–GTE)
E 9 B 29
E10 A 29
I 2 A 25
CODE SEE PAGE
I 3 B 25
I 6 25
I 7 25
I 8 25
I 9 25
I10 25
I11 25
I19 29
CODE SEE PAGE
J 2 29
N 1 25 (2JZ–GTE)
P 2 25 (2JZ–GTE)
S 2 A 25 (2JZ–GTE)
S 3 B 25 (2JZ–GTE)
T13 29
: RELAY BLOCKS
CODE SEE PAGE RELAY BLOCKS (RELAY BLOCK LOCATION)
2 22 R/B NO. 2 (ENGINE COMPARTMENT LEFT)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CODE SEE PAGE JUNCTION BLOCK AND WIRE HARNESS (CONNECTOR LOCATION)
1B 20 ENGINE ROOM MAIN WIRE AND J/B NO. 1 (LEFT KICK PANEL)
1J 20 COWL WIRE AND J/B NO. 1 (LEFT KICK PANEL)
1K
2A 22 BATTERY AND J/B NO. 2 (ENGINE COMPARTMENT LEFT)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CODE SEE PAGE JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)
EA1 32 (2JZ–GTE) ENGINE WIRE AND ENGINE ROOM MAIN WIRE (NEAR THE R/B NO. 2)
EA2 32
IB1 36 ENGINE ROOM MAIN WIRE AND COWL WIRE (LEFT KICK PANEL)
IB3
IF2 36 INSTRUMENT PANEL WIRE AND COWL WIRE (INSTRUMENT PANEL REINFORCEMENT LH)
II1 38 ENGINE WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
IJ1 38 ENGINE WIRE AND COWL WIRE (RIGHT KICK PANEL)
IJ2
: GROUND POINTS
CODE SEE PAGE GROUND POINTS LOCATION
EC 32 (2JZ–GTE) FRONT SIDE OF INTAKE MANIFOLD
ED 32 (2JZ–GTE) REAR SIDE OF INTAKE MANIFOLD
: SPLICE POINTS
CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS
E11 ENGINE WIRE
E13 32
E16
CODE SEE PAGE WIRE HARNESS WITH SPLICE POINTS
I 4 38 COWL WIRE
I17 38 ENGINE WIRE
62
