D–37

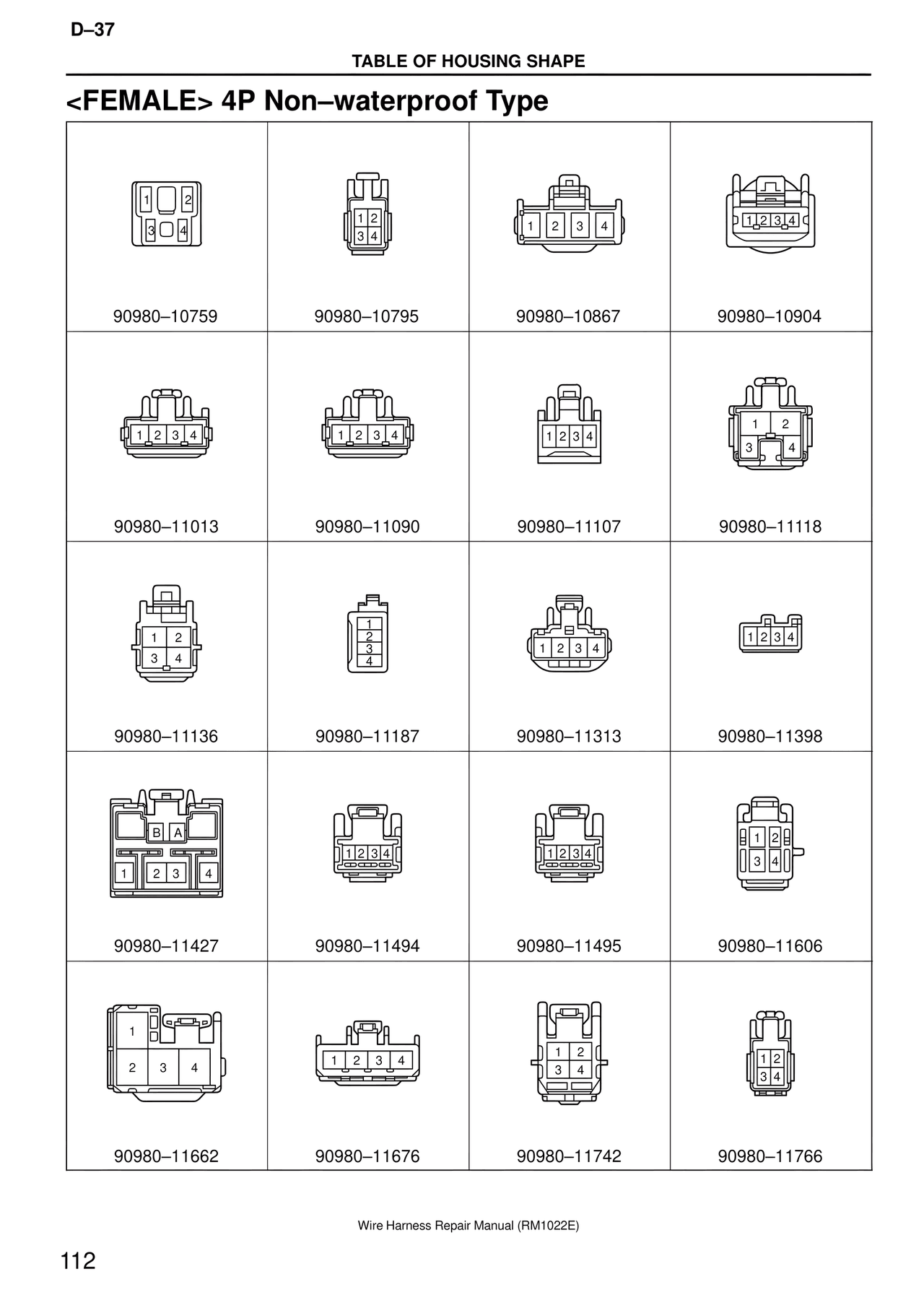

TABLE OF HOUSING SHAPE

<FEMALE> 4P Non–waterproof Type

1  2
3  4
90980–10759

1  2
3  4
90980–10795

1  2  3  4
90980–10867

1  2  3  4
90980–10904

1  2  3  4
90980–11013

1  2  3  4
90980–11090

1  2  3  4
90980–11107

1  2
3  4
90980–11118

1  2
3  4
90980–11136

1
2
3
4
90980–11187

1  2  3  4
90980–11313

1  2  3  4
90980–11398

B  A
1  2  3  4
90980–11427

1  2  3  4
90980–11494

1  2  3  4
90980–11495

1  2
3  4
90980–11606

1
2  3  4
90980–11662

1  2  3  4
90980–11676

1  2
3  4
90980–11742

1  2
3  4
90980–11766

Wire Harness Repair Manual (RM1022E)

112
