D–62

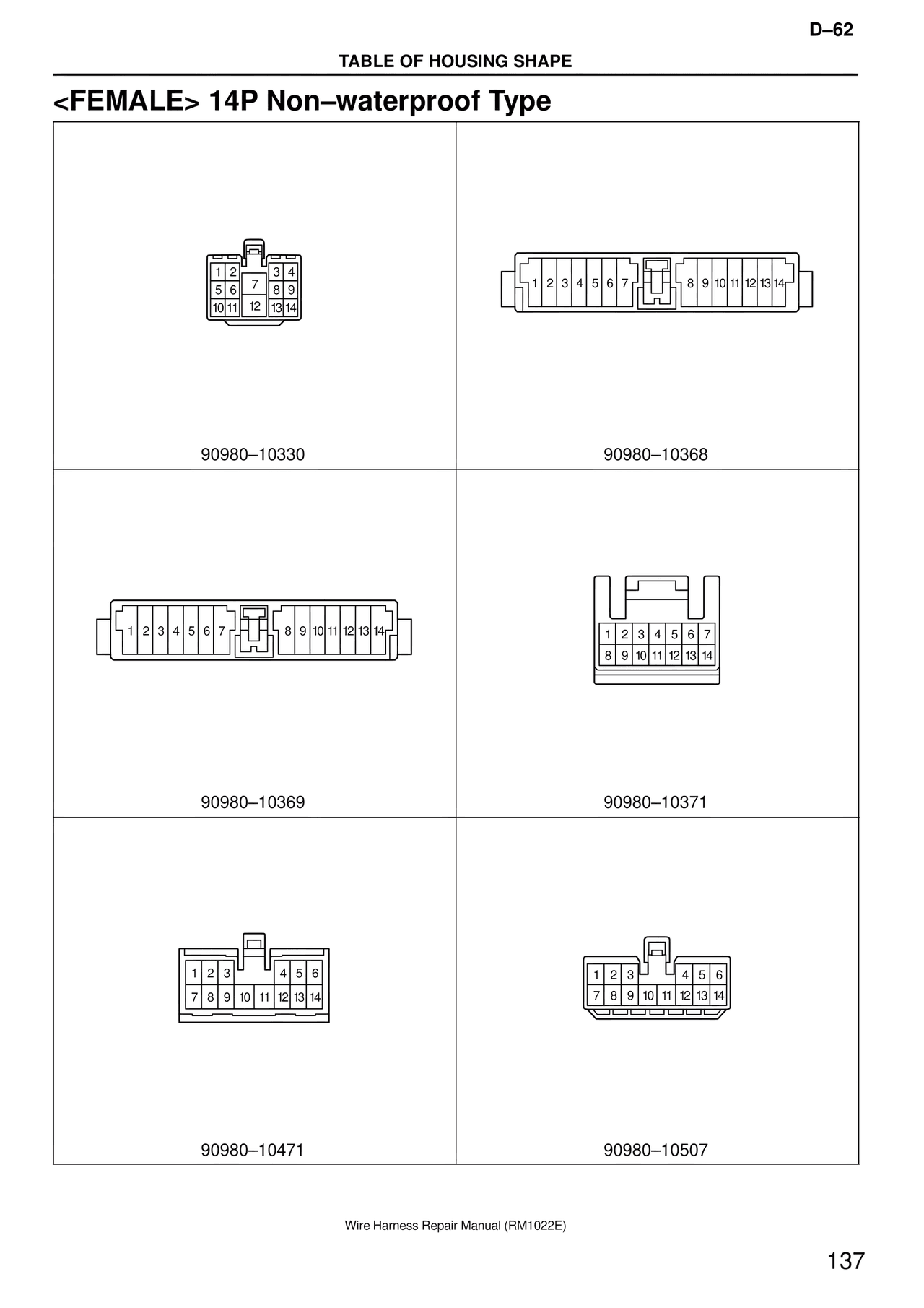

TABLE OF HOUSING SHAPE

<FEMALE> 14P Non–waterproof Type

1  2    3  4
5  6  7  8  9
10 11   12  13 14

90980–10330

1  2  3  4  5  6  7    8  9  10  11  12  13  14

90980–10368

1  2  3  4  5  6  7    8  9  10  11  12  13  14

90980–10369

1  2  3  4  5  6  7
8  9  10  11  12  13  14

90980–10371

1  2  3    4  5  6
7  8  9  10  11  12  13  14

90980–10471

1  2  3    4  5  6
7  8  9  10  11  12  13  14

90980–10507

Wire Harness Repair Manual (RM1022E)

137
