WH/Wire Harness — <female> 14P Non–waterproof Type, page 139

D–64

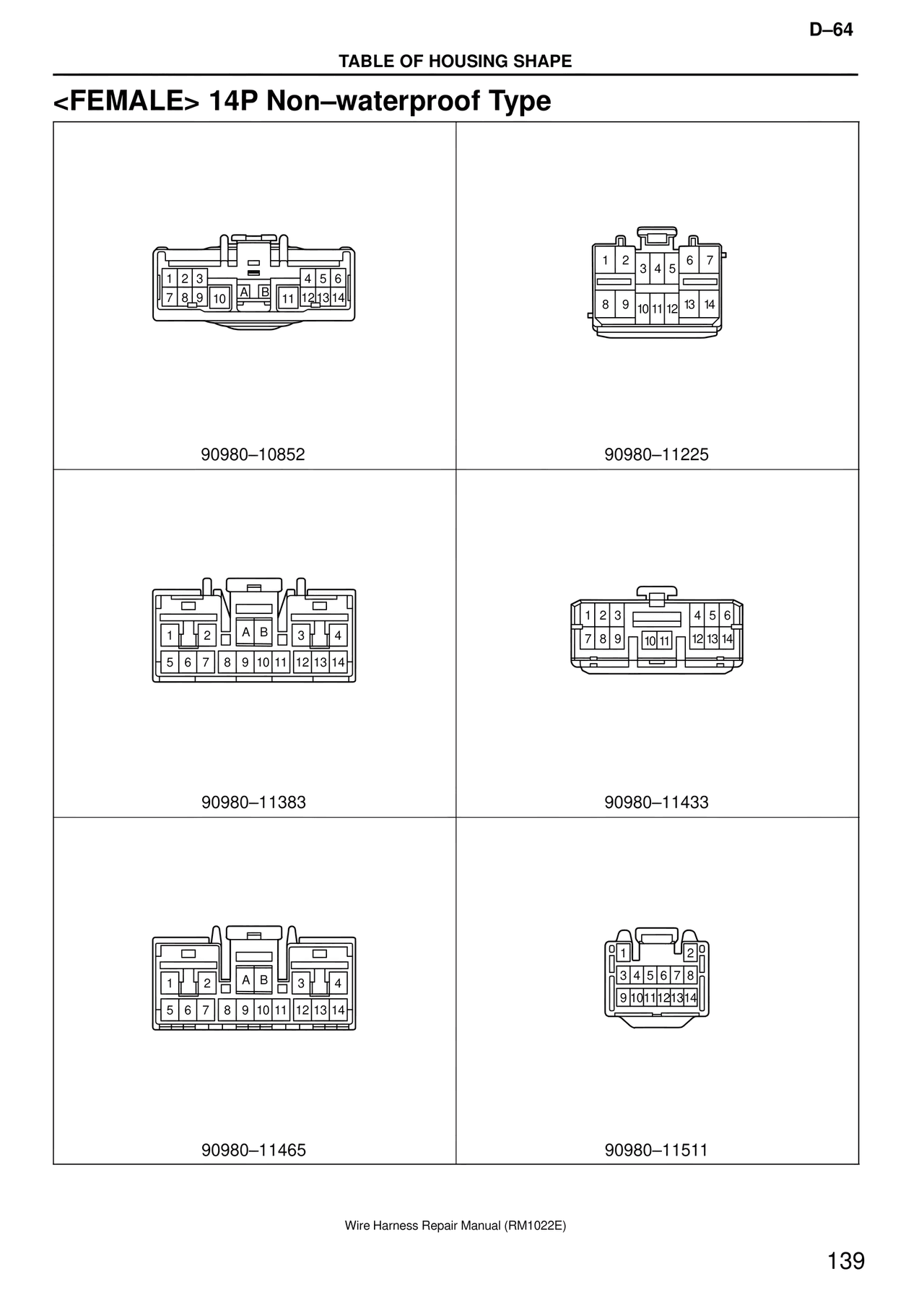

TABLE OF HOUSING SHAPE

<FEMALE> 14P Non–waterproof Type

1 2 3        4 5 6
7 8 9 10  A B  11 12 13 14

90980–10852

1  2   3 4 5   6  7
8  9  10 11 12  13 14

90980–11225

1    2    A B    3    4
5  6  7  8  9 10 11  12 13 14

90980–11383

1 2 3          4 5 6
7 8 9   10 11   12 13 14

90980–11433

1    2    A B    3    4
5  6  7  8  9 10 11  12 13 14

90980–11465

0  1        2 0
3  4  5  6  7  8
9 10 11 12 13 14

90980–11511

Wire Harness Repair Manual (RM1022E)

139
