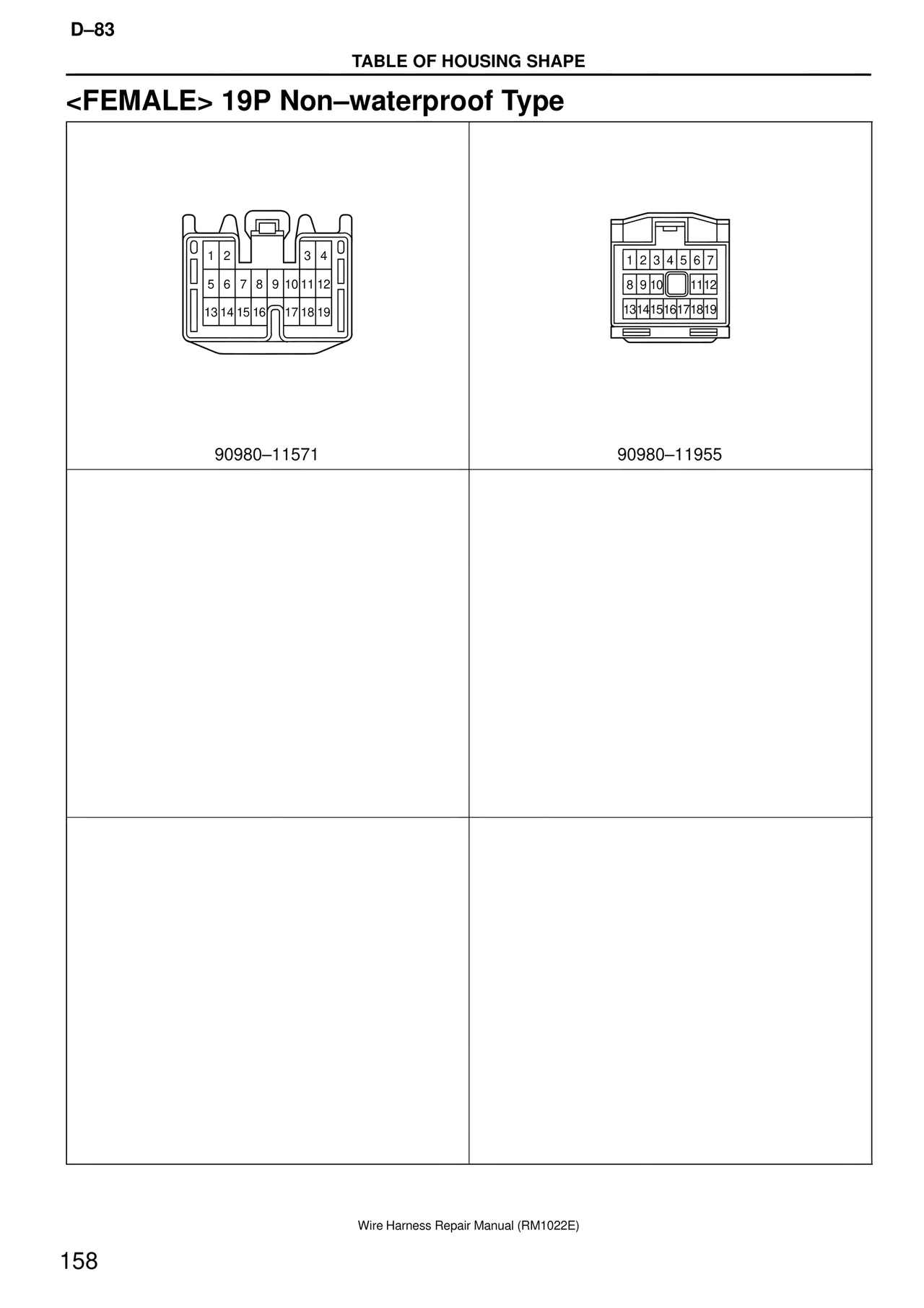

<FEMALE> 19P Non–waterproof Type — MK4 Supra Wire Harness, page 158
100%
D–83 TABLE OF HOUSING SHAPE <FEMALE> 19P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–11571 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 90980–11955 Wire Harness Repair Manual (RM1022E) 158
