B–6

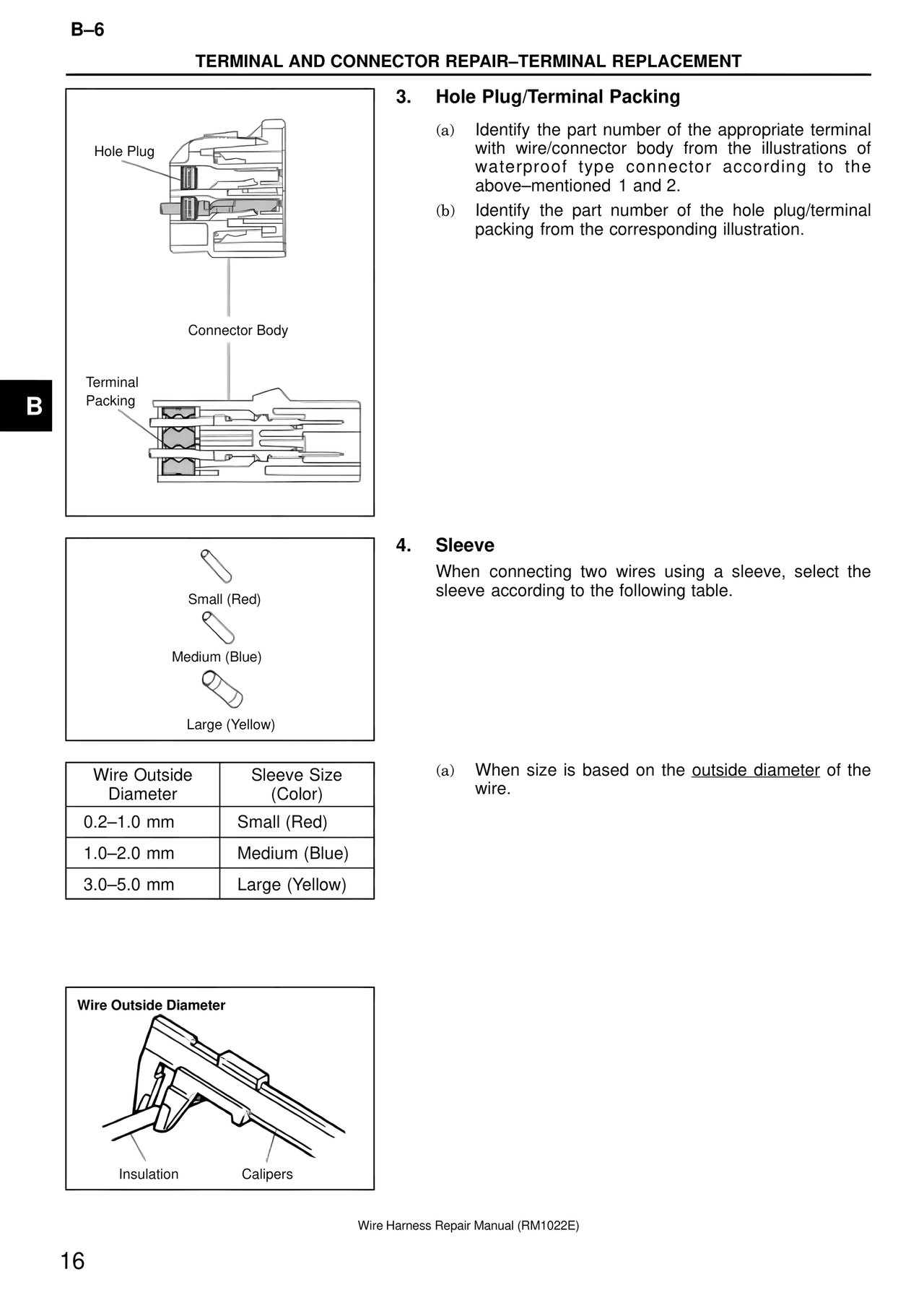

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Hole Plug
Connector Body
Terminal
Packing
3. Hole Plug/Terminal Packing
(a) Identify the part number of the appropriate terminal
with wire/connector body from the illustrations of
waterproof type connector according to the
above–mentioned 1 and 2.
(b) Identify the part number of the hole plug/terminal
packing from the corresponding illustration.
Small (Red)
Medium (Blue)
Large (Yellow)
4. Sleeve
When connecting two wires using a sleeve, select the
sleeve according to the following table.
Wire Outside
Diameter
Sleeve Size
(Color)
0.2–1.0 mm
Small (Red)
1.0–2.0 mm
Medium (Blue)
3.0–5.0 mm
Large (Yellow)
(a) When size is based on the outside diameter of the
wire.
Wire Outside Diameter
Insulation Calipers
Wire Harness Repair Manual (RM1022E)
16
