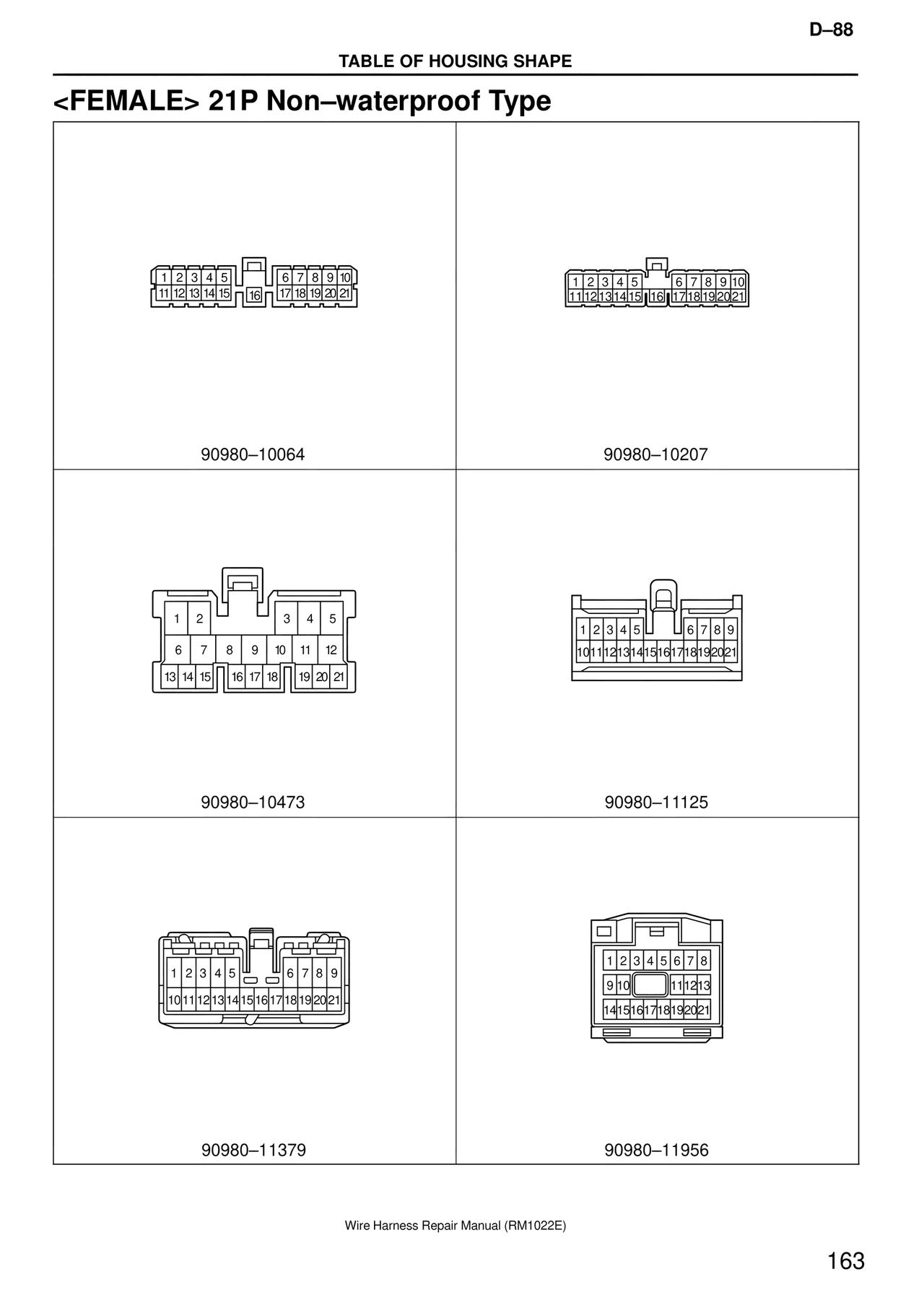

<FEMALE> 21P Non–waterproof Type — MK4 Supra Wire Harness, page 163
100%
D–88 TABLE OF HOUSING SHAPE <FEMALE> 21P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 90980–10064 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 90980–10207 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 90980–10473 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 90980–11125 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 90980–11379 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 90980–11956 Wire Harness Repair Manual (RM1022E) 163
